Vancouver

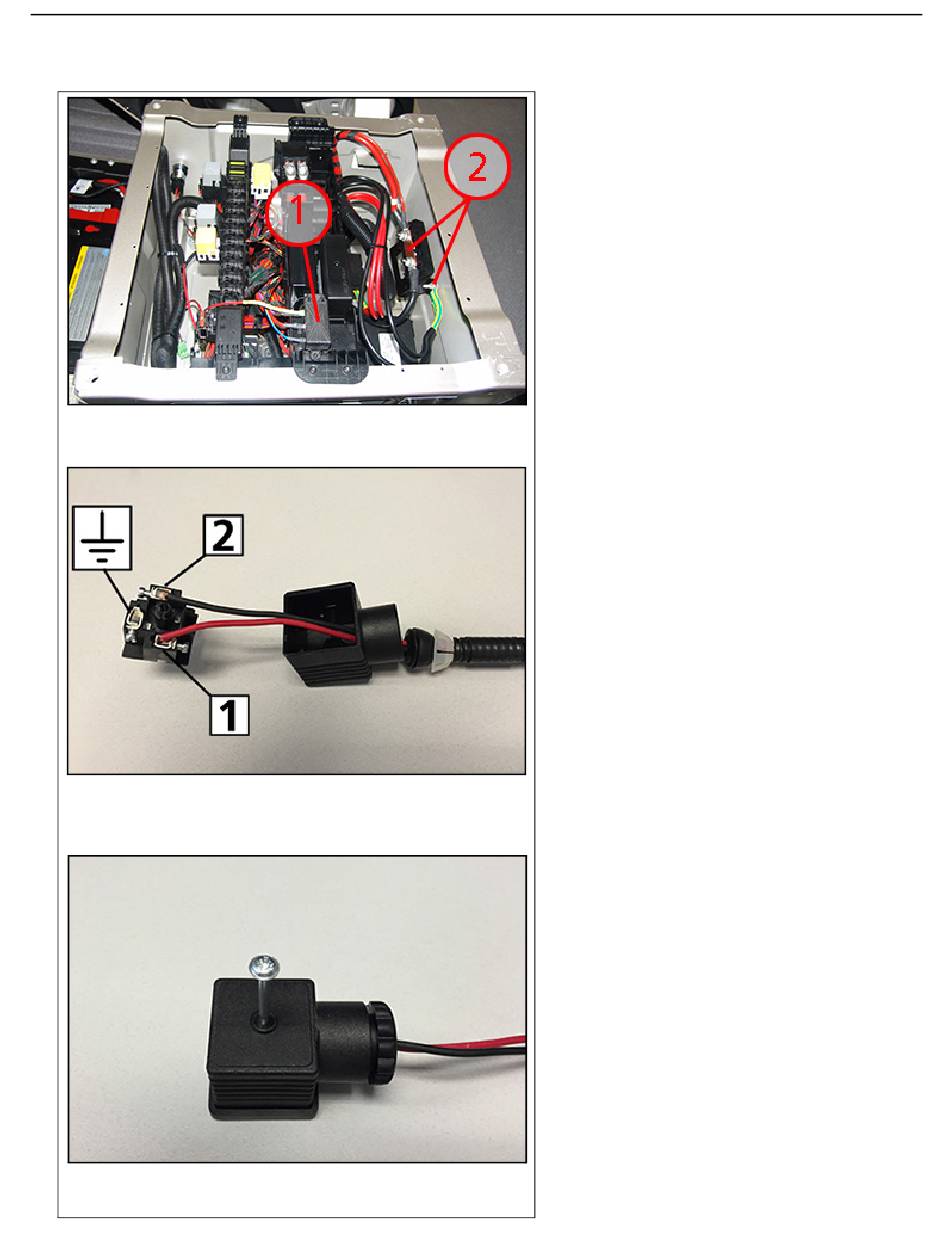

11.Connect the pink wires to an ignition source
[1] using the fuse holder. Secure the fuse
holders (34).
NOTE: The refrigerant valve connector is not
polarity sensitive.
12.Route the refrigerant valve wiring harness to
the refrigerant valve. Remove the screw from
the refrigerant valve connector and remove the
connector plate. After stripping the wires
appropriately, connect the wires to terminals 1
and 2, not the ground terminal. Connect the
refrigerant valve connector.
13. Assemble the coolant valve electrical
connector. Do not install the magnet and
connect the connector at this time.
