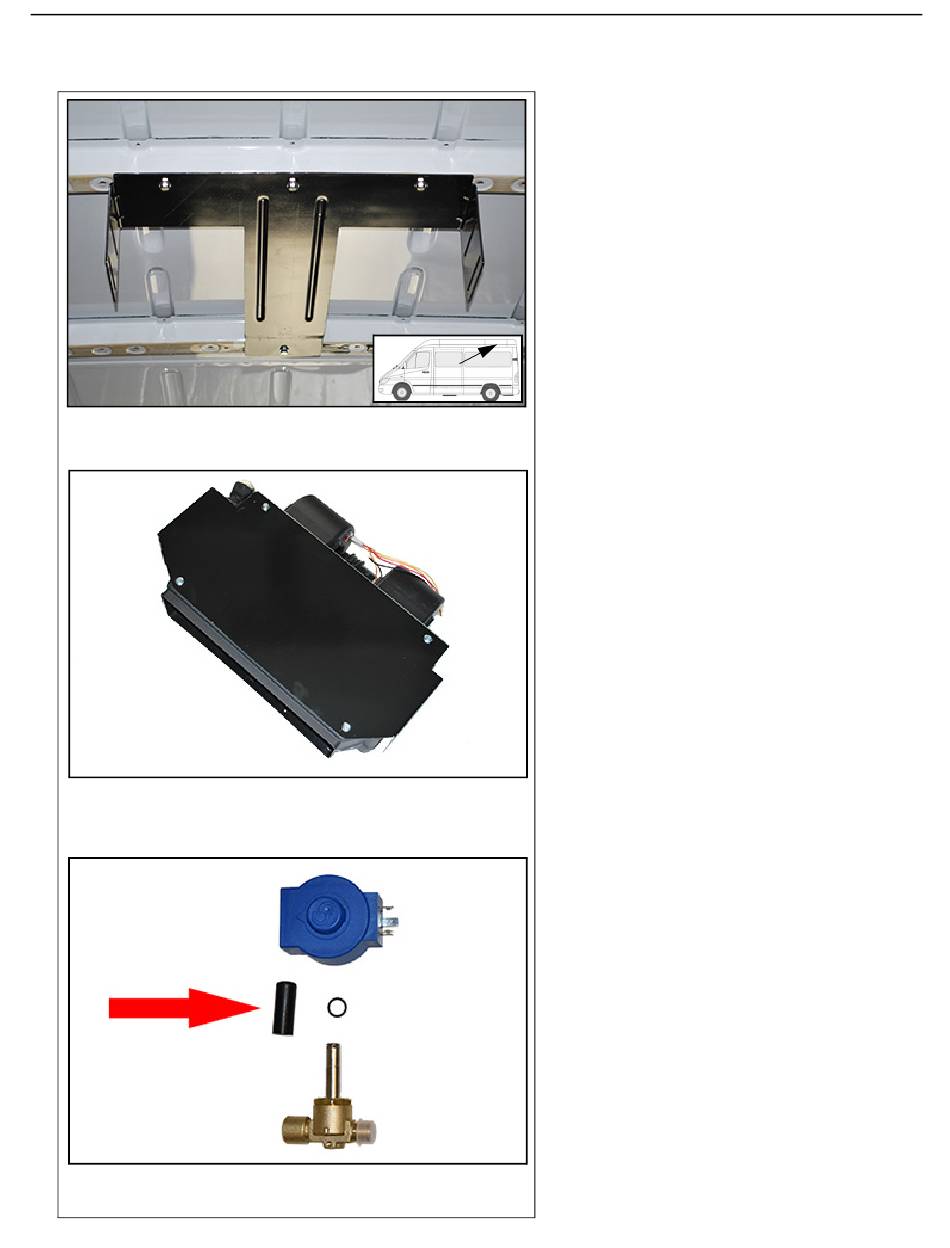

1. Mark and drill the four mounting holes for
the Vancouver mounting bracket (10). Insert
the four rivet nuts (39). Mount the Vancouver
bracket using four bolts and washers (35, 42).
XXX
2. Install the lower bracket (6) to the Vancouver
unit (1) using four M6 bolts (45). Install the
Vancouver assembly to the upper bracket
using eight M6 bolts (45) and eight M6 nuts
(36).
3. Disassemble the refrigerant valve (5). Discard
the black plastic sleeve.
