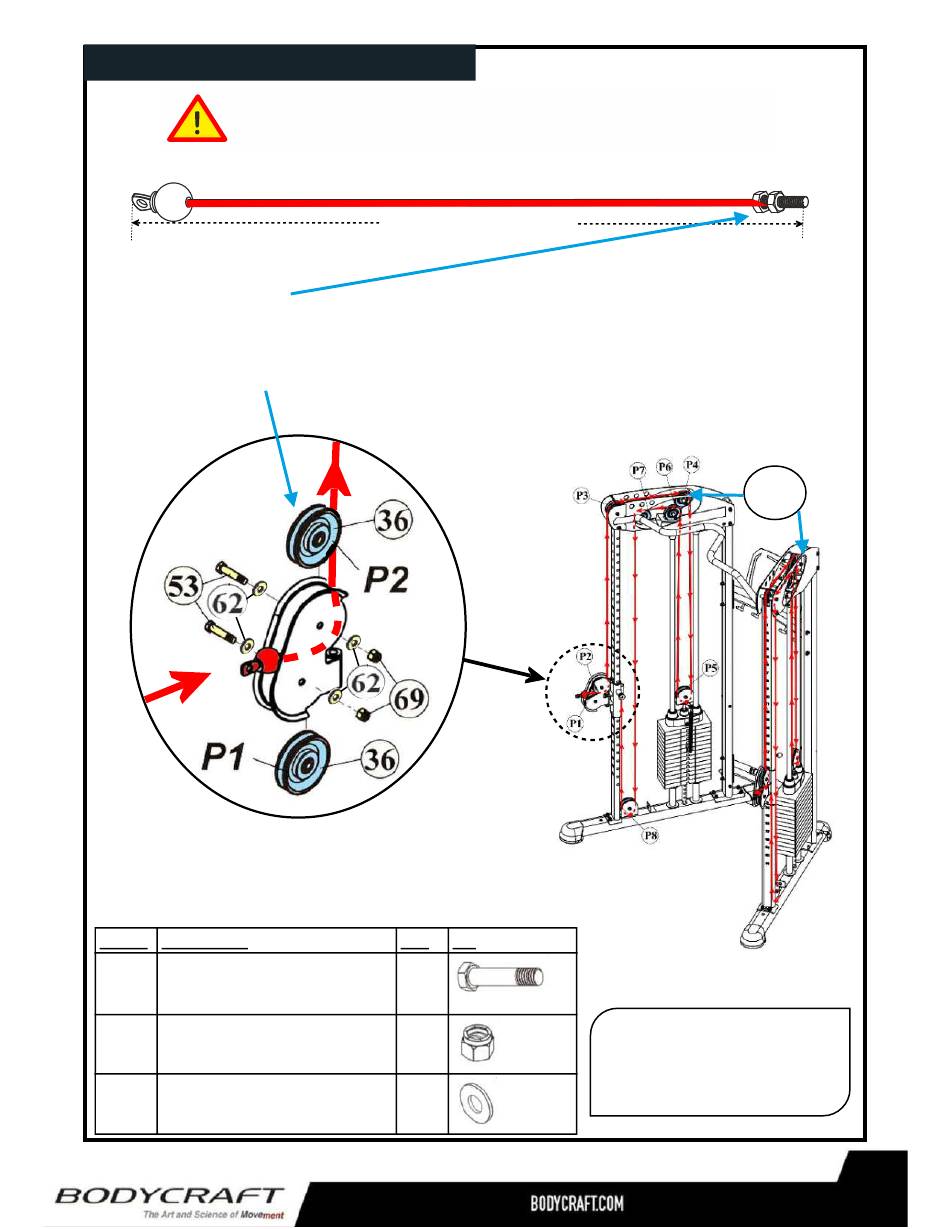

Product Assembly
NOTE: DO NOT tighten bolts until Step # 17
Ball End
a.
Insert the Bolt End of the Cable (27) through Rotating Pulley Holder (17) as seen in Figure
with P1 & P2 below. Then route upward towards P3 on Right Top Frame (6R) for Step #13.
b. Place P1 & P2 Pulleys (36) on top and bottom of Cable (27) securing them with Black Hex
Bolts (53) and
c. Perform the same procedure from a & b to
opposite side.
Hardware used for Step #12
Item # Description
53
3/8" X 2" BLACK HEX BOLT
69
3/8" BLACK NYLON NUT
62
3/8" BLACK WASHER
Cable (27)
7,220 mm (284-1/4")
Black Nylon Nuts (69).
Qty
Pic
1
4
8
24
STEP
Bolt End
Cutout
view
NOTE: Actual color of Cables
(27) are black. Shown in the
assembly steps in RED for
easy viewing.
12
