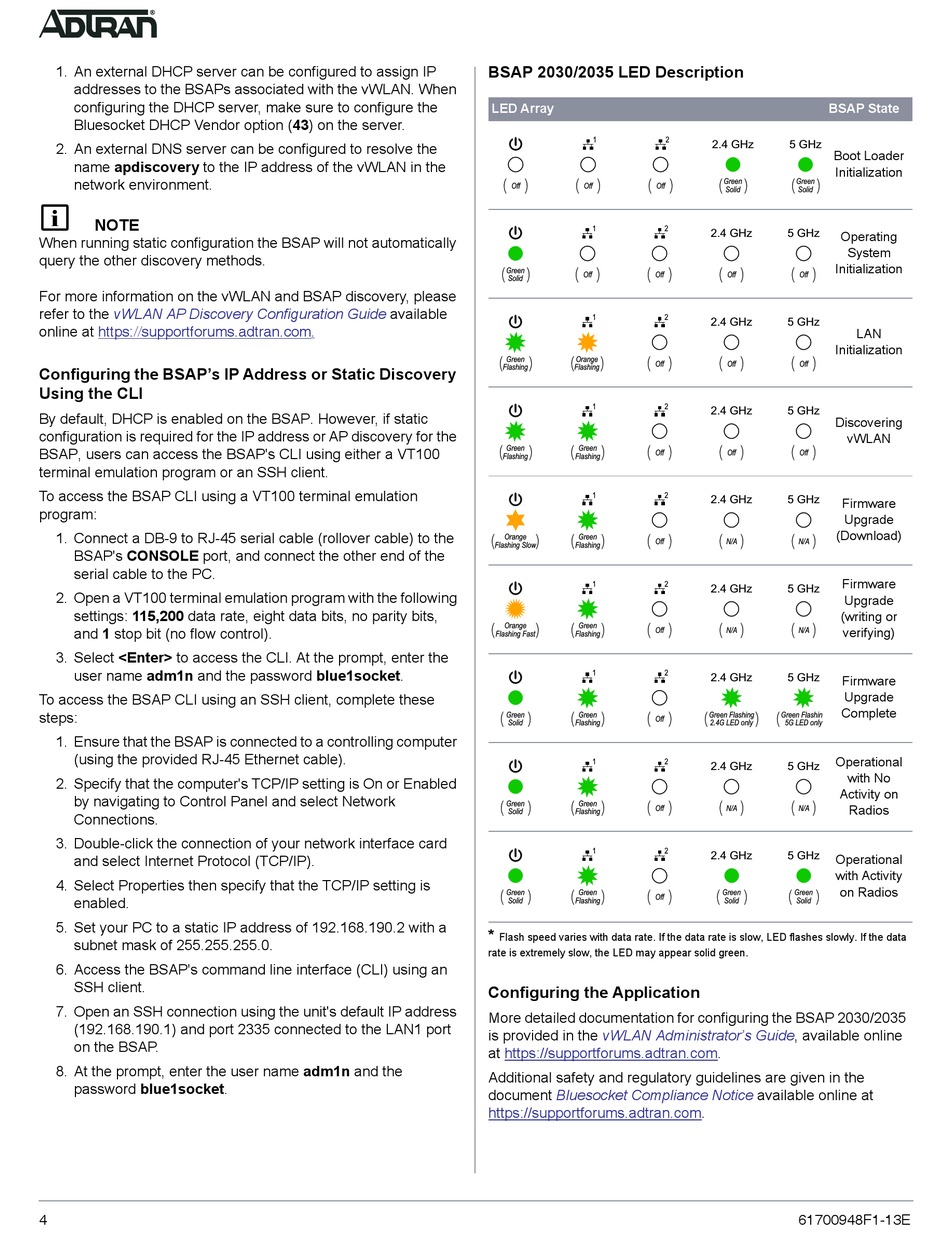

ADTRAN Bluesocket 2030 Quick Start Manual page 4

1. An external DHCP server can be configured to assign IP
addresses to the BSAPs associated with the vWLAN. When
configuring the DHCP server, make sure to configure the
Bluesocket DHCP Vendor option (43) on the server.
2. An external DNS server can be configured to resolve the
name apdiscovery to the IP address of the vWLAN in the
network environment.
g
NOTE
When running static configuration the BSAP will not automatically
query the other discovery methods.
For more information on the vWLAN and BSAP discovery, please
refer to the vWLAN AP Discovery Configuration Guide
https://supportforums.adtran.com
online at
Configuring the BSAP's IP Address or Static Discovery
Using the CLI
By default, DHCP is enabled on the BSAP. However, if static
configuration is required for the IP address or AP discovery for the
BSAP, users can access the BSAP's CLI using either a VT100
terminal emulation program or an SSH client.
To access the BSAP CLI using a VT100 terminal emulation
program:
1. Connect a DB-9 to RJ-45 serial cable (rollover cable) to the
BSAP's CONSOLE port, and connect the other end of the
serial cable to the PC.
2. Open a VT100 terminal emulation program with the following
settings: 115,200 data rate, eight data bits, no parity bits,
and 1 stop bit (no flow control).
3. Select <Enter> to access the CLI. At the prompt, enter the
user name adm1n and the password blue1socket.
To access the BSAP CLI using an SSH client, complete these
steps:
1. Ensure that the BSAP is connected to a controlling computer
(using the provided RJ-45 Ethernet cable).
2. Specify that the computer's TCP/IP setting is On or Enabled
by navigating to Control Panel and select Network
Connections.
3. Double-click the connection of your network interface card
and select Internet Protocol (TCP/IP).
4. Select Properties then specify that the TCP/IP setting is
enabled.
5. Set your PC to a static IP address of 192.168.190.2 with a
subnet mask of 255.255.255.0.
6. Access the BSAP's command line interface (CLI) using an
SSH client.
7. Open an SSH connection using the unit's default IP address
(192.168.190.1) and port 2335 connected to the LAN1 port
on the BSAP.
8. At the prompt, enter the user name adm1n and the
password blue1socket.
4
BSAP 2030/2035 LED Description
available
.
*
rate is extremely slow, the LED may appear solid green.
Configuring the Application
More detailed documentation for configuring the BSAP 2030/2035
is provided in the
at https://supportforums.adtran.com.
Additional safety and regulatory guidelines are given in the
document
https://supportforums.adtran.com.
LED Array
1 2
Off Off Off
1 2
Green
Off Off
Solid
1 2
Green Orange
Off
Flashing Flashing
1 2
Green Green
Off
Flashing Flashing
1 2
Orange Green
Off
Flashing Slow Flashing
1 2
Orange Green
Off
Flashing Fast Flashing
1 2
Green Green
Off
Solid Flashing
1 2
Green Green
Off
Solid Flashing
1 2
Green Green
Off
Solid Flashing
Flash speed varies with data rate. If the data rate is slow, LED flashes slowly. If the data
vWLAN Administrator's
Bluesocket Compliance Notice
BSAP State
2.4 GHz 5 GHz
Boot Loader
Initialization
Green Green
Solid Solid
2.4 GHz 5 GHz
Operating
System
Initialization
Off Off
2.4 GHz 5 GHz
LAN
Initialization
Off Off
2.4 GHz 5 GHz
Discovering
vWLAN
Off Off
2.4 GHz 5 GHz
Firmware
Upgrade
(Download)
N/A N/A
Firmware
2.4 GHz 5 GHz
Upgrade
(writing or
verifying)
N/A N/A
2.4 GHz 5 GHz
Firmware
Upgrade
Complete
Green Flashing Green Flashing
2.4G LED only 5G LED only
Operational
2.4 GHz 5 GHz
with No
Activity on
Radios
N/A N/A
2.4 GHz 5 GHz
Operational
with Activity
on Radios
Green Green
Solid Solid
Guide, available online
available online at
61700948F1-13E
