Kontron ePCI-201 Quick Start Manual

UNPACKING AND SAFETY PRECAUTIONS
Static Electricity
Since static electricity can cause damage to electronic devices, the following precautions should be
taken:
1. Keep the board in its anti-static package, until you are ready to install it.
2. Always touch a grounded surface or wear a grounding wrist strap before removing the board
from its package; this will discharge any static electricity that may have built up in your body.
3. Handle the board by the edges.
Storage Environment
Electronic boards are sensitive devices. Do not handle or store devices near strong electrostatic,
electromagnetic, magnetic or radioactive fields.
Power Supply
Before any installation or setup, ensure that the board is unplugged from power sources or
subsystems.
Unpacking
Follow these recommendations while unpacking:
1. After opening the box, save it as well as the packing material for possible future shipment.
2. Remove the board from its anti-static wrapping and place it on a grounded surface.
3. Inspect the board for damage. If there is any damage or missing items, notify Kontron
immediately.
When unpacking you will find:

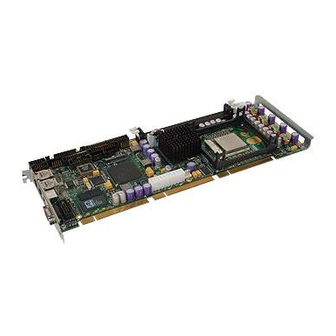

1. One ePCI-201 SBC.
2. One CD-ROM containing drivers *
3. One heat sink.
4. One Quick Reference sheet.
5. Cables listed on the order.
6.
One mezzanine with two USB connectors, one RCA connector and one video (DB15) connector.
Note:
For latest Technical Reference Manual, Quick Reference Sheet, drivers, BIOS and other
documentation, please consult our web site at:
ftp://ftp.kontron.ca/Support
* Note that the Ethernet driver for the 82541ER available on the CD 4.1 is not working
properly. To download the new version, please visit
ftp.kontron.ca/support/
P/N : M8004_INST
http://www.kontron.com
www.kontron.com
Page 1 of 1
READ ME FIRST
or our FTP site at:
or
V 1.0 November 2004
