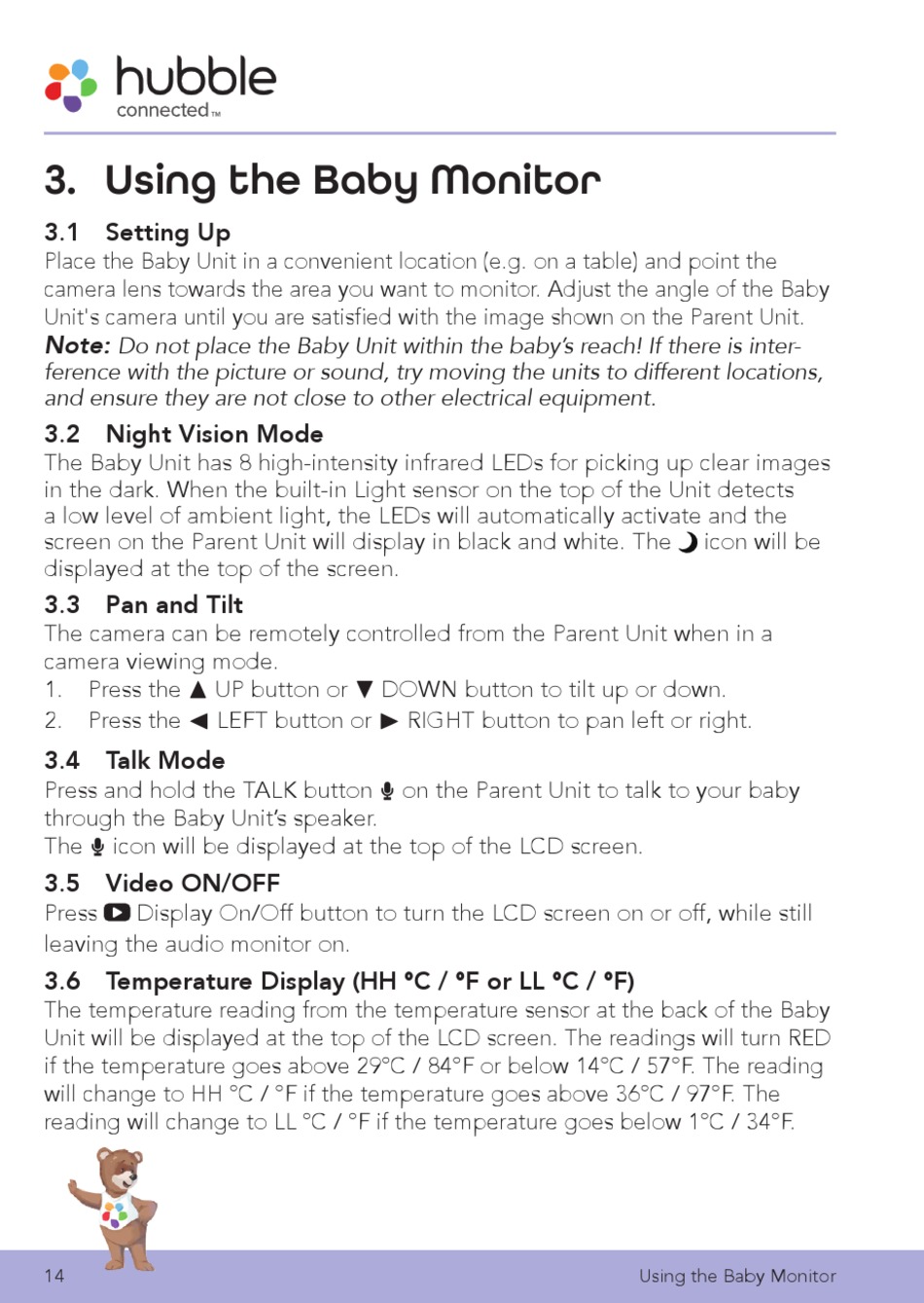

3. Using the Baby Monitor

3.1 Setting Up

Place the Baby Unit in a convenient location (e.g. on a table) and point the
camera lens towards the area you want to monitor. Adjust the angle of the Baby
Unit's camera until you are satisfied with the image shown on the Parent Unit.
Note:
Do not place the Baby Unit within the baby's reach! If there is inter-
ference with the picture or sound, try moving the units to different locations,
and ensure they are not close to other electrical equipment.

3.2 Night Vision Mode

The Baby Unit has 8 high-intensity infrared LEDs for picking up clear images
in the dark. When the built-in Light sensor on the top of the Unit detects
a low level of ambient light, the LEDs will automatically activate and the
screen on the Parent Unit will display in black and white. The
displayed at the top of the screen.

3.3 Pan and Tilt

The camera can be remotely controlled from the Parent Unit when in a
camera viewing mode.
1. Press the + UP button or - DOWN button to tilt up or down.
2. Press the < LEFT button or > RIGHT button to pan left or right.

3.4 Talk Mode

Press and hold the TALK button T on the Parent Unit to talk to your baby
through the Baby Unit's speaker.
The T icon will be displayed at the top of the LCD screen.

3.5 Video ON/OFF

Press Display On/Off button to turn the LCD screen on or off, while still
leaving the audio monitor on.
3.6 Temperature Display (HH °C / °F or LL °C / °F)
The temperature reading from the temperature sensor at the back of the Baby
Unit will be displayed at the top of the LCD screen. The readings will turn RED
if the temperature goes above 29°C / 84°F or below 14°C / 57°F. The reading
will change to HH °C / °F if the temperature goes above 36°C / 97°F. The
reading will change to LL °C / °F if the temperature goes below 1°C / 34°F.
14
icon will be
Using the Baby Monitor
