Hubble Nursery View Glow User Manual

2.8" video baby monitor with night light
Hide thumbs

Advertisement

Quick Links

Download this manual

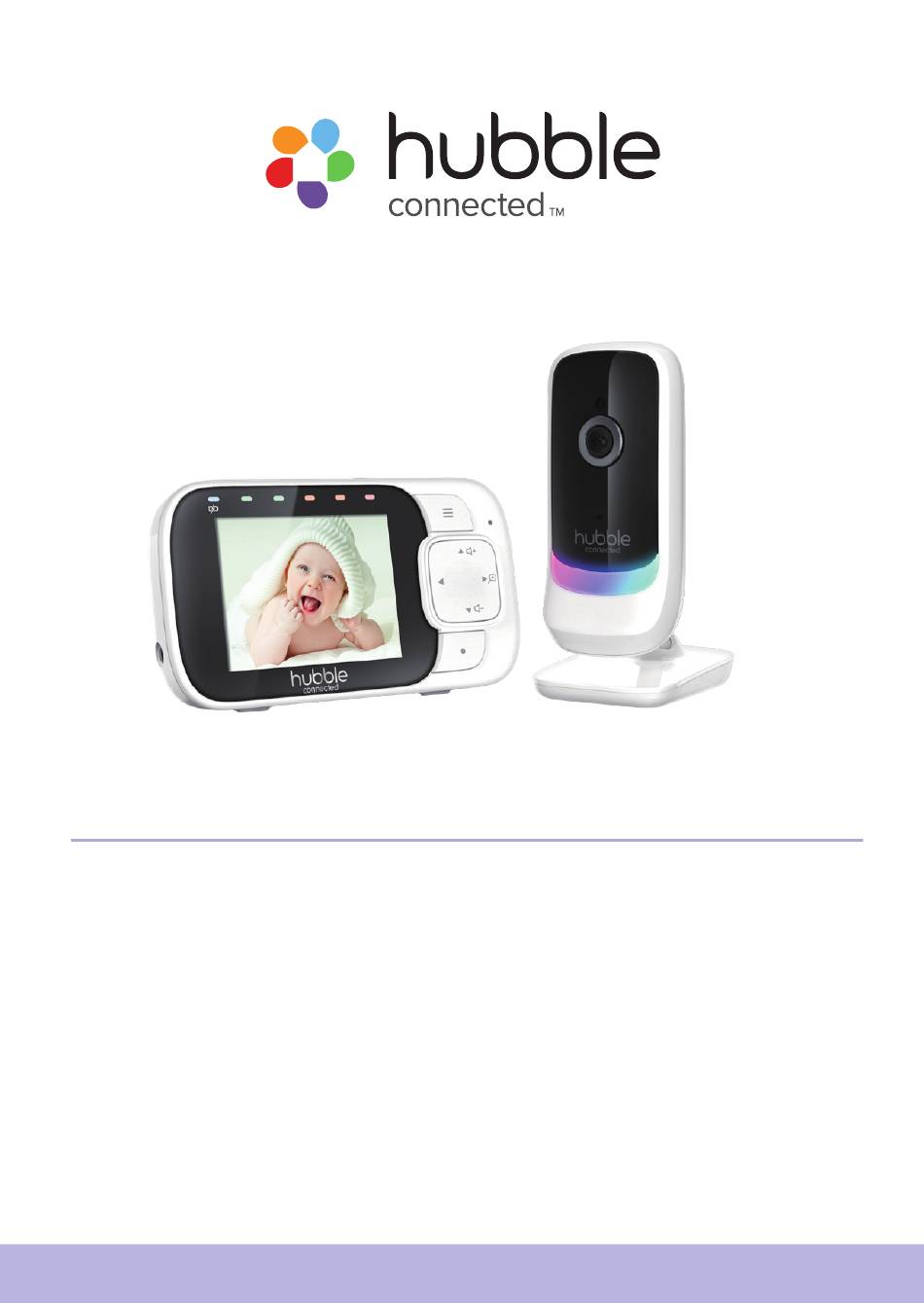

USER'S GUIDE
2.8" Video Baby Monitor with Night Light
Nursery View Glow
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Nursery View Glow and is the answer not in the manual?

Questions and answers

Related Manuals for Hubble Nursery View Glow

Summary of Contents for Hubble Nursery View Glow

  • Page 1 USER’S GUIDE 2.8" Video Baby Monitor with Night Light Nursery View Glow The features described in this user’s guide are subject to modifications without prior notice.

  • Page 2: Got Everything

    Please retain your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
  • Page 3 Overview of Your Baby Unit 1. Photo Sensor (Night Vision 5. High Sense Microphone Mode) 6. Night Light 2. Camera Lens 7. PAIR button 3. Infrared LEDs (x8, for night 8. Power Socket vision) 9. Temperature Sensor 4. Power/Link indicatior Important guidelines for installing your Baby Monitor •...

  • Page 4: Overview Of The Parent Unit

    Overview of the Parent Unit Display (LCD screen) DOWN / Volume Down 2. Charging LED Press to decrease the speaker volume. While in the menu, press to scroll Red when mains power connected. down. Off when the Parent Unit battery is While viewing a zoomed image, press fully charge.
  • Page 5 Overview of the Parent Unit Signal Level (4 Levels) Night Vision Mode (Video also changes to Black/White). Indicates the screen off timer is set. Volume Level Control (5 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X). Night Light LCD Brightness Level Control (5 Levels).

  • Page 6: Table Of Contents

    Table of contents 1. Safety Instructions ..............7 2. Getting Started ................ 10 2.1 Connecting the power supply for the Baby Unit ......10 2.2 Installing battery and connecting Parent Unit to power ....10 2.3 Connecting the Power Supply for the Parent Unit ......11 2.4 Desktop Stand of the Parent Unit ...........12 3.

  • Page 7: Safety Instructions

    1. Safety Instructions WARNING: STRANGULATION HAZARD - Keep the unit and adapter cord more than 1 metre from the cot and out of the baby’s reach. NEVER place Baby Unit or cords within the cot. Secure the cords more than 1 metre away from the baby’s reach.
  • Page 8 BABY UNIT SET UP & USE: • Determine a location for the BABY UNIT that will provide the best view of your baby in his/her cot. • Place the BABY UNIT on a flat surface, such as a dresser, bureau, or shelf or mount the Unit to a wall securely using the keyhole slots under the stand.
  • Page 9 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Only insert a battery pack of the same type. • Do not touch the plug contacts with sharp or metal objects. •...

  • Page 10: Getting Started

    2. Getting Started Connecting the power supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to mains power.

  • Page 11: Connecting The Power Supply For The Parent Unit

    • A rechargeable battery pack (Ni-MH, 800mAh) is supplied and should be installed and charged, so that the Parent Unit can be moved without losing the link and picture from the Baby Unit(s). We recommend charging the parent unit for at least 16 hours before first use, and when the Parent Unit indicates the battery is low.

  • Page 12: Desktop Stand Of The Parent Unit

    Desktop Stand of the Parent Unit • The parent unit comes with a desktop stand attached to the back of the parent unit. • To place the parent unit on a desk, simply pull out the stand, as shown. Note: Place the parent unit on a flat, even surface.

  • Page 13: Using The Baby Monitor

    3. Using the Baby Monitor Please read these instructions carefully, and be aware that this baby monitor is only intended as an aid. It is not a substitute for responsible, correct parental supervision. Note: Do not place the Baby Unit within the baby’s reach! If there is interference with the picture or sound, try moving the units to different locations, and ensure they are not close to other electrical equipment.

  • Page 14: Adjust The Speaker Volume For Parent Unit

    Adjust the speaker volume for Parent Unit You can adjust the speaker volume from Volume 1 to Volume 5, or turn it off. Press on the Parent Unit when it is in camera viewing mode. When the speaker volume is set to off, the screen displays Zoom You can zoom in or out while viewing the image from Baby Unit.

  • Page 15: Adjust The Lcd Brightness Of The Parent Unit

    Adjust the LCD brightness of the Parent Unit You can adjust the brightness of the Parent Unit screen from Level 1 to Level 5. Press when the Parent Unit is in camera viewing mode. displayed and press button. Press to adjust the brightness. Press button to confirm your selection.

  • Page 16: Set The Screen Off Time Of The Parent Unit

    Temperature Alert -Turn the temperature alert (On) , the Parent Unit will beep and display Temperature High or Temperature when the temperature at the Baby Unit is detected above or below the maximum or minimum temperature limits you set. Press the to select your setting and confirm by pressing the button.

  • Page 17: Delete A Baby Unit

    Press to choose a desired Baby Unit number, then press button. The pairing mode starts. Turn on the new Baby Unit, and then immediately press and hold Pair button until the Power/Link indicator turns on. Note: If you choose an occupied Baby Unit slot, the new Baby Unit will replace the existing Baby Unit.

  • Page 18: Disposal Of The Device (Environment)

    4. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.

  • Page 19: Cleaning

    5. Cleaning Clean the Baby Monitor with a slightly damp cloth or with an anti-static cloth. Never use cleaning agents or abrasive solvents. Cleaning and care • Do not clean any part of the product with thinners or other solvents and chemicals –...

  • Page 20: Troubleshooting

    6. Troubleshooting Power Indicator on the Parent Unit does not come on • Check whether the Parent Unit is powered on. • Check whether the battery pack supplied is correctly installed and that they are not drained. • Recharge the Parent Unit by connecting it to the power supply. Power/Link Indicator on the Baby Unit flashes •...
  • Page 21 Cannot hear sound or baby crying from the Parent Unit • The volume level in the Parent Unit may be set too low. Increase the volume level of the Parent Unit. Refer to section 3.4 for volume level settings. • The Parent Unit and the monitoring Baby Unit may be out of range with each other.

  • Page 22: General Information

    • Damage caused by or resulting from contact with foreign substances, including, but not limited, to liquid, water, rain, humidity, perspiration, sand, dirt, and/or food; • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment;...
  • Page 23 DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST HUBBLE AND Hubble Smart Nursery. IN NO EVENT SHALL HUBBLE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND HUBBLE AND Hubble Smart Nursery’s TOTAL LIABILITY...
  • Page 24 What will HUBBLE do? HUBBLE or its authorized distributor at its sole discretion will, at no charge, repair or replace any Products or Accessories that do not conform to this Warranty. In the event that replacement is necessary to remedy a defect...
  • Page 25 HUBBLE or representations made by any agent, employee or staff of HUBBLE, that may have been made in connection with your purchase of any Product and/or Accessory. UKCA DECLARATION The product is in conformity with the essential requirements of Article 3.1 (a)

  • Page 26: Technical Specifications

    8. Technical Specifications Baby Unit Frequency 2400 MHz to 2483.5 MHz Operating 0ºC - 40ºC temperature Image sensor Colour CMOS 0.3M Pixels Maximum RF Power 20dBm Power Adapater Input 100-240VAC, 50/60Hz, 150mA Output DC5V, 600mA WARNING Use only with supplied power supply. Technical Specifications...

  • Page 27: Parent Unit

    Parent Unit Frequency 2400 MHz to 2483.5 MHz Operating 0ºC - 40ºC temperature Display 2.8” diagonal TFT LCD Maximum RF Power 20dBm Brightness control 5 steps Power Adapter Input 100-240VAC, 50/60Hz, 150mA Output DC5V, 600mAh WARNING Use only with provided power supply. Battery rating GP80AAAHC3BMXZ (GPI) or JHAAA800P3H (JUSTHIGH)
  • Page 28 Manufactured, distributed and sold by Hubble Baby (HK) Limited. All rights reserved. Printed in China UK_EN Version 2.0...
