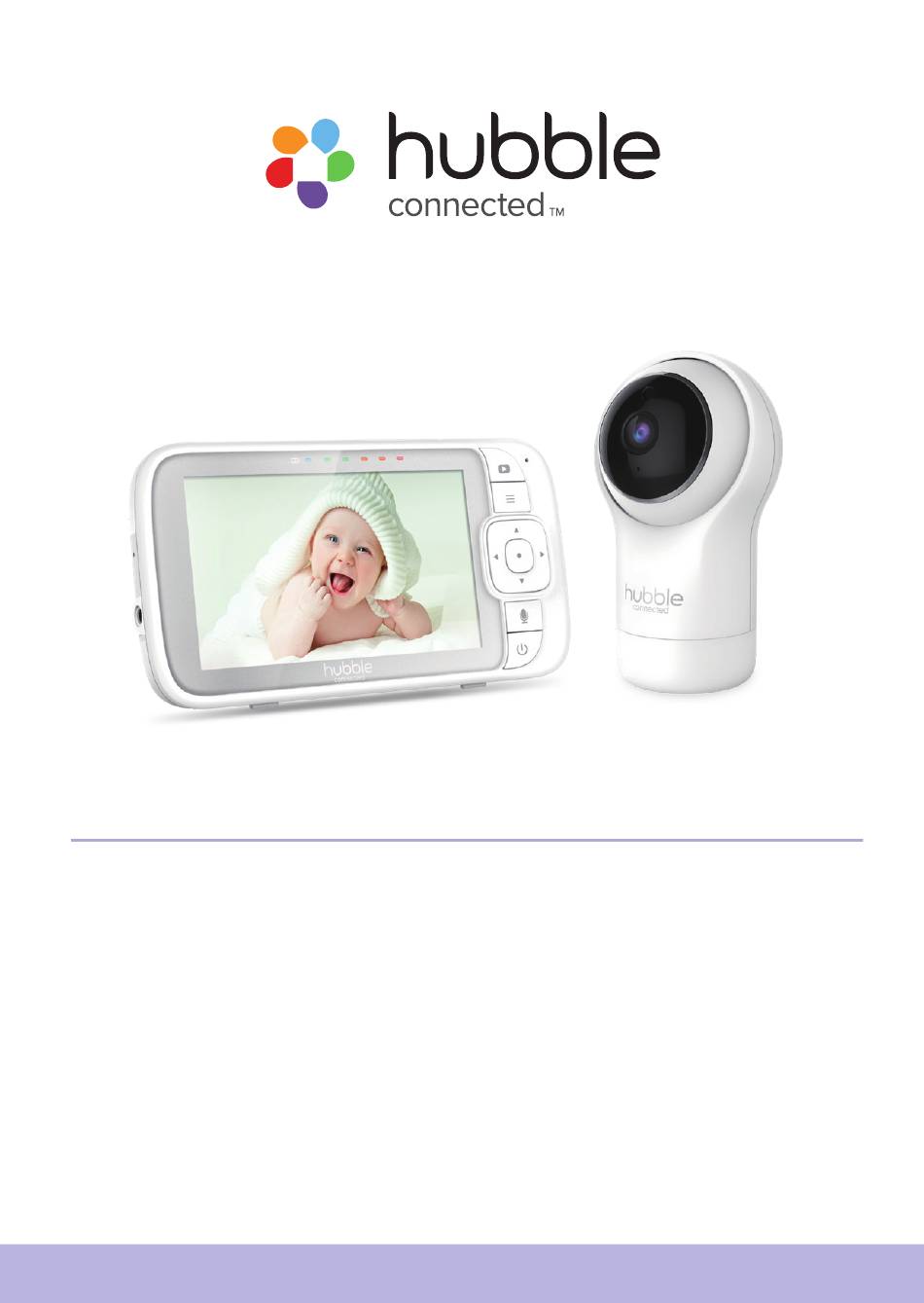

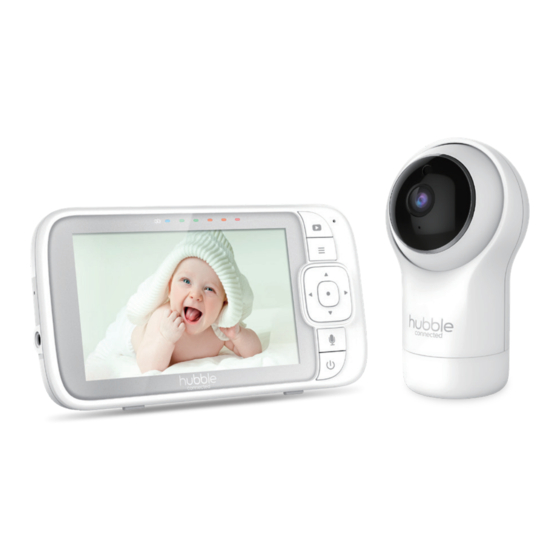

- Page 1 USER’S GUIDE 5" Video Baby Monitor Nursery View Pro, Nursery View Pro Twin The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Parent Unit 1. Display (LCD screen) 8. Microphone Charging LED 9. MENU button RED when mains power Press to open / close the Menu connected. options. 3. Parent Unit ON/OFF LED 10. Navigation button + - < > (Green) Move Up/Down/Right/Left menu 4.
- Page 4 Parent Unit menu icons Signal Level (4 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X).
- Page 5 Overview of Your Baby Unit Light Sensor Power Socket Infrared LEDs (x8, for night vision) Speaker Camera Lens PAIR button High Sensitivity Microphone Screw mounting hole Power/Link indicatior 10. Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor •...
-
Page 6: Table Of Contents
Table of contents 1. Safety Instructions ................8 2. Getting Started ................... 11 2.1 Connecting the Power Supply for the Baby Unit ......11 2.2 Connecting the Power Supply of the Parent Unit ......11 2.3 Desktop Stand of the Parent Unit ...........12 2.4 Registration (Pairing) ................13 3. - Page 7 4.6 Temperature ..................17 4.7 Power Saving mode .................18 4.8 View multiple cameras on screen ............18 5. Disposal of the Device (environment) ..........19 6. Cleaning ....................19 7. Help ......................20 8. General Information ................22 9. Technical Specifications ..............26 Table of contents...
-
Page 8: Safety Instructions
1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED in cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adapters. Only use the AC Adapters provided. Safety Instructions... - Page 9 • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit with Hubble Grip (Not Included). • NEVER place the Baby Unit or cords within the crib.
- Page 10 • Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack. • Do not touch the plug contacts with sharp or metal objects. • Connect the power adapters to easily accessible electrical sockets. Caution: There is a risk of explosion if the battery is replaced by an incorrect type.
-
Page 11: Getting Started
2. Getting Started 2.1 Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adapter into the DC socket on the back of the Baby Unit. • Connect the other end of the power adapter to a suitable electrical outlet. -
Page 12: Desktop Stand Of The Parent Unit
Note: When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a color image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing the Baby Unit is in Night Vision mode. -
Page 13: Registration (Pairing)
2.4 Registration (Pairing) The Baby Unit is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: Press the button and the menu bar will pop up. -
Page 14: Using The Baby Monitor
3. Using the Baby Monitor 3.1 Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. Note: Do not place the Baby Unit within the baby’s reach! If there is inter- ference with the picture or sound, try moving the units to different locations,... -
Page 15: Parent Unit Menu Options
4. Parent Unit Menu Options 4.1 Volume Press the + or - button to adjust the volume level. icon will pop up and you can select the desired volume from level 0~8. (The default volume level setting is level 4, and level 0 is OFF.) 4.2 Brightness Press the button and the menu bar will pop up. -
Page 16: Camera Control
4.5 Camera Control 4.5.1 Add (pair) a camera Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the - (delete) / + (add) / (view) / (scan) menu will pop up. -
Page 17: Delete A Camera
4.5.3 Delete a camera Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted, and the - (delete) / + (add) / (view) / (scan) menu will pop up. Press the + UP button or - DOWN button to select - (delete), and press the button to confirm. -
Page 18: Power Saving Mode
4.7 Power Saving mode Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until V is highlighted. Press the + UP button or - DOWN button to select auto video off after 5 mins, 15 mins or 30 mins (if operating on batteries only). -
Page 19: Disposal Of The Device (Environment)
5. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this. -
Page 20: Help
7. Help Display No display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON. - Page 21 • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/mobile telephone. Move the Baby Unit or Parent Unit 5 feet away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™...
-
Page 22: General Information
Online Product Registration: https://hubbleconnected.com/apps/product-registration Consumer Products and Accessories Limited Warranty (“Warranty”) Thank you for purchasing this Hubble Smart Nursery branded product manufactured under license by Binatone Electronics International LTD (“BINATONE”). What Does this Limited Warranty Cover? Subject to the items listed below in the section “What is not Covered”... - Page 23 • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment; • Damage caused by or resulting from modifications, alterations, tampering, improper installation, or repairs by someone other than Hubble connected, BINATONE or their authorized representatives;...
- Page 24 REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS OF INFORMATION OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES. ALL DISCLAIMERS, LIMITATIONS OF LIABILITY AND MODIFICAITONS OF WARRANTIES STILL APPLY EVEN IF THE LIMITED REMEDY OF REPAIR AND REPLACEMENT FAILS OF ITS ESSENTIAL PURPOSE.
- Page 25 showing the serial number of the Product; (d) a written description of the problem; and, (e) your name, address, email address and telephone number. These terms and conditions constitute the complete warranty agreement between you and BINATONE regarding the Products or Accessories purchased by you, and supersede any prior agreement or representations, including representations made in any literature publications or promotional materials issued by BINATONE or representations made by any agent,...
-
Page 26: Technical Specifications
9. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 0.3M Pixels IR LED 8 pcs Operating F - 104 Temperature Power Adapter Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1000mA Technical Specifications... - Page 27 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 5” diagonal LCD Brightness 8 steps Control Volume Control 8 steps Operating F - 104 Temperature Power Adapter: Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1000mA WARNING Use only with provided power supply. Battery (built-in) TMB i9300 3.8V, 2100mAh Lithium-Ion, re-chargeable...
- Page 28 Manufactured, distributed and sold by Hubble Baby(HK) Limited Hubble Connected and the logo are trademarks or registered trademarks of Binatone Electronics International LTD. All rights reserved. US_EN Version 1.0 Printed in China...
