Hubble Nursery View Pro User Manual page 3

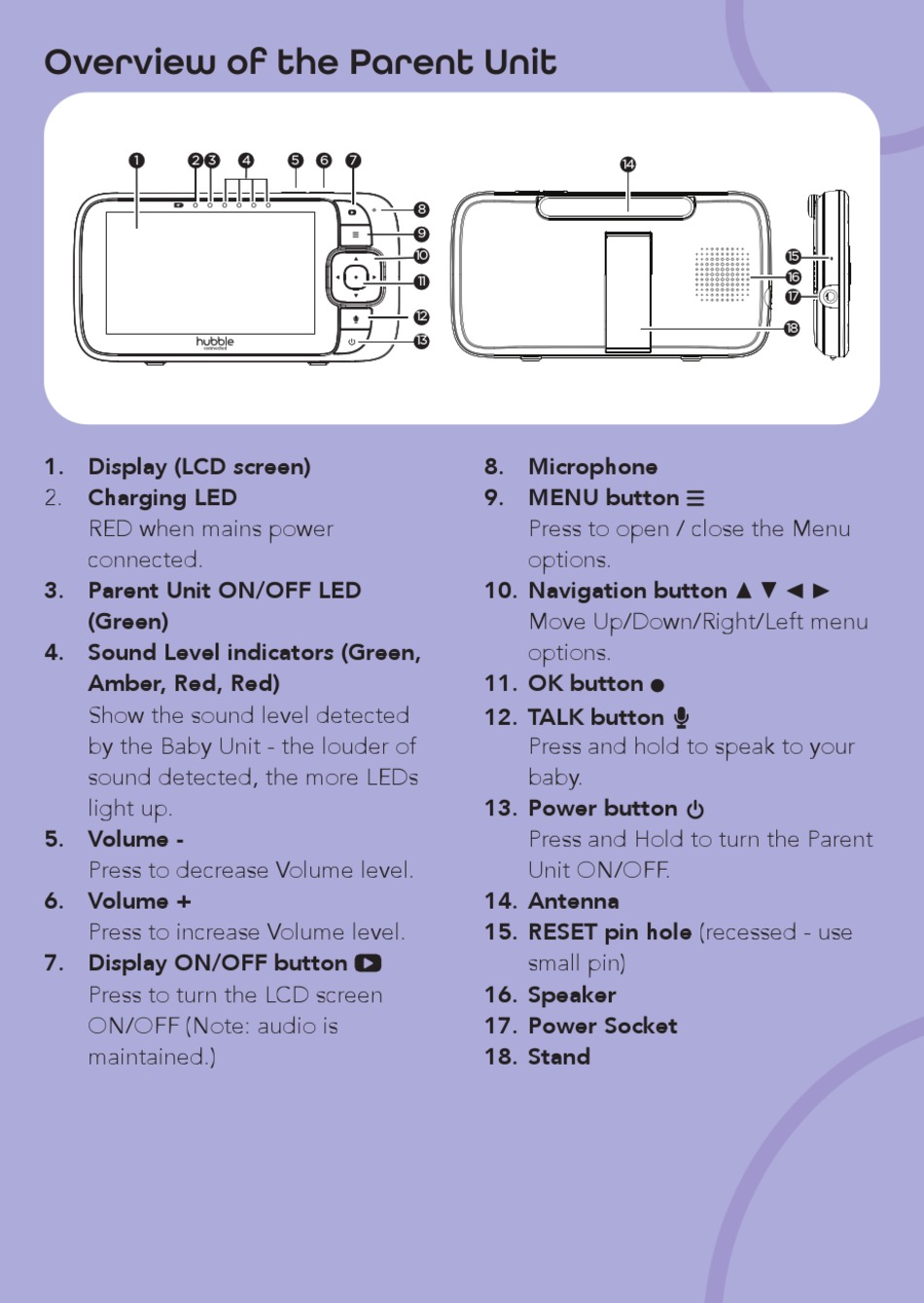

Overview of the Parent Unit
1 2 3
1. Display (LCD screen)
Charging LED
2.
RED when mains power
connected.
3. Parent Unit ON/OFF LED
(Green)
4. Sound Level indicators (Green,
Amber, Red, Red)
Show the sound level detected
by the Baby Unit - the louder of
sound detected, the more LEDs
light up.
5. Volume -
Press to decrease Volume level.
6. Volume +
Press to increase Volume level.
7. Display ON/OFF button
Press to turn the LCD screen
ON/OFF (Note: audio is
maintained.)
4 5 6 7
10
12
13
8
9
11
8. Microphone
9. MENU button
Press to open / close the Menu
options.
10. Navigation button
Move Up/Down/Right/Left menu
options.
11. OK button
12. TALK button
Press and hold to speak to your
baby.
13. Power button 0
Press and Hold to turn the Parent
Unit ON/OFF.
14. Antenna
15. RESET pin hole (recessed - use
small pin)
16. Speaker
17. Power Socket
18. Stand
14
15
16
17
18
+ - < >
T
