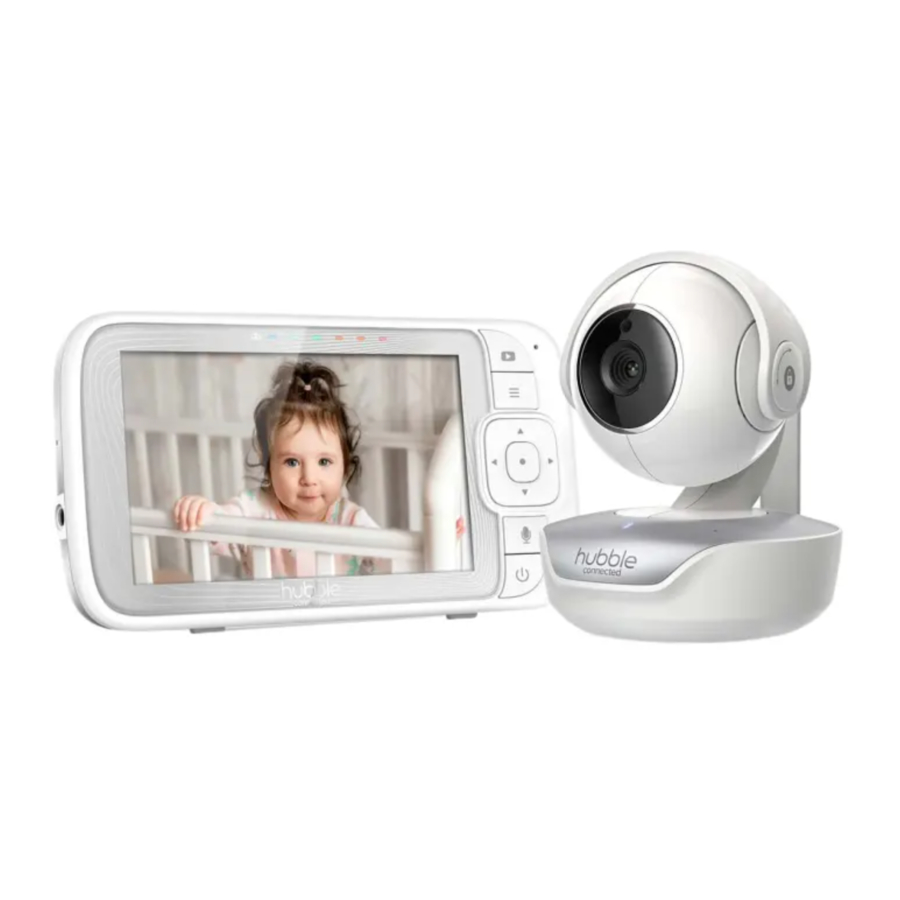

Hubble Nursery Pal Connect - Baby Monitor Quick Start Guide

Table of Contents

Contents

1 INTRODUCTION
2 Setting up your Digital Video Baby Monitor
3 Basic operation of the keys
4 Setting up the Camera Unit for Wi-Fi internet viewing
- 4.1 Install HubbleClub by Hubble Connected App
- 4.2 View on Compatible Smartphones and Tablets
5 Documents / Resources
- 5.1 References
- 5.2 Download manual

INTRODUCTION

Strangulation hazard.
Children can be STRANGLED on cords.
Keep this cord out of the reach of children (more than 3 feet away).
Never use extension cords with AC Adapters.
Only use the AC Adapters provided.

Setting up your Digital Video Baby Monitor

Connecting the Power Supply of the Baby Unit

Connect the USB type-C plug of the power adapter to the Baby Unit and the other end to a suitable electrical outlet.
Only use the enclosed adapter (5V DC / 1500mA).

Privacy Protector
This is to disable the live camera video feed by blocking the camera lens.

Press the knob to release the lock.
You can move the protector to its open or closed position after the lock is released.
When you hear the click sound the protector is at its proper positions.

Make sure the privacy protector does not cover the camera lens when in use.
Sound is NOT disabled when the protector covers the camera lens.

Connecting the Power Supply of the Parent Unit

The parent unit contains a rechargeable battery (Lithium ion 2100mAh). This allows you to move the parent unit without losing the link and picture from the Baby Unit. We recommend charging the parent unit for at least 4 hours before first use, and when the Parent Unit indicates the battery is low.

Connect the small plug of the power adapter to the parent unit and the other end to mains power. Only use the enclosed adapter (DC5V/1000mA).
Press and hold thebutton to turn the Parent unit on, the Parent unit and Baby unit are automatically linked and ready to use.

Note:
When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a colour image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing the Baby Unit is in Night Vision mode.

Desktop Stand of the Parent Unit

The parent unit comes with a desktop stand attached to the back of the parent unit.
To place the parent unit on a desk, simply pull out the stand, as shown.

Note
Place the parent unit on a fl at, even surface.

Basic operation of the keys

Parent unit
	ON/OFF button	Press and hold to switch the Parent Unit ON/OFF.
	Vol+ and Vol- buttons	Press -/+ to select volume level of the Parent Unit.
	UP/DOWN buttons	Press to tilt the camera upward or downward. Press to adjust menu setting when menu is active.
	LEFT/RIGHT buttons	Press to pan the camera left or right. Press to access menu options when menu is active.
	MENU button	Press to open menu options or exit the menu.
	OK button	Press to confirm a selection.
	VIDEO button	Press to turn the LCD screen ON/OFF.
	TALK button	Press and hold to talk to your baby.
	RESET pin hole	Press and hold with a small pin to reset the unit.
Baby Unit
PAIR button		Press and hold to pair with the parent unit or for Hubble WiFi® Setup. Located on the bottom of the camera.

* Download the User's Guide showing button location from website:
support.hubbleconnected.com.

Setting up the Camera Unit for Wi-Fi^® internet viewing

Install HubbleClub by Hubble Connected App

Scan the QR code with your smart device and download HubbleClub by Hubble Connected App from the App Store for iOS devices or from the Google Play™ Store for Android™ devices.
Install HubbleClub by Hubble Connected App on your device.

View on Compatible Smartphones and Tablets

Open the HubbleClub by Hubble Connected App on your compatible smartphone or tablet.
Follow the in-app instructions to create your Hubble account and connect to your device.

Please take note of the following minimum system requirements:
Smartphones/Tablets: iOS 12.0, Android™ 8.0

Wi-Fi ^® requirements:
At least 0.6 Mbps upload bandwidth per Smart Monitoring Companion, test your Internet speed at:
http://www.speedtest.net/

For a full explanation of all features and instructions, please refer to the User's Guide (available for download from support.hubbleconnected.com).
