Related Manuals for Hubble Dream+
Summary of Contents for Hubble Dream+

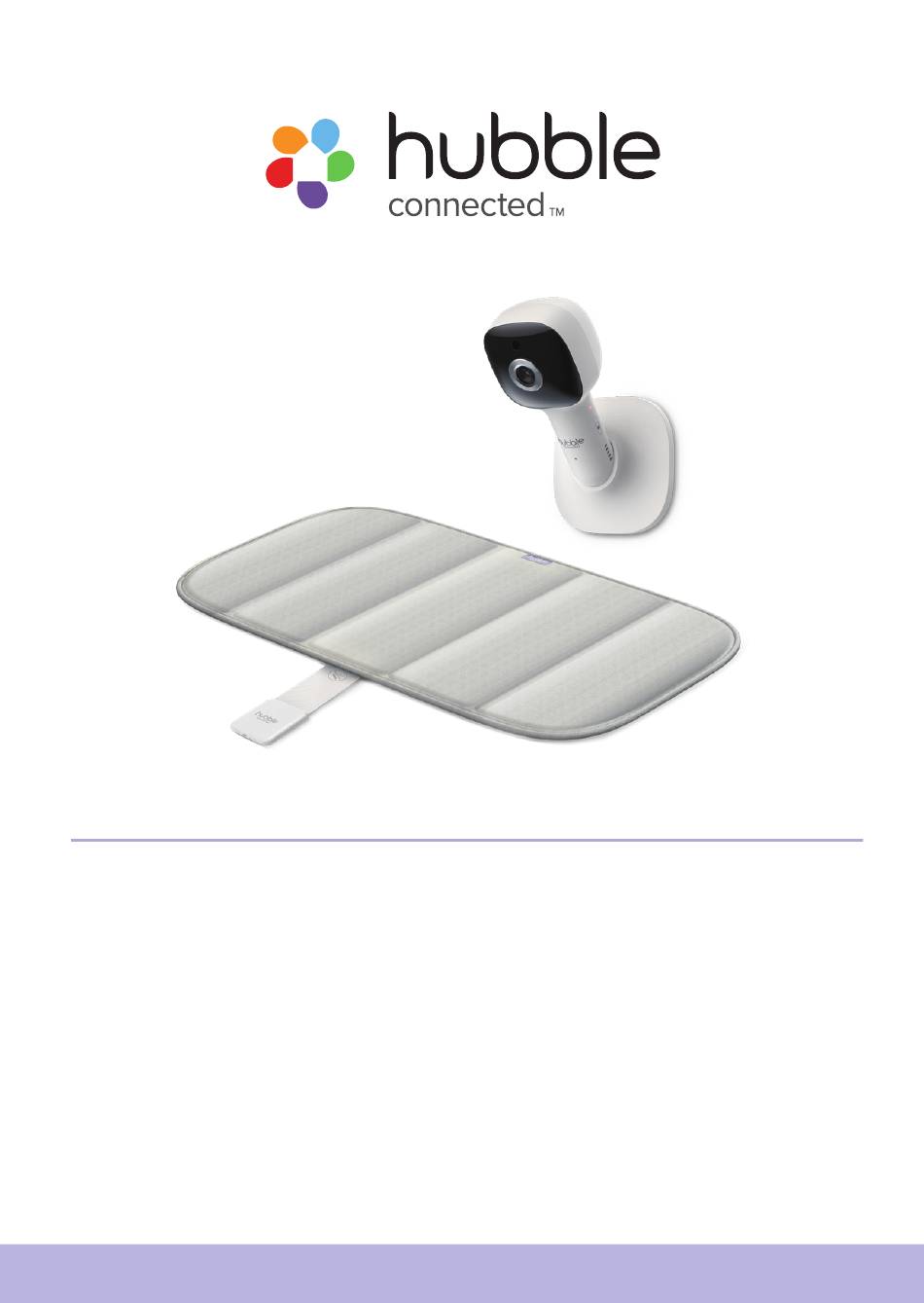

- Page 1 USER’S GUIDE Smart Wireless Sensor Mat with 1080P Wi-Fi Video Baby Monitor Hubble Dream+ The features described in this user’s guide are subject to modifications without prior notice.
- Page 2 Please keep your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
- Page 3 Overview of the Smart Sensor Buzzer Charging Socket LED indicator Power Button Sensor Body Sensor Belt WARNING To obtain optimal user experience and safe use for your baby, please read and understand this manual prior to use and follow all instructions and warnings. Also, read and follow American Academy of Pediatrics Safe Sleep guidelines found at www.aap.
- Page 4 Overview of the Smart Camera Photo Sensor (Night Vision Mode) Power/Link indicatior PAIR button Camera Lens Infrared LEDs (x 8, for night Night Light vision) Speaker High Sense Microphone 10. Power Socket Magnetic mount 11. Temperature Sensor Important guidelines for installing your Smart Camera •...
-
Page 5: Table Of Contents
5.4 User Account and Camera Setup on Android™ or Apple devices .13 5.4.1 Connect the Camera .............13 5.4.2 Download HubbleClub by Hubble Connected App ..... 13 5.4.3 Sign up with Hubble on your smart device ......14 5.4.4 Add the Camera to your account ........15 6. Overview Of Hubble App ..............18 7. -
Page 6: Important Safety Information
1. Important Safety Information • ADULT SUPERVISION REQUIRED AT ALL TIMES. • Never allow baby to lay face down or on its side on this product. • Always place baby on back with no pillows, blankets or other loose materials that could cover baby’s mouth and/or nose or cause baby to become entangled. - Page 7 Proper Storage • When not in use, power off and lay flat . • Do not store in extreme conditions (temperature below -20°C/- 4°F or over 55°C/131°F or humidity below 15% RH or over 90% RH). Failure to store device under proper conditions may cause inaccurate readings. •...
-
Page 8: Setting Up Your Smart Sensor
2. Setting up your Smart Sensor 2.1 Charging the Sensor • Charge the sensor for at least one hour before initial use. • When the battery power is low, the LED will flash in red slowly; the sensor will also beep every 15 seconds until the device is being charged. 2.2 Power On your Sensor Power On - Press and hold the power button at the side of Sensor to turn it on, the LED indicator lights in green colour and breathing. -
Page 9: Installation Of Sensor
2.3 Installation of Sensor Note: The Sensor is built in with high sensitivity force sensor, please insert it to the side pocket of mat gently. Folding of the sensor belt is not permitted. Do not put the Sensor into water. Completely install Sensor into the mat side pocket. -
Page 10: Placement Of The Mat
3. Placement of the mat To avoid serious injury or death including possible suffocation, strangulation and falls, read, understand and follow all instructions and warnings including: Placement Mat Must be placed in between the bedsheet and mattress Bedsheets Mattress Placement of the mat... -
Page 11: Setting Up Your Smart Camera
4. Setting up your Smart Camera 4.1 Connecting the Power Supply of the Camera Unit • Insert the DC plug of the power adaptor into the DC socket on the back of the Camera Unit. • Connect the other end of the power adaptor to the electrical outlet. -
Page 12: Connect Smart Camera To Your Android™ / Iphone
View your Camera from any Camera Camera locally compatible device remotely Hubble Service When a user tries to access the Camera, our Hubble server authenticates the user’s identity and permits access to the Camera. Connect Smart Camera to your Android™ / iPhone®... -
Page 13: Setup
Camera Unit, DO NOT switch the power on at the power point yet. 5.4.2 Download HubbleClub by Hubble Connected App • Scan the QR code with your smart device and download... -
Page 14: Sign Up With Hubble On Your Smart Device
• Follow the steps to enter your account information and sign up with Hubble (fig.3-6). fig.3 fig.4 fig.5 fig.6 Note: If you already have a HubbleClub by Hubble Connected App account, please tap Log in with Hubble to go to the next steps. Connect Smart Camera to your Android™ / iPhone®... -
Page 15: Add The Camera To Your Account
5.4.4 Add the Camera to your account • Log in your Hubble Account by entering “User Name” and “Password” (fig.7). • Tap Add Your Hubble Device on the screen of your device to add new Camera (fig.8). fig.7 fig.8 • To select your device for setting up by tapping Baby Wellness (fig.9). - Page 16 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter “Password” (fig.12). • Power on your camera and wait for the LED to flash Red on the camera. Press and hold the PAIR button on the side of Camera, you will hear a voice prompt “Ready for Pairing”...
- Page 17 • Tap Continue, it will take a few minutes for the Camera to connect to the Wi-Fi® network before showing the connection status (fig.18). • The Camera has been successfully connected, name your Camera, tap Finish to complete the camera setup with Hubble (fig.19). fig.18 fig.19 Note: If connection fails, please tap Retry and repeat the steps starting from 5.4.4.
-
Page 18: Overview Of Hubble App
6. Overview Of Hubble App When the sensor syncs to your smart device, the app can support the following: • Current breathe rate • Current heart rate • The sleep data for hours in the comfort cloud over past 24 hours awake and or out of the product •... -
Page 19: Cleaning
Wi-Fi® network. If you forgot your password • If you do not remember your Hubble for partners App password, tap Forgot Password and submit your e-mail address. A new password will be sent to your e-mail address. - Page 20 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Account I am unable to Please check your user name and login even after password. registration. Account I receive an error Please ensure that you have message saying: registered with us.
- Page 21 Connectivity I get a message: We Please try again in a few Issues are having problems minutes.This could be because accessing your of any issue with your internet camera. This could be connection. due to lack of internet If the problem remains, please connection.
- Page 22 General What is the Pair / Setup state: LED is Flashing significance of the Green. camera LED? Unconnected state: LED is Flashing Red. Connected state: LED is Solid Green. Green: The camera is live streaming. LED Off - No Power to camera. Connectivity I am not able to Please check if the Camera is within...
- Page 23 Camera When I try to view Please upgrade your firmware. This the Camera, I get a takes around 5 minutes. We push prompt for Camera upgrades from time to time to firmware upgrade. improve the Camera features. What should I do? General Which platforms Minimum requirement:...
- Page 24 – Open the Google Play Store on and iOS devices? your Android™ device. – Select Search – Type in “HubbleClub for Partners” – The results will show the Hubble – Select to install it iOS Device: – Open the App Store – Select Search –...
-
Page 25: General Information
• Damage caused by or resulting from contact with foreign substances, including, but not limited, to liquid, water, rain, humidity, perspiration, sand, dirt, and/or food; • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment;... - Page 26 DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST HUBBLE AND Hubble Smart Nursery. IN NO EVENT SHALL HUBBLE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND HUBBLE AND Hubble Smart Nursery’s TOTAL LIABILITY...
- Page 27 What will HUBBLE do? HUBBLE or its authorized distributor at its sole discretion will, at no charge, repair or replace any Products or Accessories that do not conform to this Warranty. In the event that replacement is necessary to remedy a defect...
- Page 28 HUBBLE or representations made by any agent, employee or staff of HUBBLE, that may have been made in connection with your purchase of any Product and/or Accessory. FCC and IC regulations (FCC Part 15)
-
Page 29: Technical Specifications
11. Technical Specifications Smart Camera Frequency 2400 MHz to 2483.5 MHz Image sensor colour CMOS 2M Pixels IR LED 8 pcs Operating F - 104 Temperature Power Adaptor Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA Smart Sensor Technology Bluetooth Low Energy (4.2) Power rating DC 3.7V 750mAh(Li-ion Battery) - Page 30 Manufactured, distributed and sold by Hubble Baby . Apple logo is trademark of Apple Inc., (HK) Limited registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and Android are trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance.
