Hubble Nursery Pal Link Premium User Manual

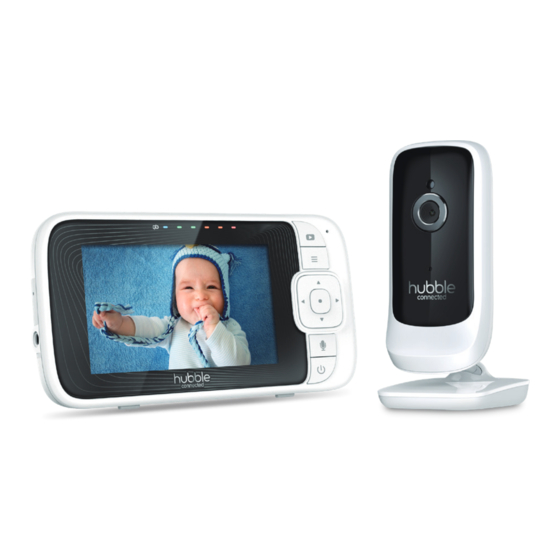

5" smart baby monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER'S GUIDE
5" Smart Baby Monitor
Nursery Pal Link Premium, Nursery Pal Link
Premium Twin
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nursery Pal Link Premium and is the answer not in the manual?

Questions and answers

Related Manuals for Hubble Nursery Pal Link Premium

Summary of Contents for Hubble Nursery Pal Link Premium

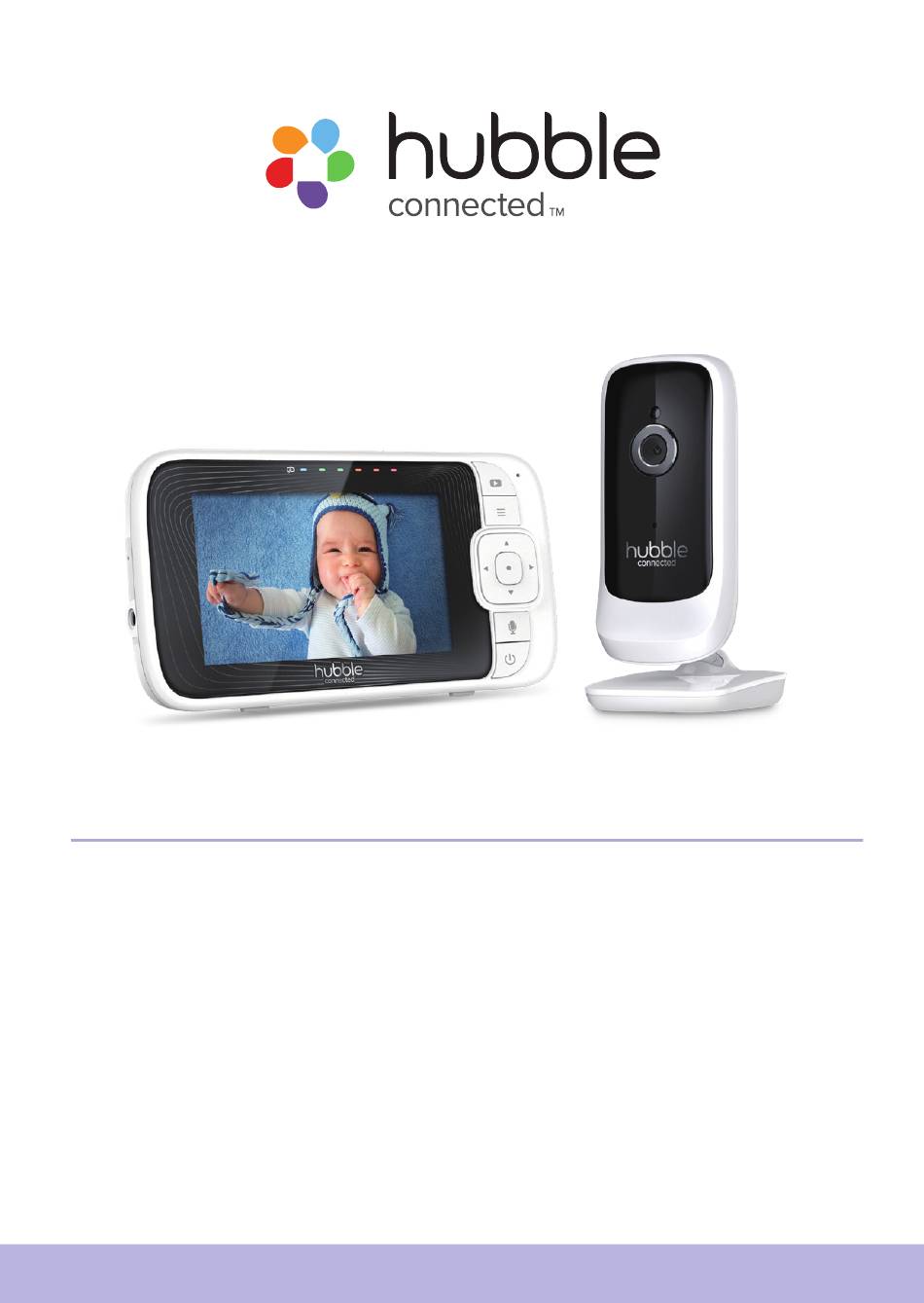

  • Page 1 USER’S GUIDE 5" Smart Baby Monitor Nursery Pal Link Premium, Nursery Pal Link Premium Twin The features described in this user’s guide are subject to modifications without prior notice.
  • Page 2 Please retain your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
  • Page 3 Overview of the Parent Unit 1. Display (LCD screen) 8. Microphone Charging LED 9. MENU button RED when mains power Press to open / close the Menu connected. options. 3. Parent Unit ON/OFF LED 10. Navigation button + - < > (Green) Move Up/Down/Right/Left menu 4.
  • Page 4 Parent Unit menu icons Signal Level (4 Levels) Night Vision Mode (Video also changes to Black/White). Talk Mode On. Indicates the screen off timer is set. Volume Level Control (8 Levels). No Baby Unit detected. Battery Level Indication (4 Levels). Zoom Level Control (1X, 2X).
  • Page 5 Overview of Your Baby Unit 1. Light Sensor 6. Antenna 7. Speaker 2. Camera Lens 8. PAIR button 3. Infrared LEDs (x8, for night 9. Power Socket vision) 10. Temperature Sensor 4. Power/Link indicator 5. High Sensitivity Microphone Important guidelines for installing your Digital Video Baby Monitor •...

  • Page 6: Table Of Contents

    Table of contents 1. Safety Instructions ................8 2. Getting Started ................... 11 2.1 Connecting the Power Supply for the Baby Unit ......11 2.2 Connecting the Power Supply of the Parent Unit ......11 2.3 Desktop Stand of the Parent Unit ...........12 2.4 Registration (Pairing) ................13 3.
  • Page 7 5.4.1 Power ON and Connect the Camera ........21 5.4.2 Download HubbleClub by Hubble Connected App ..... 21 5.4.3 Sign up with Hubble on your smart device ......22 5.4.4 Add the Camera to your account ........23 6. Disposal of the Device (environment) ..........26 7.

  • Page 8: Safety Instructions

    1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED on cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adaptors. Only use the AC Adaptors provided. Safety Instructions...
  • Page 9 • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit with Hubble Grip (Not Included). • NEVER place the Baby Unit or cords within the crib.
  • Page 10 • Only use the chargers and power adaptors provided. Do not use other chargers or power adaptors as this may damage the device and battery pack. • Do not touch the plug contacts with sharp or metal objects. • Connect the power adaptors to easily accessible electrical sockets. Caution: There is a risk of explosion if the battery is replaced by an incorrect type.

  • Page 11: Getting Started

    2. Getting Started 2.1 Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adaptor into the DC socket on the back of the Baby Unit. • Connect the other end of the power adaptor to a suitable electrical outlet.

  • Page 12: Desktop Stand Of The Parent Unit

    Note: When the Baby and Parent Units are both turned on and within range, the Parent Unit should show a color image from the Baby Unit camera, but if the room is dark, the image will be in black and white, with an icon showing the Baby Unit is in Night Vision mode.

  • Page 13: Registration (Pairing)

    2.4 Registration (Pairing) The Baby Unit is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedures below: Press the button and the menu bar will pop up.

  • Page 14: Using The Baby Monitor

    3. Using the Baby Monitor 3.1 Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. Note: Do not place the Baby Unit within the baby’s reach! If there is interference with the picture or sound, try moving the units to different locations, and...

  • Page 15: Parent Unit Menu Options

    You can playback audio content - Lullabies, Soothing Sounds and Audio Book (English only) on the Baby Unit. The audio content can be downloaded and stored in the Baby Unit via Hubble App. You have 10 preloaded lullabies/soothing sounds and 10 audio books in the Baby Unit.

  • Page 16: Audio Book (English Only) Playback

    4.4.3 Personal Recording Playback The unit allows playback your personal audio to soothe your baby, before playback, please record a personal audio via HubbleClub by Hubble Connected App. Press the button then Scroll Left/Right to select option at the menu bar.

  • Page 17: Temperature

    4.6 Temperature Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until is highlighted. Press + UP / - DOWN to select °C or °F. 4.7 Camera Control 4.7.1 Add (pair) a camera Press the button and the menu bar will pop up.

  • Page 18: Delete A Camera

    Note: Only camera locations with a * can be selected. You can also press the button repeatedly to select the avail-able camera options from 1 / 2 / 3 / 4 , (scan). 4.7.3 Delete a camera Press the button and the menu bar will pop up. Press the <...

  • Page 19: Power Saving Mode

    4.8 Power Saving mode Press the button and the menu bar will pop up. Press the < LEFT button or > RIGHT button until V is highlighted. Press the + UP button or - DOWN button to select auto video off after 5 mins, 15 mins or 30 mins (if operating on batteries only).

  • Page 20: Wi-Fi® Internet Viewing

    Wi-Fi Router Access your View your Camera from any Camera Camera locally compatible device remotely Hubble Service When a user tries to access the Camera, our Hubble server authenticates the user’s identity and permits access to the Camera. Wi-Fi® Internet Viewing...

  • Page 21: Setup

    • Connect the power adaptor to mains power and insert the plug into the power socket on the back of the Camera Unit, the unit turns on. 5.4.2 Download HubbleClub by Hubble Connected App • Scan the QR code with your smart device and download...

  • Page 22: Sign Up With Hubble On Your Smart Device

    • Follow the steps to enter your account information and sign up with Hubble (fig.3-6). fig.3 fig.4 fig.5 fig.6 Note: If you already have a HubbleClub by Hubble Connected App account, please tap Log in with Hubble to go to the next steps. Wi-Fi® Internet Viewing...

  • Page 23: Add The Camera To Your Account

    • Tap Add Your Device on the screen of your device to add new Camera (fig.8) fig.7 fig.8 • To select your device for setting up by tapping Baby Moniotor (fig.9). • Tap Nursery Pal Link Premium to add the new camera (fig.10) . fig.9 fig.10 Wi-Fi® Internet Viewing...
  • Page 24 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter “Password” (fig.11). • Power on your camera and wait for the LED to flash Red on the camera. Press and hold the PAIR button on the side of Camera, you will hear a voice prompt “Ready for Pairing”...
  • Page 25 • Tap Continue, it will take a few minutes for the Camera to connect to the Wi-Fi® network before showing the connection status (fig.16). • The Camera has been successfully connected, name your Camera (fig.17). • Tap Finish to complete the camera setup with Hubble. fig.16 fig.17 Note: If connection fails, please tap Retry and repeat the steps starting from 5.4.4.

  • Page 26: Disposal Of The Device (Environment)

    6. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.

  • Page 27: Help

    8. Help Display No display • Try recharging the battery pack. • Reset the Units. Reset of the PU using the Reset Pin Hole and reset of the BU by powering off and holding the pair button while powering back on. Note: There is no power switch on this unit.
  • Page 28 • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/mobile telephone. Move the Baby Unit or Parent Unit 5 feet away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™...
  • Page 29 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Cannot find my There are more than one Hubble product model at App. Check if you download correct “Add Camera” App “HubbleClub By Hubble Connected” Account I am unable to...
  • Page 30 Connectivity I get a message: We Please try again in a few Issues are having problems minutes.This could be because accessing your of any issue with your internet camera. This could be connection. due to lack of internet If the problem remains, please connection.
  • Page 31 ‘Ready for pairing’. and the setup fails. When the Camera LED is off, this indicates that it is in setup mode. Add camera in HubbleClub by Hubble Connected App. Connectivity Even though I am Please check your wireless router Issues accessing my Camera settings.
  • Page 32 Camera When I try to view Please upgrade your firmware. This the Camera, I get a takes around 5 minutes. We push prompt for Camera upgrades from time to time to firmware upgrade. improve the Camera features. What should I do? General Which platforms Minimum requirement:...
  • Page 33 Android™ device. – Select Search – Type in “HubbleClub by Hubble Connected” – The results will show the Hubble – Select to install it iOS Device: – Open the App Store – Select Search – Type in “HubbleClub by Hubble Connected”...

  • Page 34: General Information

    • Damage caused by or resulting from contact with foreign substances, including, but not limited, to liquid, water, rain, humidity, perspiration, sand, dirt, and/or food; • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment;...
  • Page 35 DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST HUBBLE AND Hubble Smart Nursery. IN NO EVENT SHALL HUBBLE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND HUBBLE AND Hubble Smart Nursery’s TOTAL LIABILITY...
  • Page 36 What will HUBBLE do? HUBBLE or its authorized distributor at its sole discretion will, at no charge, repair or replace any Products or Accessories that do not conform to this Warranty. In the event that replacement is necessary to remedy a defect...
  • Page 37 HUBBLE or representations made by any agent, employee or staff of HUBBLE, that may have been made in connection with your purchase of any Product and/or Accessory. FCC and IC regulations (FCC Part 15)

  • Page 38: Technical Specifications

    10. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor color CMOS 1M Pixels IR LED 8 pcs Operating F - 104 Temperature Power Adaptor Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1000mA WARNING Use only with provided power supply. Technical Specifications...
  • Page 39 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 5” diagonal LCD Brightness 8 steps Control Volume Control 8 steps Operating F - 104 Temperature Power Adaptor: Input 100-240V AC, 50/60Hz, 300mA; Output 5.0V DC, 1000mA WARNING Use only with provided power supply. Battery (built-in) TMB i9300 3.8V, 2100mAh Lithium-Ion, re-chargeable...
  • Page 40 Manufactured, distributed and sold by Hubble Baby . Apple logo is trademark of Apple Inc., (HK) Limited registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and Android are trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance.
