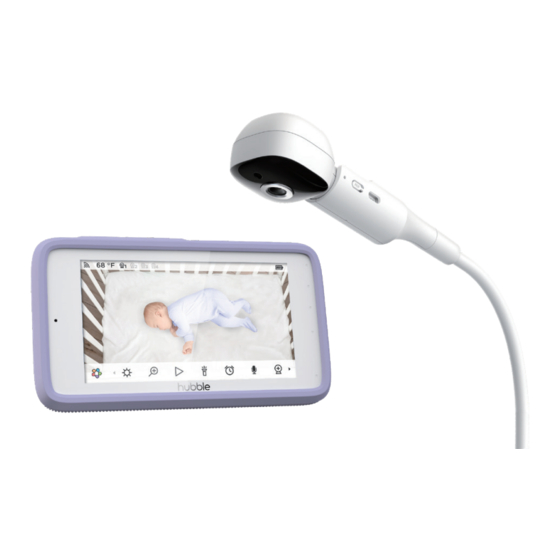

5" smart hd baby monitor with touch screen viewer
Hide thumbs
Table of Contents

Advertisement

Quick Links

USER'S GUIDE
5" Smart HD Baby Monitor with Touch Screen Viewer
Nursery Pal Crib Edition
The features described in this user's guide are subject to modifications without prior notice.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nursery Pal Crib Edition and is the answer not in the manual?

Questions and answers

Related Manuals for Hubble Nursery Pal Crib Edition

Summary of Contents for Hubble Nursery Pal Crib Edition

  • Page 1 USER’S GUIDE 5" Smart HD Baby Monitor with Touch Screen Viewer Nursery Pal Crib Edition The features described in this user’s guide are subject to modifications without prior notice.
  • Page 2 Please keep your original dated sales receipt for your records. For warranty service of your Hubble product, you will need to provide a copy of your dated sales receipt to confirm warranty status. Registration is not required for warranty coverage.
  • Page 3 Overview of the Parent Unit Microphone Power Socket Touch screen display Power LED Power button RED when Power OFF charging. GREEN when Power ON with Press and Hold to turn the Parent battery only. Unit ON/OFF. ORANGE when Power ON Once press to turn the Power charging.
  • Page 4 Overview of Your Baby Unit Light Sensor Power/Link indicatior Camera Lens PAIR button Infrared LEDs (x 8, for night Night Light vision) Speaker High Sense Microphone 10. Power Socket Magnetic mount 11. Temperature Sensor Important guidelines for installing your Digital Video Baby Monitor •...

  • Page 5: Table Of Contents

    Table of contents 1. Safety Instructions ................7 2. Getting Started ..................9 2.1 Connecting the Power Supply for the Baby Unit ....... 9 2.2 Fixing magnetic mount on the wall ...........9 2.3 Connecting the Power Supply of the Parent Unit......10 2.4 Desktop Stand of the Parent Unit ............10 2.5 Registration (Pairing) ................11 2.6 Installation of Cot mount ..............11...
  • Page 6 4.4 User Account and Camera Setup on Android™ or Apple devices. 21 4.4.1 Connect the Camera .............21 4.4.2 Download HubbleClub by Hubble Connected App .....21 4.4.3 Sign up with Hubble on your smart device ......22 4.4.4 Add the Camera to your account ........23 5. Disposal of the Device (environment) ..........26 6.

  • Page 7: Safety Instructions

    1. Safety Instructions WARNING: Strangulation Hazard: Children have STRANGLED on cords. Keep this cord out of the reach of children (more than 3ft (1m) away). Never use extension cords with AC Adaptors. Only use the AC Adaptors provided. Safety Instructions...
  • Page 8 ® Wi-Fi CAMERA UNIT SET UP & USE: • Choose a location for the Baby Unit that will provide the best view of your baby in his/her crib. • Place the Baby Unit on a flat surface, such as a dresser, bureau or shelf, or mount the Baby Unit on a wall securely using the keyhole slots in the underside of the stand.

  • Page 9: Getting Started

    2. Getting Started 2.1 Connecting the Power Supply for the Baby Unit • Insert the DC plug of the power adaptor into the DC socket on the back of the Baby Unit. • Connect the other end of the power adaptor to a suitable electrical outlet.

  • Page 10: Connecting The Power Supply Of The Parent Unit

    2.3 Connecting the Power Supply of the Parent Unit. • Connect the USB Type-C plug of the power adaptor to the parent unit and the other end to the electrical outlet. Only use the included adaptor (5V DC / 1500mA). •...

  • Page 11: Registration (Pairing)

    2.5 Registration (Pairing) The Baby Monitor is pre-registered to your Parent Unit. You do not need to register it again unless the Baby Unit loses its link with the Parent Unit. To re-register your Baby Unit, or register a new Baby Unit, follow the procedure below: Tap the in the menu bar.
  • Page 12 Note: Each pole is connected with power the cord inside, handle the power cord with care when removing the poles from the box and during installation. • The Top clamp is set for vertical clamping on the top rail of the cot, to clamp horizontally on the slats of the cot, unfasten and remove the small knob completely from the Top Clamp assembly (Dia.2a), remove the Top Clamp from the assembly and re-orient the Top Clamp with the long open...
  • Page 13 • To install the pole, unscrew the knobs then open the top and bottom clamps, move the supporting pole into the clamps. (Dia. 3a) • Place the bottom clamp below and against the lower rail, the stand base is spring loaded. Push the lower pole downward before closing the bottom clamp with knob.
  • Page 14 • Install the flexible gooseneck extension into the top of the post. You will hear a click noise when all the sections are properly connected (Dia. 5a). • Insert the camera unit into the housing at the end of the flexible gooseneck extension. Connect the power adaptor plug to the camera unit power socket.

  • Page 15: Using The Baby Monitor

    3. Using the Baby Monitor 3.1 Setting Up Place the Baby Unit in a convenient location (e.g. on a table) and point the camera lens towards the area you want to monitor. Adjust the angle of the Baby Unit's camera until you are satisfied with the image shown on the Parent Unit. Note: Do not place the Baby Unit within the baby’s reach! If there is inter-ference with the picture or sound, try moving the units to different locations, and...

  • Page 16: Brightness

    8 audio books in the Baby Unit. 3.5.1 Personal Recording Playback The unit allows playback of your personal audio to soothe your baby. Before playback, record a personal audio via HubbleClub by Hubble Connected App. Tap the in the menu bar.

  • Page 17: Volume Level Of Audio Playback

    3.5.4 Volume Level of Audio Playback Tap the in the menu bar. Tap the to select the desired Volume Level from level 1 ~ 4. (The default volume is level 3.) 3.6 Flashlight Tap the in the menu bar to turn the flashlight on, the will appear on the notification bar.

  • Page 18: Camera Control

    3.9 Camera Control 3.9.1 Add (pair) a camera Tap the in the menu bar. will appear. to select the desired Camera location. Note: If a camera is currently paired with the Parent Unit, its camera location (in dark grey colour) cannot be selected for a new registration. Press and hold the PAIR button on the underside of the Baby Unit until the Parent Unit finds the camera, beeps and PAIR OK appears on the screen.

  • Page 19: Temperature

    The audio is still on, you can press the power key or touch the screen to resume video feed. 3.12 Games and Videos The unit comes packed with entertaining content (videos, picture books games and more). to access Hubble Baby entertaining games and videos. Using the Baby Monitor...

  • Page 20: Wi-Fi® Internet Viewing

    Wi-Fi Router Access your View your Camera from any Camera Camera locally compatible device remotely Hubble Service When a user tries to access the Camera, our Hubble server authenticates the user’s identity and permits access to the Camera. Wi-Fi® Internet Viewing...

  • Page 21: Setup

    Camera Unit, DO NOT switch the power on at the power point yet. 4.4.2 Download HubbleClub by Hubble Connected App • Scan the QR code with your smart device and download HubbleClub by Hubble...

  • Page 22: Sign Up With Hubble On Your Smart Device

    • Follow the steps to enter your account information and sign up with Hubble (fig.3-6). fig.3 fig.4 fig.5 fig.6 Note: If you already have a HubbleClub by Hubble Connected App account, please tap Log in with Hubble to go to the next steps. Wi-Fi® Internet Viewing...

  • Page 23: Add The Camera To Your Account

    4.4.4 Add the Camera to your account • Log in your Hubble Account by entering “User Name” and “Password” (fig.7). • Tap Add Your Device on the screen of your device to add new Camera (fig.8) fig.7 fig.8 • To select your device for setting up by tapping Baby Moniotor (fig.9).
  • Page 24 • The following setup instructions will appear on the screen, select your Wi-Fi network and enter “Password” (fig.11). • Power on your camera and wait for the LED to flash Red on the camera. Press and hold the PAIR button on the side of Camera, you will hear a voice prompt “Ready for Pairing”...
  • Page 25 • Tap Continue, it will take a few minutes for the Camera to connect to the Wi-Fi® network before showing the connection status (fig.16). • The Camera has been successfully connected, name your Camera (fig.17). • Tap Finish to complete the camera setup with Hubble. fig.16 fig.17 Note: If connection fails, please tap Retry and repeat the steps starting from 4.4.4.

  • Page 26: Disposal Of The Device (Environment)

    5. Disposal of the Device (environment) At the end of the product life cycle, you should not dispose of this product with normal household waste. Take this product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s guide and/or box indicates this.

  • Page 27: Help

    7. Help Display No display • Try recharging the battery pack. • Reset the Units. Unplug both the Units' electrical power, then plug them back in. • Is the Unit switched on? • Press and hold the ON/OFF button 0 on the Parent Unit for 3 seconds to switch it ON.
  • Page 28 • Make sure that the Baby and Parent Units are not near other electrical equipment, such as a television, computer or cordless/mobile telephone. Move the Baby Unit or Parent Unit 3 feet away from other electrical equipment. • Use of other 2.4 GHz products, such as wireless networks (Wi-Fi® routers), Bluetooth™...
  • Page 29 Troubleshooting for Wi-Fi ® Internet Viewing Category Problem Solution Description / Error Cannot find my There are more than one Hubble product model at App. Check if you download correct “Add Camera” App “HubbleClub By Hubble Connected” Account I am unable to...
  • Page 30 Connectivity I get a message: We Please try again in a few Issues are having problems minutes.This could be because accessing your of any issue with your internet camera. This could be connection. due to lack of internet If the problem remains, please connection.
  • Page 31 ‘Ready for pairing’. and the setup fails. When the Camera LED is off, this indicates that it is in setup mode. Add camera in HubbleClub by Hubble Connected App. Connectivity Even though I am Please check your wireless router Issues accessing my Camera settings.
  • Page 32 Camera When I try to view Please upgrade your firmware. This the Camera, I get a takes around 5 minutes. We push prompt for Camera upgrades from time to time to firmware upgrade. improve the Camera features. What should I do? General Which platforms Minimum requirement:...
  • Page 33 Android™ device. – Select Search – Type in “HubbleClub by Hubble Connected” – The results will show the Hubble – Select to install it iOS Device: – Open the App Store – Select Search – Type in “HubbleClub by Hubble Connected”...

  • Page 34: General Information

    • Damage caused by or resulting from contact with foreign substances, including, but not limited, to liquid, water, rain, humidity, perspiration, sand, dirt, and/or food; • Damage caused by or resulting from the use of Non-Hubble Smart Nursery branded or certified Products or Accessories or other peripheral equipment;...
  • Page 35 DURATION OF THIS LIMITED WARRANTY. REPAIR OR REPLACEMENT IS YOUR SOLE AND EXCLUSIVE REMEDY AGAINST HUBBLE AND Hubble Smart Nursery. IN NO EVENT SHALL HUBBLE OR Hubble Smart Nursery’s LIABILITY TO REPAIR OR REPLACE YOUR PRODUCT OR ACCESSORY EXCEED THE ORIGINAL PURCHASE PRICE OF THE PRODUCT AND ACCESSORY AND HUBBLE AND Hubble Smart Nursery’s TOTAL LIABILITY...
  • Page 36 What will HUBBLE do? HUBBLE or its authorized distributor at its sole discretion will, at no charge, repair or replace any Products or Accessories that do not conform to this Warranty. In the event that replacement is necessary to remedy a defect...
  • Page 37 HUBBLE or representations made by any agent, employee or staff of HUBBLE, that may have been made in connection with your purchase of any Product and/or Accessory. FCC and IC regulations (FCC Part 15)

  • Page 38: Technical Specifications

    9. Technical Specifications BABY UNIT Frequency 2400 MHz to 2483.5 MHz Image sensor Color CMOS 2M Pixels IR LED 8 pcs Operating F - 104 Temperature Power Adaptor: Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1000mA Technical Specifications...
  • Page 39 PARENT UNIT Frequency 2400 MHz to 2483.5 MHz Display 5” diagonal TFT LCD Display Colors 16.7M color LCD Operating F - 104 Temperature Brightness Control 8 steps Volume Control 8 steps Power Adaptor: Input: 100-240V AC, 50/60Hz, 300mA; Output: 5.0V DC, 1500mA WARNING Use only with provided power supply.
  • Page 40 Manufactured, distributed and sold by Hubble Baby . Apple logo is trademark of Apple Inc., (HK) Limited registered in the U.S. and other countries. App Store is a service mark of Apple Inc. Google Play and Android are trademarks of Google Inc. Wi-Fi is a trademark of the Wi-Fi Alliance.
