Golden Designs LS2 Owner's Manual

2 and 3 person sauna
Hide thumbs Also See for LS2:
Table of Contents

Advertisement

Quick Links

Download this manual
Owner's Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating
the sauna. We recommend keeping this Owner's Manual for regular review
and future reference.

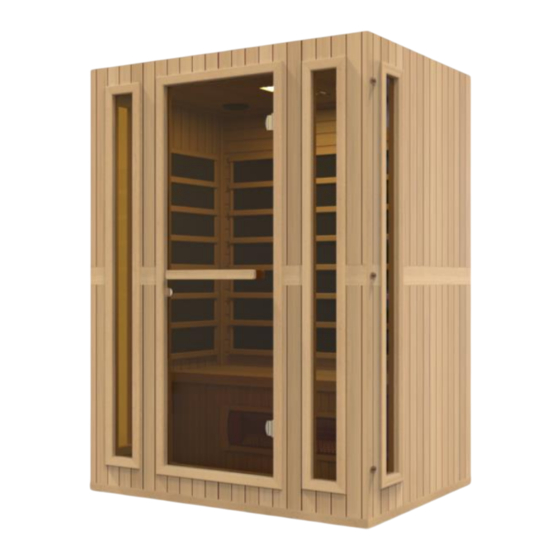

LS2 / LS3
2 and 3 Person Sauna
(2 Person Models)
(3 Person Models)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS2 and is the answer not in the manual?

Questions and answers

Related Manuals for Golden Designs LS2

Summary of Contents for Golden Designs LS2

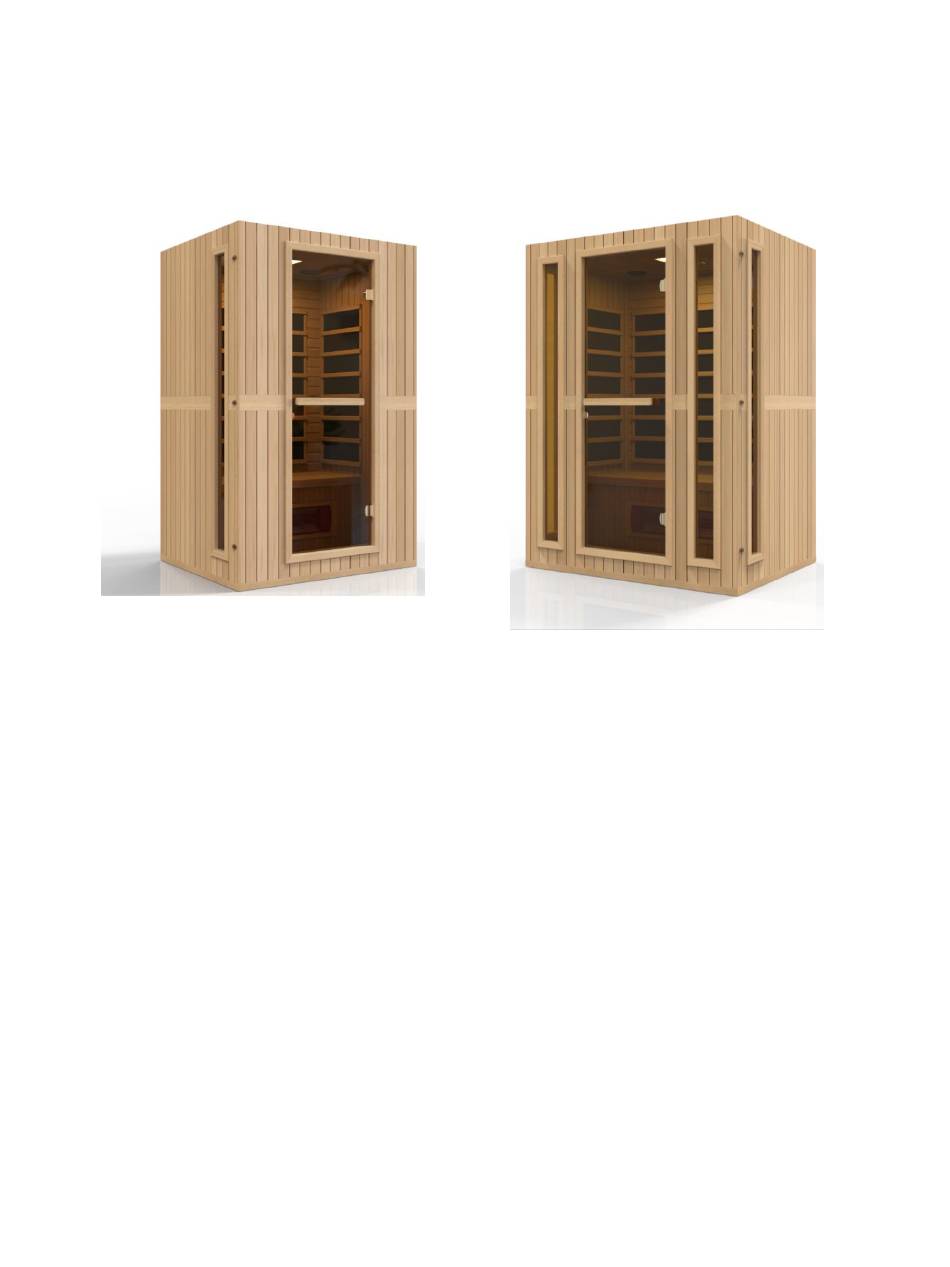

  • Page 1 LS2 / LS3 2 and 3 Person Sauna Owner’s Manual CARBON MODEL SAUNAS SAUNAS ARE FOR INDOOR USE ONLY 120VAC 15AMP Dedicated Circuit Required (2 Person Models) 120VAC 20AMP Dedicated Circuit Required (3 Person Models) Carefully and thoroughly read this Owner’s Manual before using/operating the sauna.
  • Page 2 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 Health Benefits Include, But Are Not Limited To: *Pain relief from Rheumatoid Arthritis *Relaxes muscle spasms *Increases blood circulation *Cardiovascular conditioning *Clears rashes, acne *Reduces cellulite *Removes toxins and mineral waste *Reduces stress and fatigue *Enhances skin tone DISCLAIMER The infrared rays emitted by your sauna are reported to offer a wide range of possible therapeutic benefits based on research completed over the last 40 years from all around the world.
  • Page 4 Powerlines and wiring in buildings and appliances generate 50 and 60 Hertz fields, sometimes referred to as “power frequency” fields. Hertz is the unit for measuring the frequency of fields in the number of wave cycles each second. The lower the frequency of a field, the lower its energy.
  • Page 5 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary. Parts subject to change.
  • Page 6 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary. Parts subject to change.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 8: Parts Description

    PARTS DESCRIPTION (optional) *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*...
  • Page 9 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it. (see figure 3) Figure 3 II. MP3 Auxiliary Socket (optional on models with Bluetooth) The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the speakers for your listening pleasure.
  • Page 10 IV. Buckles A. External Buckles The external buckles are used to connect the wall panels together. (see figure 5) Figure 5 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. Floor Panel When the floor panel faces upward, you will find (2) raised short moldings on the sides and (2) raised long moldings on the front and rear for LSIF-02.
  • Page 11 Figure 8 Wall Panels Buckle Together Buckles are used to fasten the wall panels together. The buckles are mounted on the exterior side of the wall panels. The buckle loop fastens to the buckle arm to mount the wall panels together.

  • Page 12: Assembly Instructions

    Assembly Instructions Choose a good location to install the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation Wood cabin installation order: Floor Panel Front Panel Right Side Panel Left Side...
  • Page 13 D. Installing the REAR PANEL Remove the protection paper (tape, if present) from the buckles. Place the REAR PANEL onto the recessed area on the FLOOR PANEL and up against the long molding. Attach the REAR PANEL to the SIDE PANELS and buckle the loops and arms together. (see figure 11) Figure 11 Installing the FLOOR EMITTER PANEL, BENCH HEAT EMITTER PANEL, and BENCH Install the FLOOR EMITTER PANEL by placing it on top of the FLOOR PANEL.
  • Page 14 Figure 12 Figure 13 Figure 14 Installing the ROOF PANEL The side with the power supply box faces upward. Be careful of the wires coming from the wall panels when you set the ROOF PANEL down onto the wall panels. Feed the wires up and onto the ROOF PANEL. Do the same for any wiring harnesses coming from the SIDE or FRONT PANELS.
  • Page 15 G. Connecting the plugs on the ROOF PANEL Connect the plugs according to the respective labels. Be sure that all of the connections are connected snug and tight. Figure 16 H. Installing the TEMPERATURE SENSOR Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical, pointing downward.

  • Page 16: Operating The Sauna

    Optional MP3 Shelf 1. If your sauna comes with the optional MP3 shelf, use the two screws provided to mount the self on either the side panels or front panel. (see figure 22) Figure 22 Operating the Sauna NOTE: Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, and TEMPERATURE SENSOR are connected properly.
  • Page 17 1. Precautions a. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. b. Set the temperature and time to a comfortable level. The average used temperature range is between 118ºF – 122ºF. The average sauna session is approximately 20 – 30 minutes. It is recommended that you pre-heat the sauna room to the desired temperature before entering.
  • Page 18 Therapy System: 1. While the interior light is ON, press and hold down the button for 2 seconds. You will notice “2n” in the LED display. This indicates you are in the “light” mode. If you do not press any button s for approximately 15 seconds, the “2n” will change back to the Timer mode.

  • Page 19: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly.

  • Page 20: Safeguards For Your Sauna

    9.) Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation. 10) Exercise care before and after sauna use. 11) Never sleep inside the sauna. 12) Do not use any type of cleaning agents on the interior of the sauna.

  • Page 21: Troubleshooting Guide

    Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply.
  • Page 22 wires labeled “TEMP SENSOR”, disconnect them. Connect the spare temperature sensor. For testing purposes, insert the “TEMP SENSOR” (you just connected) down the vent on the roof so that it is now inside the sauna. Then go to the control panel and press the power button. If the heat emitters now heat, then the temperature sensor was the cause of the problem.

  • Page 23: Warranty

    Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 24 Page Intentionally Left Blank...

  • Page 25: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
