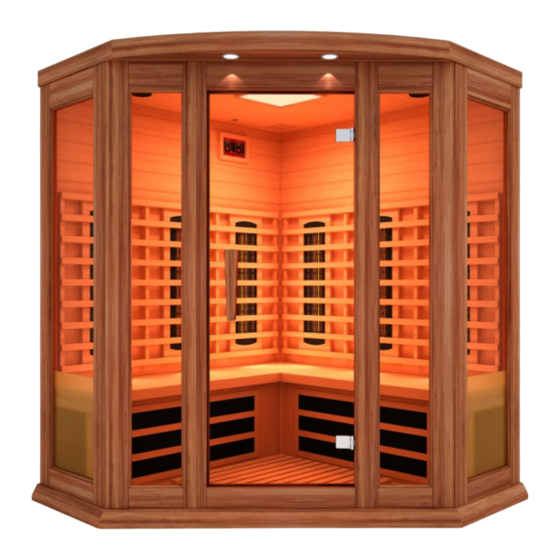

- Page 1 Infrared Sauna Instruction Manual Models MX-M356-01 (SJ-8323) 3 Person Corner Infrared Sauna FOR INFRARED MODEL SAUNAS RED CEDAR MODELS FOR INDOOR USE ONLY 120V/20AMP DEDICATED CIRCUIT REQUIRED...
-
Page 2: Table Of Contents
Thank you for choosing our 3-Person Corner Infrared Sauna! Table of Contents ===================================== Page Important Safety Guides…………………………………………………..… Introduction…………………………………………………………...…….… Assembly…………….…………….………………………………………….. Schematic Diagram………………………….…………………………..…. Sauna Operation…...………………………………………………………..… Tips For Using Your Sauna…………………………………………….…..…. Safety Instructions……………………………………………………..………. Safeguards For Your Sauna…..………………………………….………….… 19 Troubleshooting..……………………………………………………….…..…… 19 Maintenance………………………………………………………….………..… 21 Transportation and Storage…………………………………………………… Warranty…………………………………………………………………..…...…... -
Page 3: Important Safety Guides
READ IMPORTANT SAFETY GUIDES BEFORE USING! READ AND FOLLOW ALL INSTRUCTIONS A). Please following all warning labels and markings on the sauna room. B). Do not install any receptacles on the interior or exterior walls of the sauna room. C). No locking devices are installed or shall be installed on the door of the sauna room which could result in entrapment within the sauna room. -
Page 4: Introduction
M). Never sleep inside the sauna. N). Do not use any type of cleaning agents on the interior of the sauna. Only wipe down with a cloth and water. O). Do not stack or store any object on top or inside the sauna. P). - Page 5 and reduce stress. Infrared saunas also improve symptoms of insomnia and other stress related disorders. Reduce toxins and improve complexions: Perspiring in a lower temperature environment activates the sweat glands and expels toxins and heavy metals from the body. Highlights a.
- Page 6 ARE INFRARED RAYS SAFE? Because infrared rays are part of sunlight, they are not only safe but also highly beneficial to our bodies on a cellular level. Health professionals have used infrared heat lamps for decades to treat muscle and joint problems. In hospital baby care units, incubators are often equipped with infrared heating systems to keep newborn babies warm.
-
Page 7: Assembly
After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL). Currently, there is no consensus on the potential health hazard from any exposure to EMF. The mainstream scientific evidence suggests that low-power, low-frequency, electromagnetic radiation associated with household currents like that of the infrared sauna does not constitute a short or long term health hazard. -
Page 8: Schematic Diagram
MX-M356-01 (SJ-8323) *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. - Page 9 3. 3-person sauna models are packed into three cartons. For example: C/NO: A = A OF ABC. See FIG-1 FIG-1 Cartons 4. See the assembly diagram overview below. Please note that the assembly diagram is for a quick reference visual guide only. Parts and accessories may vary and are subject to change. Backrests are sold separately.
- Page 10 Front and Sides have a slant FIG-3 Placing Floor Panel 5. Place the Right Back Panel up and onto the Floor Panel. One adult will need to hold the Right Back Panel while the other adult continues to the next step. See FIG-4 FIG-4 Assembling Right Back Panel Align the Left Back Panel with the Floor Panel and Right Back Panel.
- Page 11 7. The Right Back Panel will align with the Right Side Panel. Once they are aligned and fit together sung and tight, use the latches to buckle together. Do the same for the Left Back Panel and Left Side Panel. Please note that the buckle has a guide tab that must be placed in the guide slot for alignment.
- Page 12 FIG-9 Assembling the Front Panel 10. Next, insert the Long Bench Heater Panel parallel to the Right Back Panel and into the corresponding wood guide slots on the Left Back Panel and Right Side Panel. Insert the Short Bench Heater Panel parallel to the Left Back Panel and into the corresponding wood guide slots on the Left Side Panel and Long Bench Heater Panel.
- Page 13 12. Place (flop) cords/wires coming up to through the top of the wall panels to the outside of the wall panels to avoid damaging the cords/wires during the roof installation. Open the door, lift the Roof Panel up and over the sauna room, and gently lower it into place resting it on the wall panels. Make sure that all of the cords/wires are slipped through the corresponding holes in the Roof Panel.
- Page 14 13. Connect the control panel connectors. See FIG-17 FIG-17 Connecting control panel connectors Make sure all steps are completed correctly. Plug in the power cord to your wall outlet. Turn on the sauna at the control panel to confirm that the control panel is responding. If the control panel responds accordingly, then proceed in putting the Roof Dust Cover onto the Roof Panel.
-
Page 15: Sauna Operation
Sauna Operation 1. Precautions a. Please make sure your wall outlet meets the specifications required. Failure to meet the requirements may cause safety risks. a. Set the temperature and time to a comfortable level. The average used temperature range is between 118ºF – 122ºF. The average sauna session is approximately 20 –... - Page 16 pressed for three seconds, the setting will increase quickly. Decrease the temperature in the same manner by pressing the button. After the sauna reaches the desired temperature, the “Heat” light will turn off. d. Press the button to turn the light ON. If you want to use the Color Light Therapy System: While the interior light is ON, press and hold down the button for 2...
-
Page 17: Tips For Using Your Sauna
temperature button at the same time and then pressing the i. The Bluetooth function is built into the Control Panel. For the Bluetooth function, you first will need to pair your device with the sauna room. Open your device’s Settings Menu and then locate and open Bluetooth. -
Page 18: Safety Instructions
7. To help relieve sore and tense muscles, massage the affected areas during your sauna session. 8. To treat your ankles and feet more effectively, you can elevate them and move them close to one of the heat emitters to achieve a deep heating effect. 9. - Page 19 7. The use of alcohol, drugs, or medications (prescribed or non-prescribed) prior to or during the sauna session may lead to unconsciousness and/or other harmful physical injuries. 8. Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, diabetes, or other medical conditions should consult with a medical physician prior to using the sauna.
-
Page 20: Safeguards For Your Sauna
21. Some sauna models are equipped with reading and/or roof lamps. Because the lamp temperature will become very hot once powered ON, do not attempt to touch the lamp to avoid being burned. Do not attempt to touch it for at least 20 minutes or until it cools down completely if a need to touch it arises. - Page 21 Indicator light for function The heating indicator light is broken Replace the relevant control panel is not working The circuit board or components are Replace the circuit board broken The temperature sensor is broken check the connection of the temperature sensor Infrared Heater not The heater is broken Replace heater panel...
-
Page 22: Maintenance
Device will not connect to Bluetooth You can only connect a single device at a time. Make sure you do not have any other device connected Device will not connect to Bluetooth Reset the control panel by disconnecting the sauna’s power cord from the wall outlet for 15 minutes Device will not connect to Bluetooth Contact Customer Service... -
Page 23: Warranty
Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty. - Page 24 3. Outdoor applications 4. Normal wear and tear or weathering 5. Use of product not in accordance with instructions Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction.
-
Page 25: Warranty Card
WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
