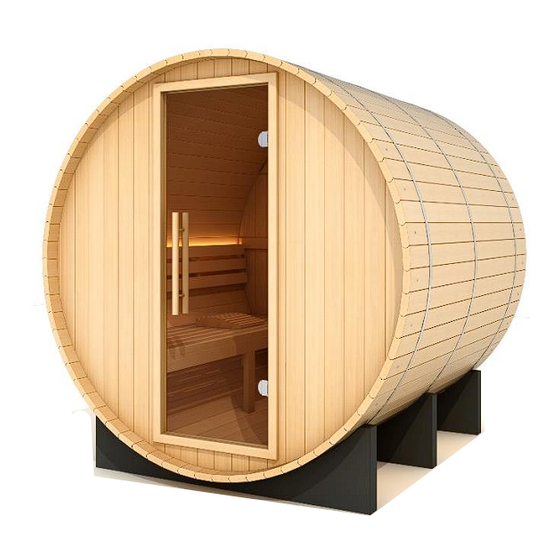

Red cedar barrel sauna
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

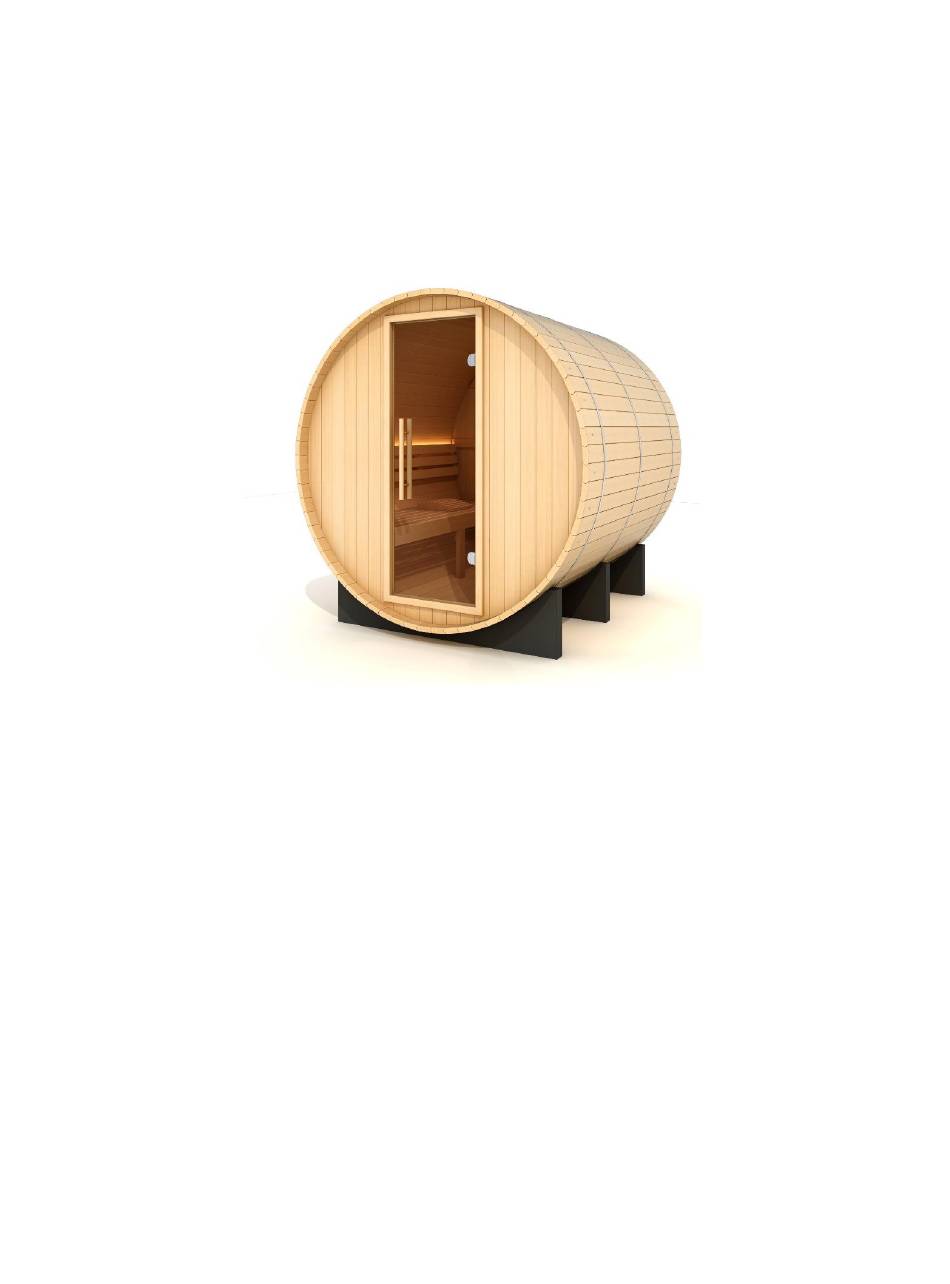

Red Cedar Barrel Sauna
GDI-B002-01/GDI-B004-01/GDI-B006-01
OWNER'S MANUAL
FOR BARREL MODEL SAUNAS
REQUIRES 120VAC 15 AMP CIRCUIT (FOR THE LIGHTING)
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and future
reference. Follow your local codes and ordinances. The stove heater power
requirements do vary among manufacturer. The stove heater must be installed by
a certified licensed electrician per the manufacturer's manual. The stove heater
must be installed per the electrical code in your area with reference to the breaker
and wire sizes. Models are subject to change.
2, 4, & 6 Person Models
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI-B002-01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Golden Designs GDI-B002-01

Summary of Contents for Golden Designs GDI-B002-01

  • Page 1 Red Cedar Barrel Sauna 2, 4, & 6 Person Models GDI-B002-01/GDI-B004-01/GDI-B006-01 OWNER’S MANUAL FOR BARREL MODEL SAUNAS REQUIRES 120VAC 15 AMP CIRCUIT (FOR THE LIGHTING) Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future reference.
  • Page 2 Thank you for your purchase. As you remove the parts from the boxes, be sure to examine them for damages. If your unit has any damages or missing parts, please contact Golden Designs Inc. See the Warranty section for more information. A Certified Licensed Electrician will be needed to install the electrical wiring.
  • Page 3 FOLLOW ALL INSTRUCTIONS AND BE CAUTIOUS OF SAFETY SYMBOLS. All electrical wiring must be performed by a qualified licensed electrician. While the barrel sauna comes in different sizes and features, the information within this manual is applicable to each. High Voltage Symbol: Be cautious as there is the presence of a high voltage current that flows through the equipment! General Caution Symbol: Be cautious as the equipment uses electrical current that can cause serious injury.
  • Page 4 9. Allow 30 seconds between turning the control system “On” and “Off”. By allowing 30 seconds between powering the control system “On” and “Off” will prolong the life of the unit. 10. Confirm that you adhere to the correct power requirements of the control system. Connecting the control system to other than the required voltage can damage the control system and possibly cause serious injury.
  • Page 5 25. If you have any medical condition, you must consult with your medical doctor before using the sauna. 26. Be cautious not to over extend yourself after an intense exercise workout by using the sauna. You can let the body cool down for 10 - 20 minutes before entering the sauna.

  • Page 6: Table Of Contents

    READ ALL INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY. TABLE OF CONTENTS Components Basic Dimensions Assembly Instructions Using the Barrel Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 7: Components

    Components GDI-B002-01 (SJ-8141) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 8 GDI-B002-01 (SJ-8141) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 9 GDI-B002-01 (SJ-8141) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 10 GDI-B002-01 (SJ-8141) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 11 Components GDI-B004-01 (SJ-8241) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 12 GDI-B004-01 (SJ-8241) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 13 GDI-B004-01 (SJ-8241) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 14 GDI-B004-01 (SJ-8241) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 15 Components GDI-B006-01 (SJ-8341) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 16 GDI-B006-01 (SJ-8341) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 17 GDI-B006-01 (SJ-8341) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 18 GDI-B006-01 (SJ-8341) - continued *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 19 Each Barrel Sauna will need between 66-68 staves plus 1 set of the staves (narrow) for assembly. You will end up with some extra staves (wide) and some extra staves (narrow). The rain cover is an optional accessory. Stave (wide) Stave (narrow set) What’s Needed: 3 Adults...

  • Page 20: Basic Dimensions

    Basic Dimensions GDI-B002-01 (SJ-8141) 2-Person Model...
  • Page 21 Basic Dimensions GDI-B004-01 (SJ-8241) 4-Person Model...
  • Page 22 Basic Dimensions GDI-B006-01 (SJ-8341) 6-Person Model...

  • Page 23: Assembly Instructions

    Assembly Instructions 1. Place Bottom Support Cradles Place the bottom support cradles at their desired locations. See figure 1. Determine the front and rear positions of the support cradle according to the marks on the floor. The 2-person model will have (3) support cradles. The 4-person model will have (3) support cradles.
  • Page 24 17” 17” 3.7” 72” figure 2 figure 2a 3. Place Staves On Support Cradles Align the two ends of the staves. Carefully and accurately place them into the clamping staves. Use the leveler to make sure that each stave is placed level and straight.
  • Page 25 Allen Wrench to screw the M4*50 to mount these staves to the support cradles. Do not use nails/screws on any staves you just installed except for the first stave. See figure 4. GDI-B002-01 has 6 Stainless Steel Screws GDI-B004-01 has 6 Stainless Steel Screws GDI-B006-01 has 8 Stainless Steel Screws figure 4 5.
  • Page 26 B. Two people will need to lift the rear panel up and into the groove on the staves. Make sure the rear wall is positioned at where the rear of the barrel sauna will be and align the slots to accept the rear panel placement. One person will need to hold the rear panel in place to prevent it from falling.
  • Page 27 Adjust front panel to be level. Front panel must fit into figure 6b 7. After Placing Front Panel Onto Platform You can use one of the staves to hold the front and the rear panels in place. Make sure the groove on each end of the stave fits onto the front and rear to hold them stationary in place.
  • Page 28 figure 8 Attach at every other stave. 9. Install Staves After reaching the 21 stave on the right side (when standing and facing the front door of the barrel sauna), you can stop on the right side and continue to install the staves from the left side until you have almost reached the right side.
  • Page 29 tighten. Be sure not to over tighten. In additional, you will need to check the tightness of the stainless steel bands every 6-12 months. See figure 10. 17MM Wrench figure 10 Attention: The joint position of the stainless steel band should be near the top and to the inside of the support cradles.
  • Page 30 The bench support wood consists of two pieces for GDI-B002-01, two pieces for GDI-B004-01, and four pieces for GDI-B006-01. The bench support wood will mount vertically. For GDI-B002-01/GDI-B004-01, each bench support will need to be centered on each bench front wood plank.
  • Page 31 Model GDI-B006-01 GDI-B002-01 GDI-B002-01 GDI-B004-01 GDI-B006-01 GDI-B004-01 GDI-B006-01 (top) (bottom) (top) (bottom) figure 12a Mounted on the backside of the bench front wood plank 13. Install Bench Panel Start with the left side. Place the bench panel into position over the horizontal beam. Use the two/four screws (depending on model) to mount the bench into place.
  • Page 32 M4*50 =4pcs each backrest Stainless Steel Screws 2 screws for left side of each backrest and 2 screws for right side of each figure 14a backrest 15. Install Stove and Stove Guard The stove must be installed by a certified electrician per the manufacturer’s manual. Follow all of the stove’s manufacturer’s instructions when installing the stove.
  • Page 33 GDI-B002-01 (SJ-8141) figure 15a...
  • Page 34 GDI-B004-01 (SJ-8241) figure 15b...
  • Page 35 GDI-B006-01 (SJ-8341) figure 15c...
  • Page 36 16. Install Door Handle Install the door handle to the glass door. Use the two screws to screw one side of the door handle to the other side with the glass door in between. See figure 16. M8 *70 = 2pcs Stainless Steel Screws figure 16...

  • Page 37: Using The Barrel Sauna

    18. Installing the Optional Accessories You have the option of purchasing the additional accessories including the drink shelf, magazine rack, robe hook, head rest, and leg rest. Use the provided screws to install the accessories as seen below in figure 24. It is recommended to drill a ¼” pilot hole to prevent cracking the wood.
  • Page 38 Barrel Sauna Dimemensions GDI-B002-01 (SJ-8141) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 39 Barrel Sauna Dimemensions GDI-B004-01 (SJ-8241) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.
  • Page 40 Barrel Sauna Dimemensions GDI-B006-01 (SJ-8341) *The above assembly diagram is for a quick reference visual guide only. All sauna models may not be shown. Parts and accessories do vary and are subject to change.

  • Page 41: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) The ventilation vent is installed on the sauna and should never be obstructed.
  • Page 42 5.) Pregnant or possibly pregnant women should contact their physician prior to using the sauna. Excessive temperature has a high potential for causing fetal damage during pregnancy. 6.) Hyperthermia Danger: the normal body temperature can't rise above 39°C (103°F). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and fainting.

  • Page 43: Safeguards For Your Sauna

    attempts will void the manufacturer’s warranty. 19) Please make sure the supplied power meets the specifications required. Failure to meet the requirements may cause safety risks. 20) Do not attempt to touch any electrical parts or make repairs on your own when using the sauna.

  • Page 44: Troubleshooting

    note that the heater must be OFF and covered when cleaning the interior of the sauna so not to damage any of the components of the heater, especially if you hose down the interior of the barrel sauna. 8. Check the stainless steel bands from time-to-time as they may need to be tightened due to the wood swelling and contracting.

  • Page 45: Warranty

    Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the sauna room against defects in material and workmanship for the life of the product from the original date of purchase. The sauna is for indoor use or outdoor use depending on the model. When placed outdoors, a water proof cover or the sauna shingle roof may be installed to cover the sauna room for protection.
  • Page 46 ▪ Normal wear and tear or weathering ▪ Use of product not in accordance with instructions ▪ Improper use of the sauna ▪ Moisture or water seepage Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods.

  • Page 47: Warranty Card

    WARRANTY CARD Congratulations on your purchase from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
