GDI6202/GDI6424/GDI/6434/GDI6444/
GDI9202/GDI9424/GDI9434

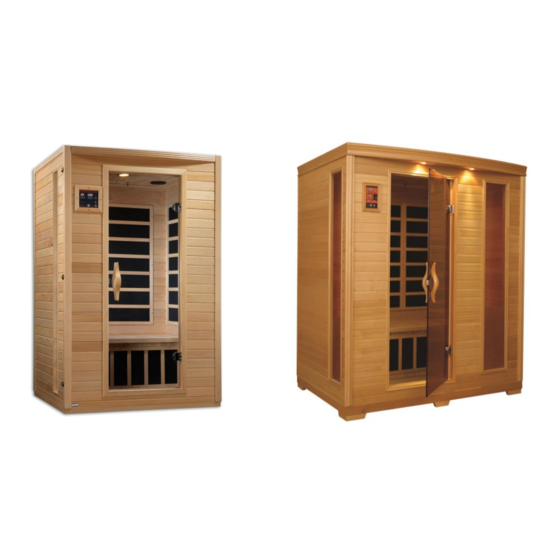

2 Person and 3 Person Model Saunas
OWNER'S MANUAL
FOR CARBON MODEL SAUNAS
FOR INDOOR USE ONLY
GDI6202/GDI9202 - 120V 15 AMP DEDICATED CIRCUIT
GDI6424/GDI6434/GDI6444/GDI9424/GDI9434 - 120V 20 AMP DEDICATED CIRCUIT
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GDI6202 and is the answer not in the manual?

Questions and answers

Related Manuals for Golden Designs GDI6202

Summary of Contents for Golden Designs GDI6202

  • Page 1 OWNER’S MANUAL FOR CARBON MODEL SAUNAS FOR INDOOR USE ONLY GDI6202/GDI9202 - 120V 15 AMP DEDICATED CIRCUIT GDI6424/GDI6434/GDI6444/GDI9424/GDI9434 - 120V 20 AMP DEDICATED CIRCUIT Sauna: Now you can enjoy the European secret for youthful vitality. Carefully and thoroughly read this manual before using the sauna. We...
  • Page 2 WHAT ARE INFRARED RAYS? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 3 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.
  • Page 4 Benefits include, but are not limited to: - Pain relief from Rheumatoid Arthritis - Relaxing muscle spasms - Increases blood circulation - Cardiovascular conditioning - Clears rashes, acne - Reduces cellulite - Removes toxins and mineral waste - Reduces stress and fatigue - Enhances skin tone SAUNA MAINTENANCE Since infrared saunas do not require hot rocks, water, or steam to operate, they require very little...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Product Introduction Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.

  • Page 6: Parts Description

    PARTS DESCRIPTION GDI6202 GDI6444...
  • Page 7 I. Power Supply (Control Box) The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it as seen below. (see Figure 1) Figure 1 MAIN POWER main power of the sauna room HT1, HT2, HT3, HT4 emitter power output cords...
  • Page 8 III. CD/Radio (optional) The multifunction stereo features an FM receiver, CD player, colorful and wide LCD screen, volume /tone/balance controls, and an AUX input. (see Figure 4) Figure 2 (Model Radio May Vary) IV. Buckles A. External Buckles The external buckles are used to connect the REAR WALL PANEL to the LEFT SIDE WALL PANEL and RIGHT SIDE WALL PANEL.
  • Page 9 C. Wall Panels Will Be Placed Up Onto The FLOOR PANEL The FLOOR HEAT EMITTER PANEL is located towards the front of the sauna room. The arrows in the Figure 5 below are indicating where the wall panels will be placed up onto the FLOOR PANEL.
  • Page 10 Figure 7 C. Roof Panel The ROOF PANEL houses the power supply, speakers, MP3 AUX jack, and reading lamp. Once installed, all the wiring harnesses, plugs, and connections will sit on the exterior side of the roof.

  • Page 11: Assembly Instructions

    Assembly Instructions A. Choose a good location to assemble the sauna The location must be dry, leveled, and away from any source of water MAIN POWER cord must be easily accessible Two adults are required for installation Wood cabin installation order: Floor Panel  Front Wall Panel  Left Side Wall Panel  Right Side Wall Panel ...
  • Page 12 Floor Heater Cord Figure 8 C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL and LEFT SIDE WALL PANEL Place the FRONT WALL PANEL up onto the FLOOR PANEL. Align the Metal Guide Insert Brackets on the FRONT WALL PANEL and the LEFT SIDE WALL PANEL. The LEFT SIDE WALL PANEL will need to be lifted in order to lock the Metal Guide Insert Brackets onto the FRONT WALL PANEL.
  • Page 13 Figure 10 E. Installing the BENCH HEAT EMITTER PANEL and BENCH Installing the BENCH HEAT EMITTER PANEL can be a little tricky. You will need to slide the BENCH HEAT EMITTER PANEL into place at an angle as indicated in the pictures below. (see Figure 11) Plug in the BENCH HEAT EMITTER connector to the corresponding inlet located on the REAR WALL or SIDE WALL PANEL.
  • Page 14 Installing the ROOF PANEL The side of the ROOF PANEL with the power supply (control box) is the top of the ROOF PANEL. The edge nearest the power supply is the front of the ROOF PANEL. Be careful of the wires coming from the SIDE and REAR PANELS when you set the ROOF PANEL down onto the panels.
  • Page 15 Figure 18 H. Installing the TEMPERATURE SENSOR and Optional MAGAZINE RACK/TOWEL RACK/SHELF Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 19) Figure 19 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged during transit.
  • Page 16 Figure 22 Figure 23 Putting on the ROOF COVER Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord through the hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.

  • Page 17: Operating The Sauna

    K. Installing the CD/RADIO (optional) 1. Unscrew the lock screws on the top of CD player. (see figure 18) 2. Connect the plug from the CD/RADIO with the plug coming down from the roof and the left/right speaker plugs. (see figure 19) 3.
  • Page 18 Plug the sauna into the outlet receptacle. Press the POWER button once. The POWER light will come on, the TIME DISPLAY will show 90 (minutes), the TEMPERATURE DISPLAY will show 66 (degrees Celsius), and the control panel will flash. Press the up/down arrows under the TIME DISPLAY to adjust the amount of time you want the sauna to remain on.
  • Page 19 Chromotherapy/Color Therapy Lighting Remote Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...

  • Page 20: Tips For Using Your Sauna

    Tips for using Your Sauna 1) If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2) Drink water prior to, during, and after your sauna session to replenish body fluids. 3) To regulate the set temperature inside the sauna to your comfort level, use the movable roof ventilation or leave the door open slightly.

  • Page 21: Safeguards For Your Sauna

    Persons suffering from obesity or with a medical history of heart disease, low or high blood pressure, circulatory system problems, or diabetes should consult a physician prior to using the sauna. Persons using medications should consult a physician before using the sauna. Some medications may induce drowsiness while others may affect the heart rate, blood pressure, and/or blood circulation.

  • Page 22: Troubleshooting Guide

    Troubleshooting Guide 1. No Heat Coming From Some Of The Heat Emitters Solution: Check to make sure all the heat emitter cords are properly connected, including the cord to the heat emitter underneath the bench (if applicable). Go to the roof, and also check that the heat emitter cords are properly connected to the cords on the roof and that those cords are properly plugged into the power supply.
  • Page 23 inside the sauna. Then go to the control panel and press the power button. If the heat emitters now heat, then the temperature sensor was the cause of the problem. You may have to wait about five minutes to confirm if the heat emitters are generating heat. Remove the original temperature sensor from its hole and replace it with the spare one.
  • Page 24 Limited Lifetime Warranty *Limited Lifetime Warranty: Golden Designs, Inc. warranties the heating elements and electronics against defects in material and workmanship for the life of the product from the original date of purchase. This sauna is for INDOOR use only. Placing your sauna outdoors will VOID this warranty.
  • Page 25 PAGE INTENTIONALLY LEFT BLANK...

  • Page 26: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 1920 Proforma Ave. Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
