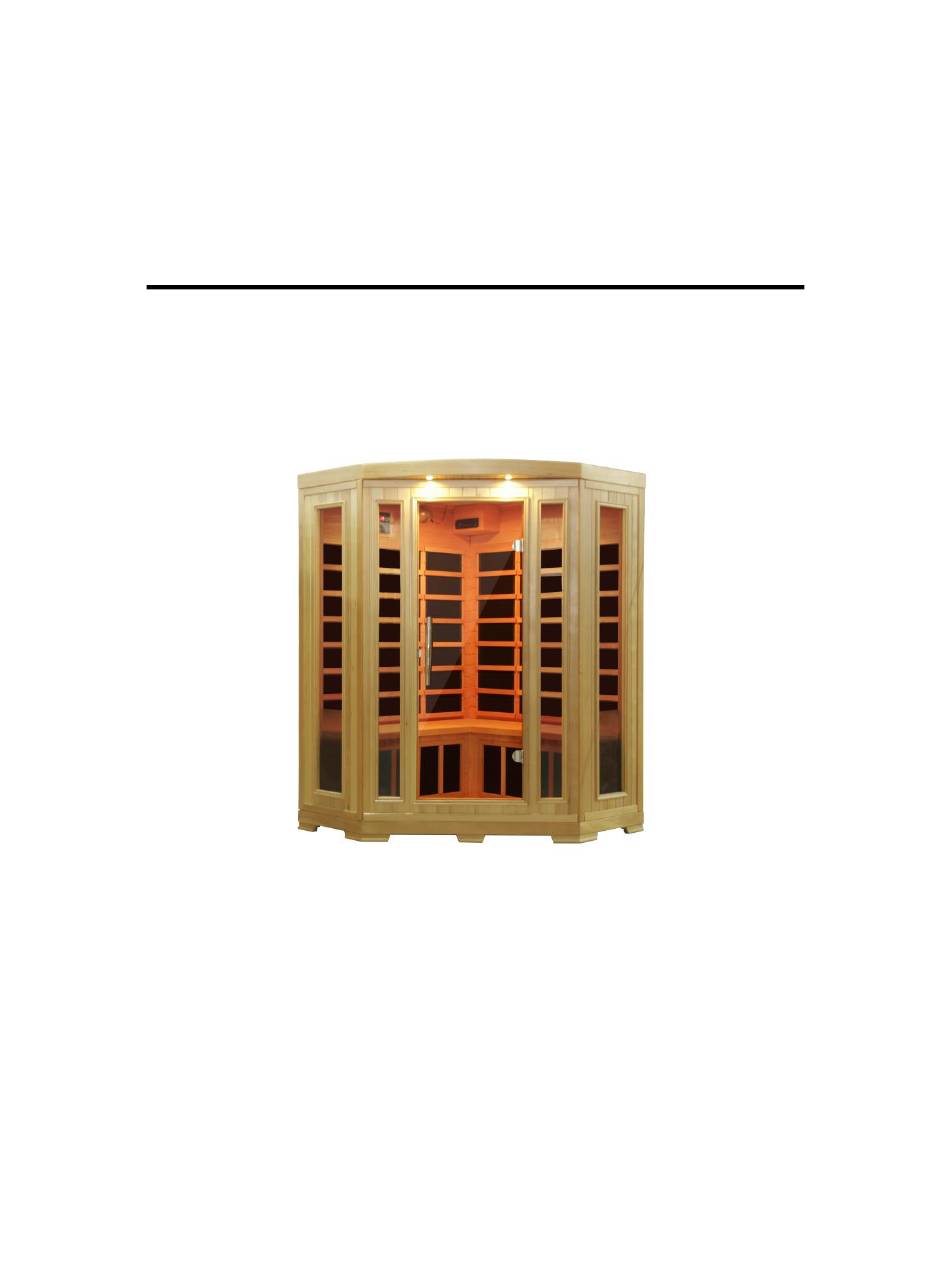

P6-Series
Infrared Sauna Instruction Manual
Model: P6-H356-01
3 Person FAR Infrared Sauna
CARBON MODEL SAUNA
FOR INDOOR USE ONLY
120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating the
sauna. We recommend keeping this Owner's Manual for regular review and
future reference.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Golden Designs P6 Series

Summary of Contents for Golden Designs P6 Series

  • Page 1 P6-Series Infrared Sauna Instruction Manual Model: P6-H356-01 3 Person FAR Infrared Sauna CARBON MODEL SAUNA FOR INDOOR USE ONLY 120VAC 20AMP Dedicated Circuit Required Carefully and thoroughly read this Owner’s Manual before using/operating the sauna. We recommend keeping this Owner’s Manual for regular review and future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
  • Page 3 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 3mG-5mG, and our Near Zero EMF/Full Spectrum models range at less than 3mG (NIR heaters range at about 5mG-7mG at the same approximate 2 inches) EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL).
  • Page 5 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.

  • Page 6: Visual Assembly Diagrams

    *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* Visual Assembly Diagrams P6-H356-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. BACKRESTS SOLD SEPARATELY.

  • Page 7: Parts Description

    PARTS DESCRIPTION P6-H356-01 *THE ABOVE ASSEMBLY DIAGRAM IS FOR A QUICK REFERENCE VISUAL GUIDE ONLY. ALL SAUNA MODELS MAY NOT BE SHOWN. PARTS AND ACCESSORIES DO VARY AND ARE SUBJECT TO CHANGE. BACKRESTS SOLD SEPARATELY.
  • Page 8 Highlights Power Supply (Control Box) The POWER SUPPLY is the control center of the sauna room. It is installed on the topside of the ROOF PANEL and has inputs/outputs connected to it. (see Figure 1) Figure 1 POWER IN - main power of the sauna room HT1, HT2, HT3, HT4, HT5, HT6 –...
  • Page 9 III. MP3 Auxiliary Port The MP3 Auxiliary Port allows you to connect a MP3 player or other device with the auxiliary function to the speakers in the sauna room for your listening pleasure. (see Figure 2) Figure 2 Buckles and Guide & Guide Inserts A.
  • Page 10 V. Wood Guide Inserts on the Floor Panel The FLOOR HEAT EMITTER PANEL is typically located towards the front of the sauna room. The arrows in Figure 4 below are indicating where the wall panels will be placed up onto the FLOOR PANEL. All models will have the raised ¼ round molding on the top side of the FLOOR PANEL.
  • Page 11 Understanding The Wall Panels The SIDE WALL PANELS will have a single stationary glass panel in each of them. The REAR WALL PANELS will have 3 heat emitter panels each. Both REAR WALL PANELS will have heater cords coming from the top of each wall panel which will be connected on the roof once the ROOF PANEL is placed on top.

  • Page 12: Assembly Instructions

    Assembly Instructions Please note that your sauna has been completely assembled and tested at the factory prior to packaging. Please further note that the rear wall panel is intentional warped as part of the overall design. Two adults will be needed to assemble the sauna room.
  • Page 13 C. Installing the FRONT WALL PANEL, RIGHT SIDE WALL PANEL, and LEFT SIDE WALL PANEL Place the FRONT WALL PANEL up and onto the FLOOR PANEL. Align the guide and guide inserts on the FRONT WALL PANEL and the LEFT SIDE WALL PANEL (or RIGHT SIDE WALL PANEL as the order of installing the side wall panels is not important).
  • Page 14 Figure 10 Figure 11 E. Installing the BENCH HEAT EMITTER PANELs and BENCH 1. Slide down the longer of the two BENCH EMITTER PANELs by lining up its sides with the vertical guides on the RIGHT SIDE WALL PANEL and LEFT REAR WALL PANEL. Make sure it slides all the way down. Next, do the same with the short of the BENCH EMITTER PANEL.
  • Page 15 Once the longer BENCH is installed, you can install the shorter BENCH. Make sure both BENCHES fit snug up against the rear wall panels. (see Figure 13) Figure 13 F. Installing the ROOF PANEL 1. The side of the ROOF PANEL with the power supply (control box) is the top of the roof panel.
  • Page 16 G. Connecting the plugs on the ROOF PANEL 1. Connect the plugs according to their respective labels. (see Figure 15) 2. Connect the CTRL plug from the power supply box to the CTRL plug from the control panel. Then screw together. (see Figure 16) 3.
  • Page 17 I. Installing the RADIO (radio model subject to change) 1. Locate the RADIO and remove it from any packaging. (see Figure 19) 2. Connect the plug from the RADIO with the plug coming down from the roof and the left/right speaker plugs. (see Figure 20) 3.
  • Page 18 J. Installing the TEMPERATURE SENSOR and optional accessories (varies by model) Enter the sauna and remove the protective covering (masking tape) from the TEMPERATURE SENSOR. Situate the TEMPERATURE SENSOR so that it is vertical and pointing downward. (see Figure 24) Figure 24 Note: Some sauna models are shipped with a spare TEMPERATURE SENSOR in case the TEMPERATURE SENSOR is damaged during transit.

  • Page 19: Operating The Sauna

    Operating the Sauna Control Panel Power On/Off: Press to control the main power of the sauna Power Indicator: Indicates the status of the sauna’s main power Work Start/Stop: Press to control the working functions of the sauna Work Indicator: Indicates the working status of the sauna Heat Indicator: Indicates the status of heating function Light: Press to control the lighting function Time Display: Displays the heating time of the sauna in minutes...
  • Page 20 degrees Fahrenheit / 46 degrees Celsius as a reference starting point for a time period of about 20 to 30 minutes (this represents the actual time you are in the sauna at the desired temperature). As you become more comfortable and familiar with the sauna, you can increase the temperature and time period according to your personal preference.
  • Page 21 system. If you need to reset the Bluetooth/Aux system, you can do so by unplugging the sauna’s power cord for 15 minutes. 10. The MP3 Jack will allow you to connect your musical device using the AUX wire. Plug one end of the AUX wire into your musical device and the other end into the MP3/AUX Jack on the radio.

  • Page 22: Tips For Using Your Sauna

    Tips for using Your Sauna 1. If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2. Drink water prior to, during, and after your sauna session to replenish body fluids. 3.
  • Page 23 4. Do not use the sauna immediately following strenuous exercises. Wait at least 30 minutes to allow the body to cool down completely. 5. Pregnant or possibly pregnant women should contact their medical physician prior to using the sauna. Excessive temperatures have a high potential for causing fetal harm during pregnancy.

  • Page 24: Safeguards For Your Sauna

    19. Do not attempt to make any repairs yourself unless authorized by the manufacturer or its agent. If a problem occurs with the sauna, please contact the manufacturer or its agent immediately to avoid safety risks. Unauthorized repair attempts will void the manufacturer’s warranty.
  • Page 25 The circuit board or components Replace the circuit board are broken The temperature sensor is broken check the connection of the temperature sensor Infrared Heater not The heater is broken Replace heater panel heating up The wire junction or the heater’s Check that the connections are wire is not connected sung and tight...
  • Page 26 11. The Glass Door Is Rubbing The Door Jamb Solution: The glass door may need to be adjusted. The hinge styles do vary, but the adjustment is the same. To adjust the glass door, you will need two pieces of cardboard like in the image below. The below images are from our more common sauna models.
  • Page 27 Maintenance: Cleaning Do not use liquid cleaners or aerosol cleansers inside the sauna. Unplug the sauna from the wall outlet before cleaning. Use plain water and a soft cloth for cleaning. Do not use benzene, alcohol, or strong cleaning chemicals in or on the sauna. NOTE: Any chemical that can damage wood or be absorbed into the wood will damage the sauna.
  • Page 28 Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. under its brand names warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.

  • Page 29: Warranty

    Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods. This includes minor cracks due to wood expansion and contraction. Note: Since the wood used in construction has been kiln dried, a certain amount of expansion and contraction occurs in the wood in a sauna environment.
  • Page 30 PAGE INTENTIOANLLY LEFT BLANK...

  • Page 31: Warranty Card

    WARRANTY CARD Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.

This manual is also suitable for:
