Golden Designs Nebula Owner's Manual

1-2, 2, 3, & 4 person saunas
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GDI-8010-01 / GDI-8020-01 / GDI-8030-01 /
GDI-8040-01 / GDI-8530-01
1-2, 2, 3, & 4 Person Saunas
OWNER'S MANUAL
FOR CARBON MODEL SAUNAS
INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT (GDI-8010-01 / GDI-8020-01)
120VAC 20 AMP DEDICATED CIRCUIT (GDI-8030-01 / GDI-8040-01 / GDI-8530-01)
Sauna: Now you can enjoy the European secret for youthful vitality.
Carefully and thoroughly read this manual before using the sauna. We
recommend keeping this manual for regular review and future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nebula and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Golden Designs Nebula

Summary of Contents for Golden Designs Nebula

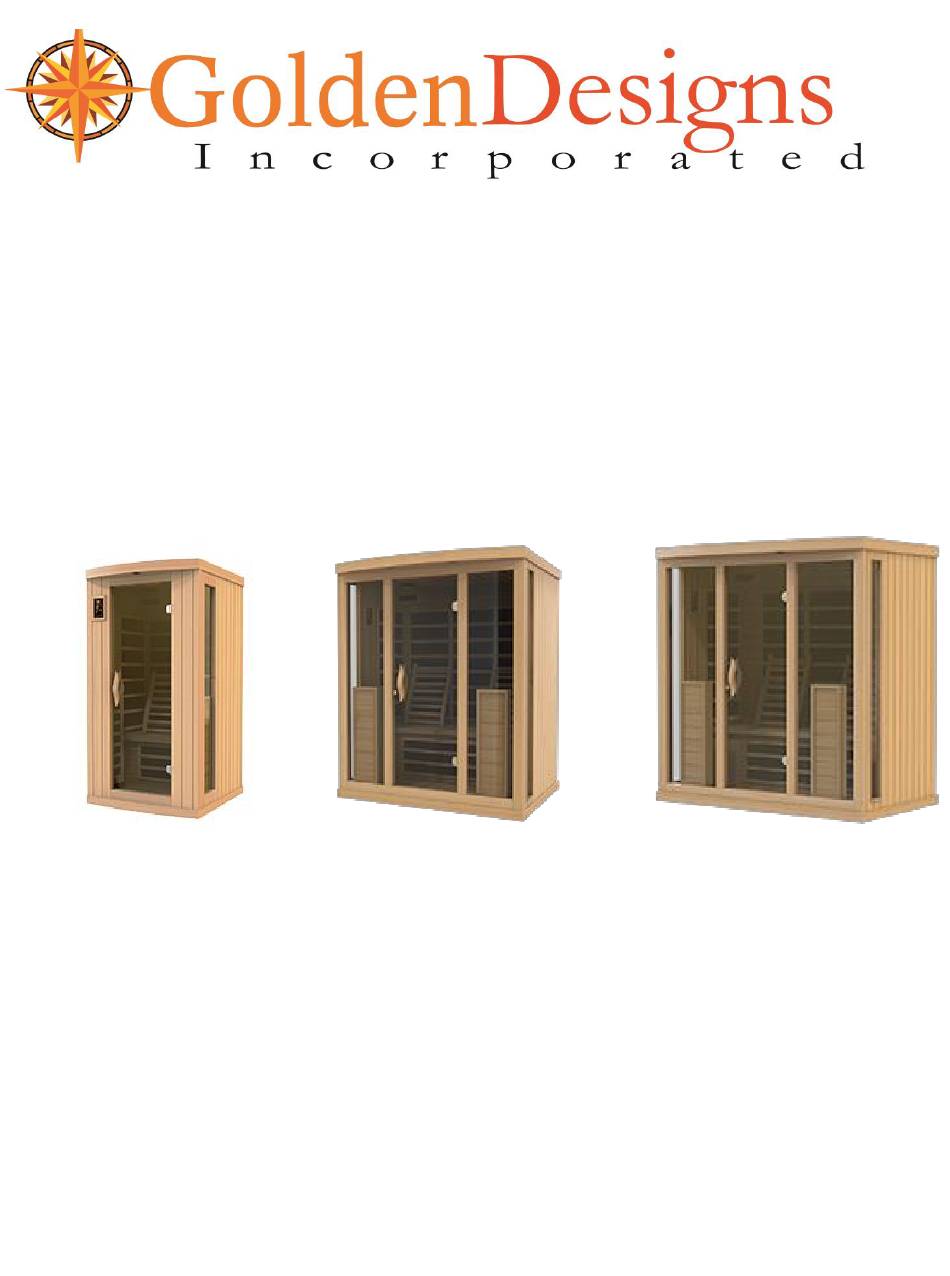

  • Page 1 GDI-8010-01 / GDI-8020-01 / GDI-8030-01 / GDI-8040-01 / GDI-8530-01 1-2, 2, 3, & 4 Person Saunas OWNER’S MANUAL FOR CARBON MODEL SAUNAS INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT (GDI-8010-01 / GDI-8020-01) 120VAC 20 AMP DEDICATED CIRCUIT (GDI-8030-01 / GDI-8040-01 / GDI-8530-01) Sauna: Now you can enjoy the European secret for youthful vitality.
