Owner's Manual
CARBON MODEL SAUNAS
SAUNAS ARE FOR INDOOR USE ONLY
120VAC 15AMP Dedicated Circuit Required
120VAC 20AMP Dedicated Circuit Required
Carefully and thoroughly read this Owner's Manual before using/operating
the sauna. We recommend keeping this Owner's Manual for regular review
and future reference.

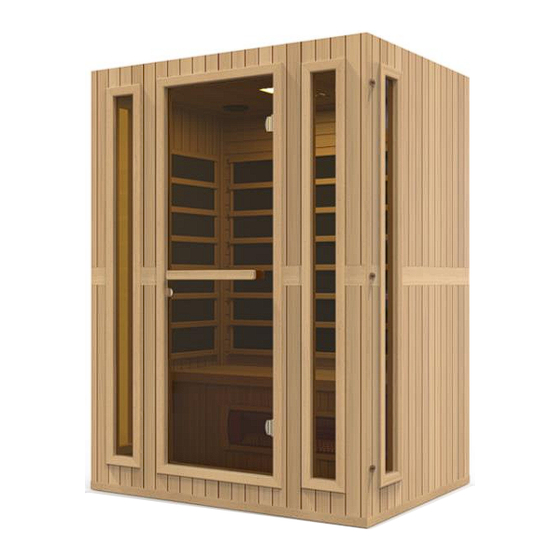

LS2 / LS3

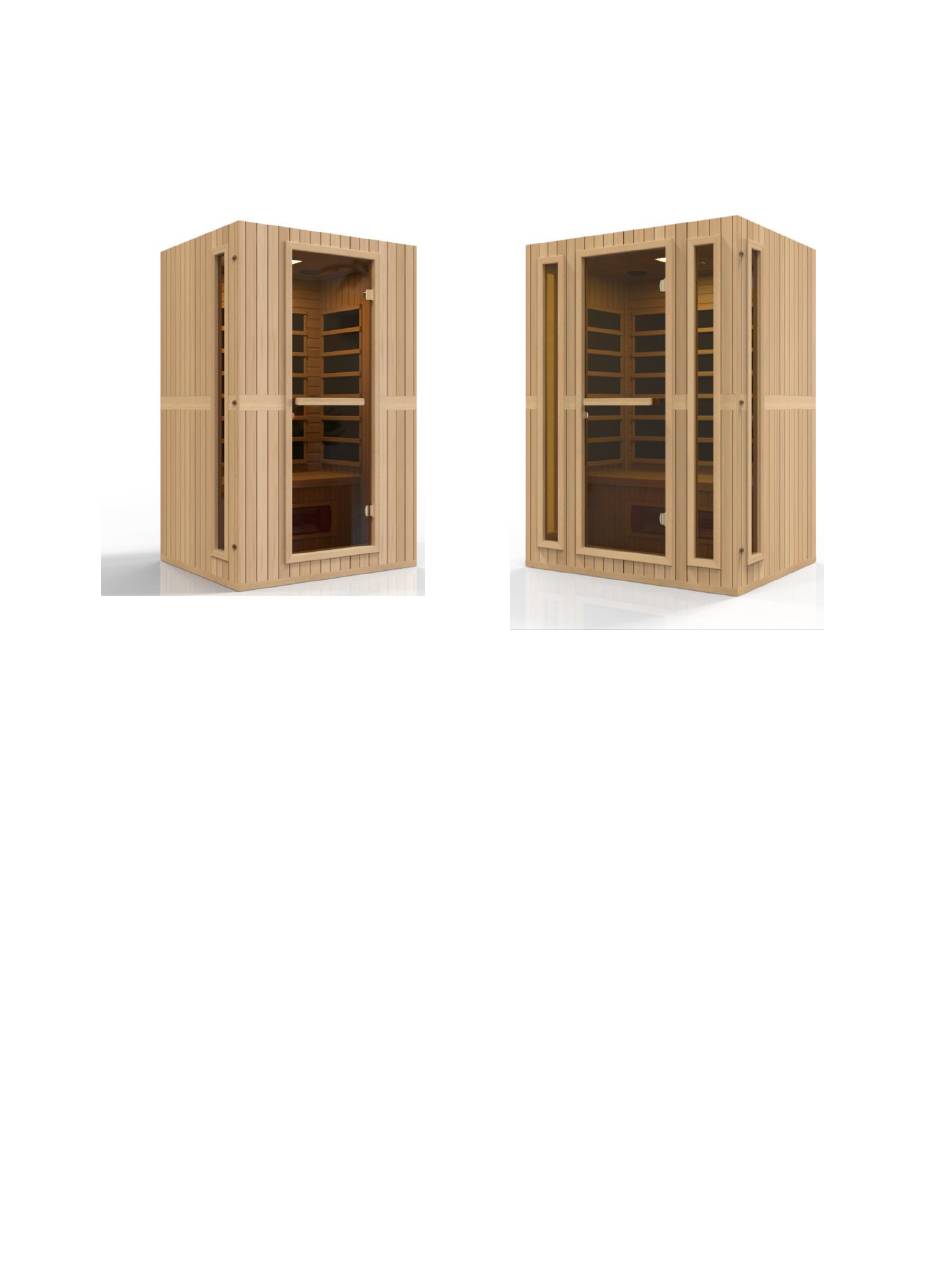

2 and 3 Person Sauna
1
(2 Person Models)
(3 Person Models)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Golden Designs LS3

Summary of Contents for Golden Designs LS3

  • Page 1 LS2 / LS3 2 and 3 Person Sauna Owner’s Manual CARBON MODEL SAUNAS SAUNAS ARE FOR INDOOR USE ONLY 120VAC 15AMP Dedicated Circuit Required (2 Person Models) 120VAC 20AMP Dedicated Circuit Required (3 Person Models) Carefully and thoroughly read this Owner’s Manual before using/operating the sauna.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Packing List Visual Assembly Diagrams Parts Description Assembly Instructions Operating the Sauna Tips for Using Your Sauna Safety Instructions Safeguards for Your Sauna Troubleshooting Guide Warranty Warranty Card WARNING: Visually inspect all heaters before assembly to make sure they are not damaged.
  • Page 3 What Are Infrared Rays? Infrared is the band of light we perceive as heat. We cannot see this band of light with the naked eye, but we can feel this type of light in the form of heat. Our sun produces most of its energy output in the infrared segment of the spectrum.
  • Page 4 EMF Levels from Common Homes Sources After many years and numerous studies on EMF exposure, no government body including the Occupational Safety and Health Administration (OSHA) have established permissible exposure limits (PEL). Currently, there is no consensus on the potential health hazard from any exposure to EMF.
  • Page 5 HOW IT WORKS Infrared Saunas differ from traditional saunas in that they use infrared radiant energy to directly penetrate into the body's tissue to produce perspiration. Traditional saunas use steam to heat the air inside the sauna, which then heats your body until you begin to perspire.

  • Page 6: Visual Assembly Diagrams

    *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* Visual Assembly Diagram *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary. Parts subject to change.
  • Page 7 *PLEASE READ INSTRUCTIONS BEFORE ASSEMBLY* Visual Assembly Diagram *The above assembly diagrams are for quick reference visual guides only. All sauna models are not shown. Parts and accessories may vary. Parts subject to change.

  • Page 8: Parts Description

    PARTS DESCRIPTION (optional) *PLEASE READ INSTRUCTIONS THOROUGHLY BEFORE ASSEMBLY*...
  • Page 9 I. Power Supply The POWER SUPPLY BOX is the control center of the sauna room. It is installed on the ROOF PANEL and has input/outputs connected to it. (see figure 1) Figure 1 II. MP3 Auxiliary Socket (optional on models with Bluetooth) The MP3 Auxiliary Socket allows you to connect a MP3 player or radio (with auxiliary out function) to the speakers for your listening pleasure.
  • Page 10 IV. Buckles A. External Buckles The external buckles are used to connect the wall panels together. (see figure Figure 3 V. Panel Descriptions For easier installation, please understand and distinguish the differences between each panel. A. Floor Panel When the floor panel faces upward, you will find (2) raised short moldings on the sides and (2) raised long moldings on the front and rear for LSIF-02.
  • Page 11 B. Understanding The Difference Between The Top And Bottom Of The Wall Panels The (4) panels are in the upright position when the moldings are at the top. The moldings will face inward. (see figure 5) Figure 5 C. Wall Panels Buckle Together Buckles are used to fasten the wall panels together.

  • Page 12: Assembly Instructions

    Assembly Instructions A. Choose a good location to install the sauna 1. The location must be dry, leveled, and away from any source of water 2. MAIN POWER cord must be easily accessible 3. Two adults are required for installation 4.
  • Page 13 D. Installing the REAR PANEL 1. Remove the protection paper (tape, if present) from the buckles. Place the REAR PANEL onto the recessed area on the FLOOR PANEL and up against the long molding. Attach the REAR PANEL to the SIDE PANELS and buckle the loops and arms together.
  • Page 14 Figure 9 Figure 10 Figure 11 F. Installing the ROOF PANEL 1. The side with the power supply box faces upward. 2. Be careful of the wires coming from the wall panels when you set the ROOF PANEL down onto the wall panels. Feed the wires up and onto the ROOF PANEL.
  • Page 15 Figure 12 G. Connecting the plugs on the ROOF PANEL 1. Connect the plugs according to the respective labels. 2. Be sure that all of the connections are connected snug and tight. Figure 13 H. Installing the TEMPERATURE SENSOR 1. Enter the sauna and remove the protective covering from the TEMPERATURE SENSOR.
  • Page 16 I. Putting on the ROOF COVER 1. Place the ROOF COVER over the top of the sauna. Be cautious when pulling the power cord through the circular hole in the roof cover. Gently place the ROOF COVER onto the ROOF PANEL. When the edges are aligned, screw the ROOF COVER to the roof panel.

  • Page 17: Operating The Sauna

    Operating the Sauna NOTE: Please check and confirm that the connections to the POWER SUPPLY, HEAT EMITTERS, and TEMPERATURE SENSOR are connected properly. The power supply voltage and frequency must match the requested voltage and frequency of the sauna (120VAC 15AMP Dedicated Circuit or 120VAC 20AMP Dedicated Circuit).
  • Page 18 To avoid burns, do not touch the heating element. 2. Operating The Sauna a. Review the electrical label on the sauna and then plug the sauna into the proper wall outlet. No other appliance can be operated on the same electrical breaker as the sauna when the sauna is in use. Proceed in turning on the sauna room using the ON/OFF button to activate the sauna.
  • Page 19 h. The Fahrenheit and Centigrade display can be switched by pressing and holding the TEMPERATURE side buttons at the same time and then pressing the The Bluetooth function is built into the Control Panel. For the Bluetooth function, you first will need to pair your device with the sauna room.

  • Page 20: Tips For Using Your Sauna

    Tips for using Your Sauna 1. If you take a hot/warm shower or bath before using your sauna, you may perspire more and experience more comfort. 2. Drink water prior to, during, and after your sauna session to replenish body fluids. 3.
  • Page 21 to using the sauna. Excessive temperatures have a high potential for causing fetal harm during pregnancy. 6. Hyperthermia Danger: The normal body temperature can’t rise above 103°F (39°C). Symptoms of excessive hyperthermia include dizziness, lethargy, drowsiness, and/or fainting. The effects of excessive hyperthermia may include, but are not limited to failure to perceive heat, physical inability to exit the sauna, unawareness of impending hazards, unconsciousness, and/or fetal harm in pregnant women.

  • Page 22: Safeguards For Your Sauna

    the manufacturer’s warranty. 20. Please make sure the outlet power supply meets the specifications required. Failure to meet the requirements may cause safety risks. 21. Some sauna models are equipped with reading and/or roof lamps. Because the lamp temperature will become very hot once powered ON, do not attempt to touch the lamp to avoid being burned.
  • Page 23 not working may have been damaged. Do not continue to operate. Contact the manufacturer for replacement parts. Solution: If the heat emitters are not working but the control panel displays the time and temperature, then the temperature sensor may not be plugged in properly or it may be damaged.
  • Page 24 and locate the power supply. Press the RESET button to reset the power supply. The RESET button is on the same side of the power supply as all the heater cord connections. Attempt to turn the sauna on at the control panel. Contact the manufacturer for any additional troubleshooting.
  • Page 25 Limited Lifetime Warranty 5 Year Limited Warranty: Golden Designs, Inc. under the Dynamic brand name warranties the wood, structure, heating elements, and electronics against defects in material and workmanship for a period of 1 to 5 years from the original date of purchase. This sauna is for INDOOR use only.

  • Page 26: Warranty

     Use of lacquer or paints  Sauna and other Golden Designs, Inc. products accessories placed on non-approved surfaces  Outdoor applications  Normal wear and tear or weathering  Use of product not in accordance with instructions  Worn out receptacle Surface cracks are not considered defects in material or workmanship, as they are normal characteristics of all woods.
  • Page 27 Congratulations on your purchase of an Infrared Sauna from Golden Designs, Inc. Please take the time to complete the following Warranty Card and mail it back to: Golden Designs, Inc. 3550 Jurupa Street, Unit B Ontario, CA 91761 Please include a copy of your sales receipt showing date of purchase as this will serve as proof of purchase.
