Cooling fan duct removal

Note: This is not a FRU.
1
Remove the right cover. See
2

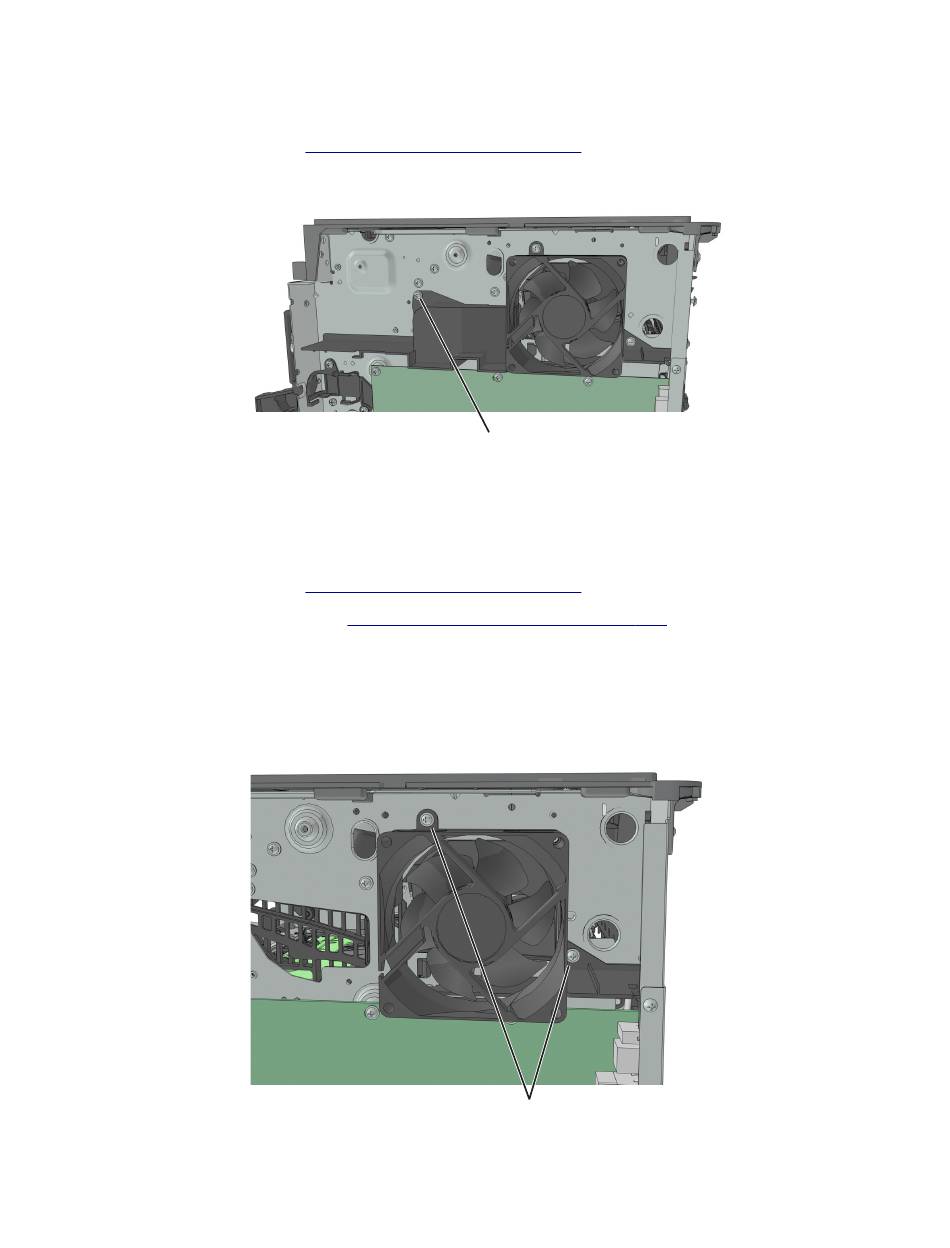

Remove the screw (A), and then remove the cooling fan duct.

Cooling fan removals

Cooling fan removal (MS510dn and MS610dn)
1
Remove the right cover. See
2
Remove the cooling fan duct. See
3
Disconnect the cable JFAN1 from the controller board.
4
Remove the two screws (A), and then remove the fan and the fan mount.
"Right cover removal" on page
"Right cover removal" on page
"Cooling fan duct removal" on page
