3.2.2. Threaded Holes on Metric OCTP Scan Cube Module

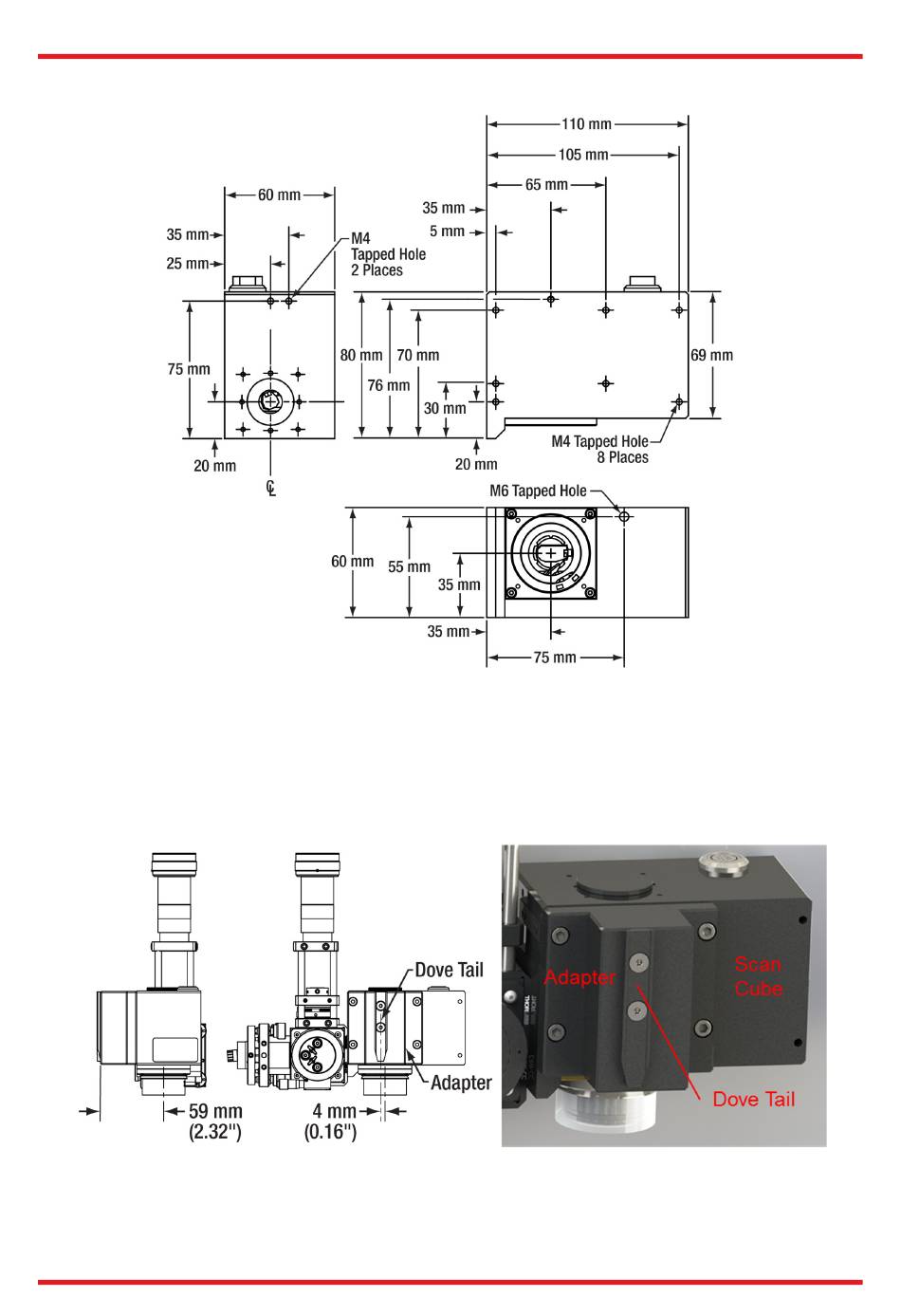

Figure 11 Drawing of Threaded Holes in a Metric OCTP Scan Cube Module

The OCTP ships with a mounting adapter and a dovetail mount, as shown in Error! Reference source not

found.. These accessories allow the scanner to be mounted to a Thorlabs OCT-STAND which ensures that the

objective is directly centered above the sample plate.

Figure 12 Scanner Mounting Adapter for the OCTP

Rev F, November 03, 2018
