Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: 262-728-7550
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2005, Sta-Rite Industries
DURA-JET
O
W
N
E
R '
INSTALLATION, OPERATION & PARTS

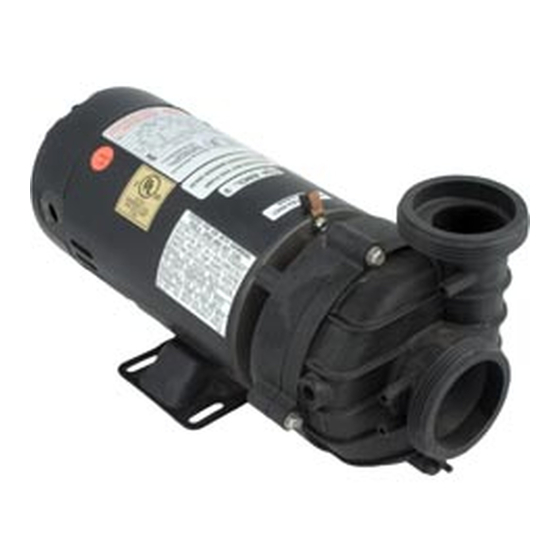

SPA PUMP
TM
S
M
A
N
U
A
L
This manual should be furnished to
the end user of this pump; its use
will reduce service calls, chance of
injury, and will lengthen pump life.
S377 (Rev. 9/2/05)
Advertisement
Table of Contents
Related Manuals for STA-RITE DURA-JET 5DJAFB-0001
Summary of Contents for STA-RITE DURA-JET 5DJAFB-0001
- Page 1 Sta-Rite Pool/Spa Group 293 Wright Street, Delavan, WI 53115 International: 262-728-5551, FAX: 262-728-7550 www.starite.com Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA S377 (Rev. 9/2/05) © 2005, Sta-Rite Industries...
-
Page 2: Table Of Contents
READ THIS Electrical ..............4-7 MANUAL CAREFULLY! Operation..............8 The Sta-Rite ‘DJ’ Series Spa Pump: Pump Service ............9-10 Storage/Winterizing ...........10 • Is designed to circulate hot water in spas and hot tubs. Troubleshooting Guide ..........11 •... -
Page 3: Installation
INSTALLATION Spa Fittings: Size and number of jets will have a major effect on jet Installation and wiring of pump should only be done by action. qualified, licensed personnel. Typical installations use up to four 7/8" or 3/4" diameter Pump mount must: jets or up to seven 1/2"... - Page 4 Install and bond pump according to local codes and ordi- To Wire a Two-Speed Motor: nances; use bonding lug on motor (see Figure 1). Use Wire the pump as shown in the diagram. solid copper conductor No. 8 AWG (8.4mm ) or larger.
- Page 5 TABLE IA – RECOMMENDED CIRCUIT BREAKER SIZE AND WIRING DATA AWG (mm ) Wire Gauge Size at 90° C Branch Voltage/ Full Circuit Dist in Ft. (M) - Service to Motor Model Hertz Load Breaker 0-100 101-200 201-300 (1 Phase) Amps Amp Rating (0-30)
- Page 6 TABLE IA (Continued)– RECOMMENDED CIRCUIT BREAKER SIZE AND WIRING DATA AWG (mm ) Wire Gauge Size at 90° C Branch Voltage/ Full Circuit Dist in Ft. (M) - Service to Motor Model Hertz Load Breaker 0-100 101-200 201-300 (1 Phase) Amps Amp Rating (0-30)
- Page 7 TABLE IA (Continued)– RECOMMENDED CIRCUIT BREAKER SIZE AND WIRING DATA AWG (mm ) Wire Gauge Size at 90° C Branch Voltage/ Full Circuit Dist in Ft. (M) - Service to Motor Model Hertz Load Breaker 0-100 101-200 201-300 (1 Phase) Amps Amp Rating (0-30)
-
Page 8: Operation
OPERATION Do not block pump suction! To do so with body may cause severe or fatal injury. Small children using spa must ALWAYS have close adult supervision! • Tub should have dual suction outlets to prevent body or hair entrapment. •... -
Page 9: Pump Service
PUMP SERVICE Hazardous voltage. Can shock, burn,or cause death. Disconnect power before working on pump or motor. Pump should only be serviced by qualified personnel. Figure 5 To avoid dangerous or fatal electrical shock haz- ard, disconnect power to motor before working on 7. -
Page 10: Storage/Winterizing
STORAGE/WINTERIZING 1. Close all valves on suction and return piping. 2. Remove drain plug in bottom of front plate. To prevent damage to components from 3. Drain all piping and storage tanks exposed to freezing fumes, store spa chemicals away from pump and spa. If temperatures. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE Read and understand safety and operating instructions in this manual before doing any work on pump! A. PUMP DOES NOT OPERATE 1. Check GFCI for proper operation according to GFCI manufacturer’s instructions. 2. Check for plugged impeller. Follow disassembly/as- sembly instructions under “Pump Service”, Page 9. -
Page 12: Repair Parts List
REPAIR PARTS LIST DURA-JET “DJ” SPA PUMP 2478 0596 Part For quick disconnect pipe Description Qty. Number connections, purchase separately Part No. 77703-0105 and Motor Chart Page 13 Part No. 77703-0108. Slinger 17351-0009 Kit Includes: Seal Plate 17400-0001 2 #38405-4094 2” Union Collars O-Ring 35505-7430 2 #35505-1244 O-Ring... - Page 13 Parts are common to all models listed except as noted; Motor (Key No. 1), Impeller (Key No. 6), and Volute (Key No. 7) are listed below. Motor Package Impeller Volute Model No. (Key No. 1) (Key No. 6) (Key No. 7) Cord 115 Volt, Single Speed DJAEA-0001...
- Page 14 REPAIR PARTS LIST DURA-JET “DJ” SPA PUMP 2478 0596 Part For quick disconnect pipe Description Qty. Number connections, purchase separately Part No. 77703-0105 and Motor Chart Page 15 Part No. 77703-0108. Slinger 17351-0009 Kit Includes: Seal Plate 17400-0001 2 #38405-4094 2” Union Collars O-Ring 35505-7430 2 #35505-1244 O-Ring...
- Page 15 Parts are common to all models listed except as noted; Motor (Key No. 1), Impeller (Key No. 6), and Volute (Key No. 7) are listed below. Motor Package Impeller Volute Model No. (Key No. 1) (Key No. 6) (Key No. 7) Cord 115 Volt Two-Speed DJAYEA-0082, -0182...
- Page 16 REPAIR PARTS LIST DURA-JET “DJ” SPA PUMP 2478 0596 Part For quick disconnect pipe Description Qty. Number connections, purchase separately Part No. 77703-0105 and Motor Chart Page 17 Part No. 77703-0108. Slinger 17351-0009 Kit Includes: Seal Plate 17400-0001 2 #38405-4094 2” Union Collars O-Ring 35505-7430 2 #35505-1244 O-Ring...
- Page 17 Parts are common to all models listed except as noted; Motor (Key No. 1), Impeller (Key No. 6), and Volute (Key No. 7) are listed below. Motor Package Impeller Volute Model No. (Key No. 1) (Key No. 6) (Key No. 7) Cord 230 Volt Two-Speed DJAYFB-3013, -3113, -9013, -9113...
-
Page 20: Warranty
• Complete a warranty registration at www.staritepool.com by clicking on “Register Products” and selecting Sta-Rite Pool OR • Complete bottom portion completely and mail within 10 days of installation to Sta-Rite, Attn.: Pool Warranty Dept., 293 Wright St., Delavan , WI 53115 Warranty Registration Card ■...
