1/2 HP
3/4 HP
JSACLC-A
JSADLC-A
Sta-Rite Pool/Spa Group
293 Wright Street, Delavan, WI 53115
International: 262-728-5551, FAX: 262-728-7550
www.starite.com
Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA
© 2005, Sta-Rite Industries

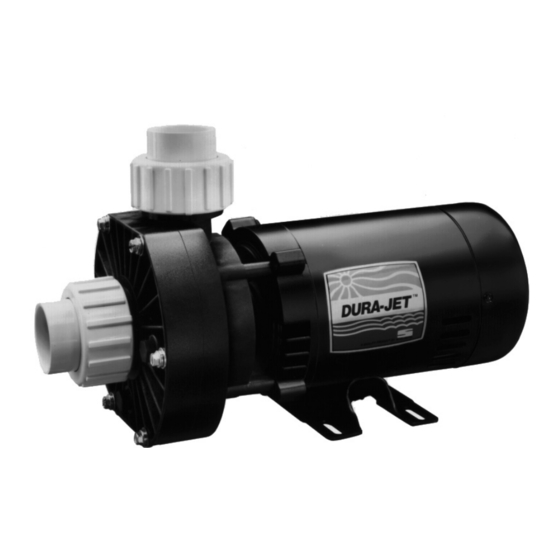

DURA-JET
O
W
N
E
R '
INSTALLATION, OPERATION & PARTS
3/4 HP
JSAYDLC-A
JSAYDLC-LA
SPA PUMP
TM
S
M
A
N
MODELS
1 HP
1 HP
JSAELC-A
JSAYELC-A
JSAYELC-LA
JSYE-100
U
A
L
1-1/2 HP
1-1/2 HP
JSAFLC-A
JSAYFLC-LA
JSAEFLC-A
JSAYFLC-230A
JSYF-150
This manual should be furnished to
the end user of this pump; its use
will reduce service calls and chance
of injury and will lengthen pump life.
S225 (Rev. 1/26/06)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for STA-RITE Dura-Jet
Summary of Contents for STA-RITE Dura-Jet
- Page 1 Sta-Rite Pool/Spa Group 293 Wright Street, Delavan, WI 53115 International: 262-728-5551, FAX: 262-728-7550 www.starite.com Union City, TN • Delavan, WI • Mississauga, Ont. • Murrieta, CA S225 (Rev. 1/26/06) © 2005, Sta-Rite Industries...
-
Page 2: Table Of Contents
To avoid unneeded service calls, prevent possible injuries, and get the most out of your pump, READ THIS MANUAL CAREFULLY! The Sta-Rite ‘JT’ Series Tub Pump: • Is designed to circulate hot water in jetted tubs. • Is an excellent performer; durable, reliable. -
Page 3: Safety Instructions
• Check all clamps, bolts, lids, and system accessories before testing. • Release all air in system before testing. • Tighten Sta-Rite trap lids to 30 ft. lbs. (4.1 kg-cm) torque for testing. • Water pressure for test must be less than 25 PSI (172 kPa). -
Page 4: Installation
INSTALLATION Installation and wiring of pump should only be done by qualified, licensed personnel. Pump mount must: Be Solid - Level - Rigid - Vibration free. (To reduce vibration and pipe stress, bolt pump to mount.) Be installed with pump suction inlet higher than tub suction fitting. (This al- lows pump to drain completely when tub is drained.) Have pump suction below tub water level when pump is running. -
Page 5: Electrical
ELECTRICAL Ground motor before connecting to electrical power supply! Failure to ground pump motor can cause serious or fatal electrical shock hazard! Do not ground to a gas supply line! To avoid dangerous or fatal electrical shock, turn OFF power to motor before working on electrical connections. - Page 6 Voltage: Voltage at motor must be not more than 10% above or below motor name- plate rated voltage or motor may overheat, causing overload tripping and re- duced component life. If voltage is less than 90% or more than 110% of rated voltage when motor is running at full load, consult power company.
-
Page 7: Operation
OPERATION Priming Pump: NEVER run pump dry! Running pump dry may damage seals, causing leakage and flooding! Fill tub to 2 inches (51mm) above top of jets before starting system. Do not block pump suction! To do so with body may cause severe or fatal injury. -
Page 8: Pump Service
PUMP SERVICE Pump should only be serviced by qualified personnel. To avoid dangerous or fatal electrical shock hazard, disconnect power to motor before working on pump or motor! No lubrication or regular maintenance are needed. If shaft seal is damaged, repair as follows: Hazardous voltage. - Page 9 5. Screw impeller onto shaft until it seats against shaft shoulder. Work slinger over end of impeller sleeve so it rides on sleeve (Figure 6). 6. Remount front plate; using pattern, shown in Figure 7, torque bolts to 30 inch-lbs. (34.5 cm-kg). BE SURE to start with bolt in 3 o’clock position as shown.
-
Page 10: Repair Parts List
REPAIR PARTS LIST DURA-JET MAX-E-JET SPA PUMP 1/2 through 1-1/2 HP Models Part Description Qty. Number Parts are common to all models listed except as noted; Motor Chart at Right Key Nos. 1, Motor; and 9, Impeller, are listed below. -
Page 11: Troubleshooting Guide
TROUBLESHOOTING GUIDE Read and understand safety and operating instructions in this manual before doing any work on pump! A. PUMP DOES NOT OPERATE 1. Check GFCI for proper operation according to GFCI manufacturer’s in- structions. 2. Check for plugged impeller. Follow disassembly/assembly instructions under “Pump Service”, Page 8. - Page 12 • Complete a warranty registration at www.staritepool.com by clicking on “Register Products” and selecting Sta-Rite Pool OR • Complete bottom portion completely and mail within 10 days of installation to Sta-Rite, Attn.: Pool Warranty Dept., 293 Wright St., Delavan , WI 53115 Warranty Registration Card ■...
