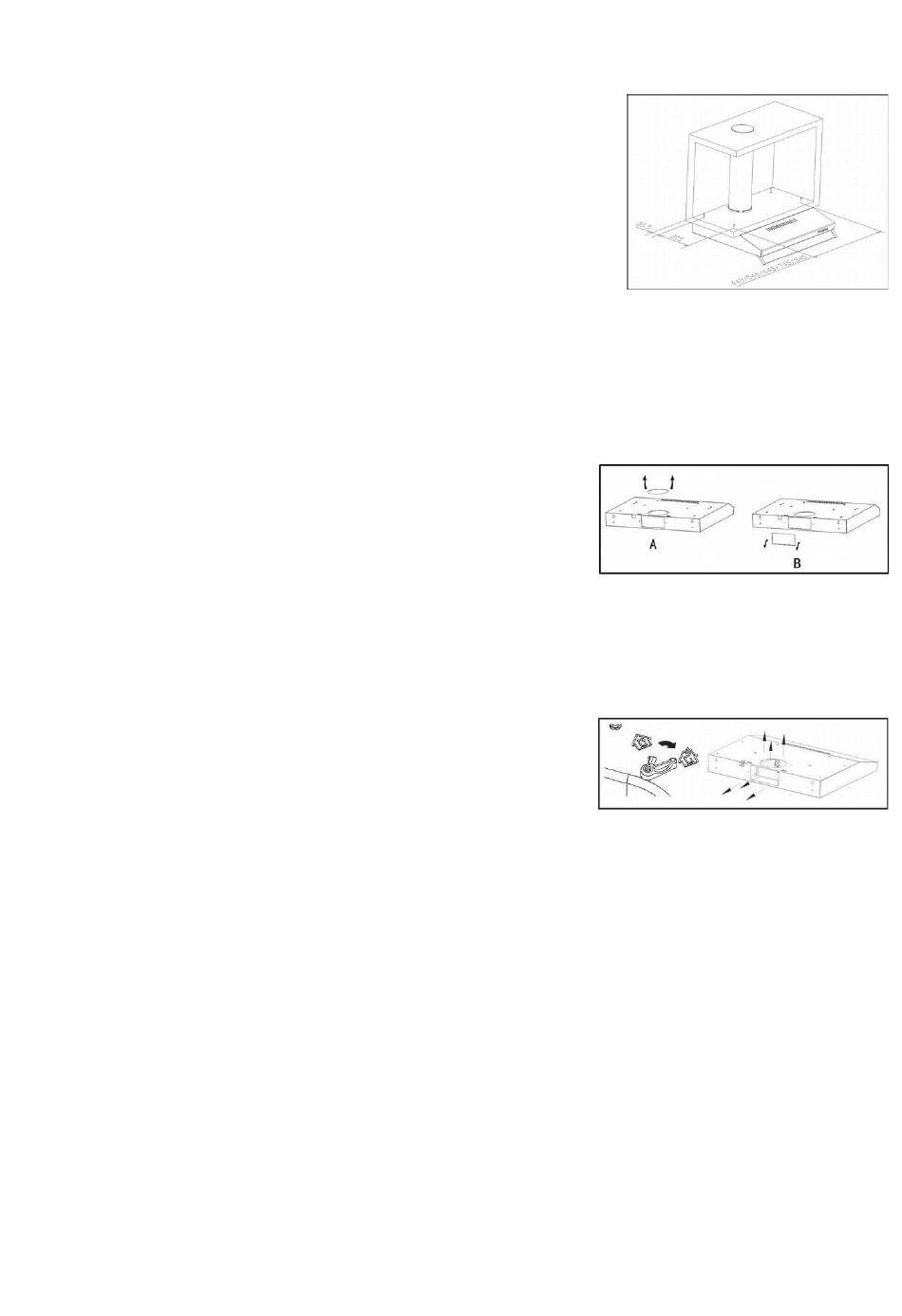

Installing on the bottom of the kitchen set cabinet
•
Place the sucker cap on the bottom of the kitchen set cabinet in
accordance with the planned position precisely.
•
Make signs at the bottom of the kitchen set cabinet for flexible pipe
holes and then make the holes if the cooker hood will use the ducting/
exhaust system.
•
Drill 4 holes with diameter of 6 mm at the appropriate position. Attach
the spigot/ flange and then attach the cooker hood and fasten with 4
screws at the position that has been prepared.
•
Attach the controller board on the bottom of the cooker hood to
prevent the gap between the cooker hood and the kitchen set.
Note:
1. Pipe extension is an additional accessory, not included in the unit.
2. Remove the protective layer before mounting.
3. There are 2 methods of ventilation, that is: 'horizontal ventilation' and 'vertical ventilation'.
Please note when doing installation.
Open the cover of the outlet at its top to apply vertical ventilation system.
See Fig. A. Meanwhile, applying the horizontal ventilation system can
be done by removing the cover on the outgoing airways on the back of
the unit. See Pic.B.
Rectangular outlet for horizontal ventilation is not included
Setting the air vents
MODENA cooker hood has two (2) working way versions that are:
A. DUCTING/ EXHAUST System:
•
In this version, the cooker hood works by sucking fumes/ cooking
aroma which then is thrown out through the waste pipe.
•
It is needed to have heat/ flame resistant ducting system to throw
away the smoke/ aroma through the outlet.
•
To connect the cooker hood with the waste pipe,
•
"spigot/flange" is used. It has been provided in every pack of cooker
hoods.
•
To use a cooker hood with this system then turn the control knob of
the air-circulation direction to the outside circulation position.
A few things to note for the cooker hood installation using ducting system:
1. Carbon filter should be removed because the sucked cooking aroma will immediately dumped out of the room.
2. A suction power will be decreased if the waste pipe is too long and a lot of angles.
3. Do not connect with the waste pipe with a chimney or a room air duct or hot air ducts.
4. If the cooker hood is about to be installed in buildings or apartment, preferably before the installation of the waste
pipe, it is consulted first with the responsible person of the building/ apartment.
5. The use of cooker hood with ducting system should be in an open room with a good air circulation system.
B. RECIRCULATION System:
•
In this version, the cooker hood works by sucking fumes/ cooking aroma which then will be filtered through an
aluminum filter and a carbon filter respectively. The smoke is filtered and then flowed back into the room
(recirculation). This system is used if the cooker hood installation place does not allow the ducting system
installation.
•
To use a cooker hood with this system then turn the control knob of the air circulation direction to the position of
recirculation and install the cover of the waste pipe.
