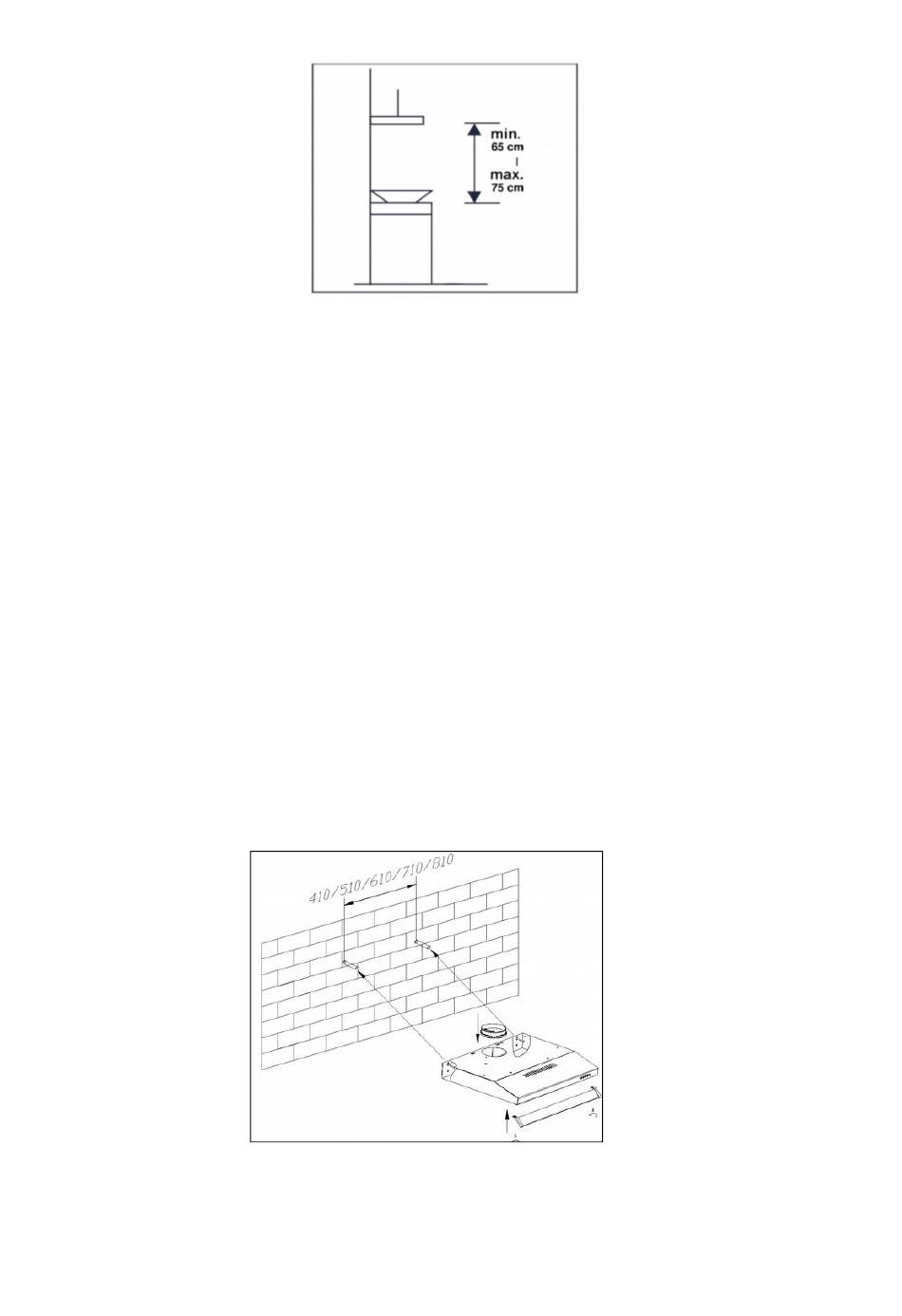

height of maximum 75 cm from the surface of the stove.
Hood Installation (slim hood)
Cooker hood can be installed on a concrete wall or on the bottom of the kitchen set cabinet wall.
Installing on a concrete wall
•
Make a center line on the wall where it will be placed in the cooker hood.
•
Attach the template to drill the wall. If it is not completed by a template, attach the cooker hood to the wall and
give a sign to make a hole with a center hole spacing on the back of the cooker hood.
•
Make holes on the two previous signs using a drill bit with the diameter of 8 mm or the size of the nut. Then
insert the nut into the holes.
Caution:
•
Before drilling, make sure that there is no cable, water pipe and other installations on the walls.
•
Put the screw on the two top holes and let a distance of 1 cm between the screw head and the wall surface.
•
Attach the cooker hood on the wall that has been fastened by screws by hanging the cooker hood on the screws.
•
If the position of the cooker hood on the wall is correct, tighten the two screws.
•
Then close the grid.
•
Install the safety ventilation using screws 6 mm in diameter.
•
Connect the waste pipe with Spigot/ Flange if the cooker hood will be used as ducting/ exhaust syst e m.
