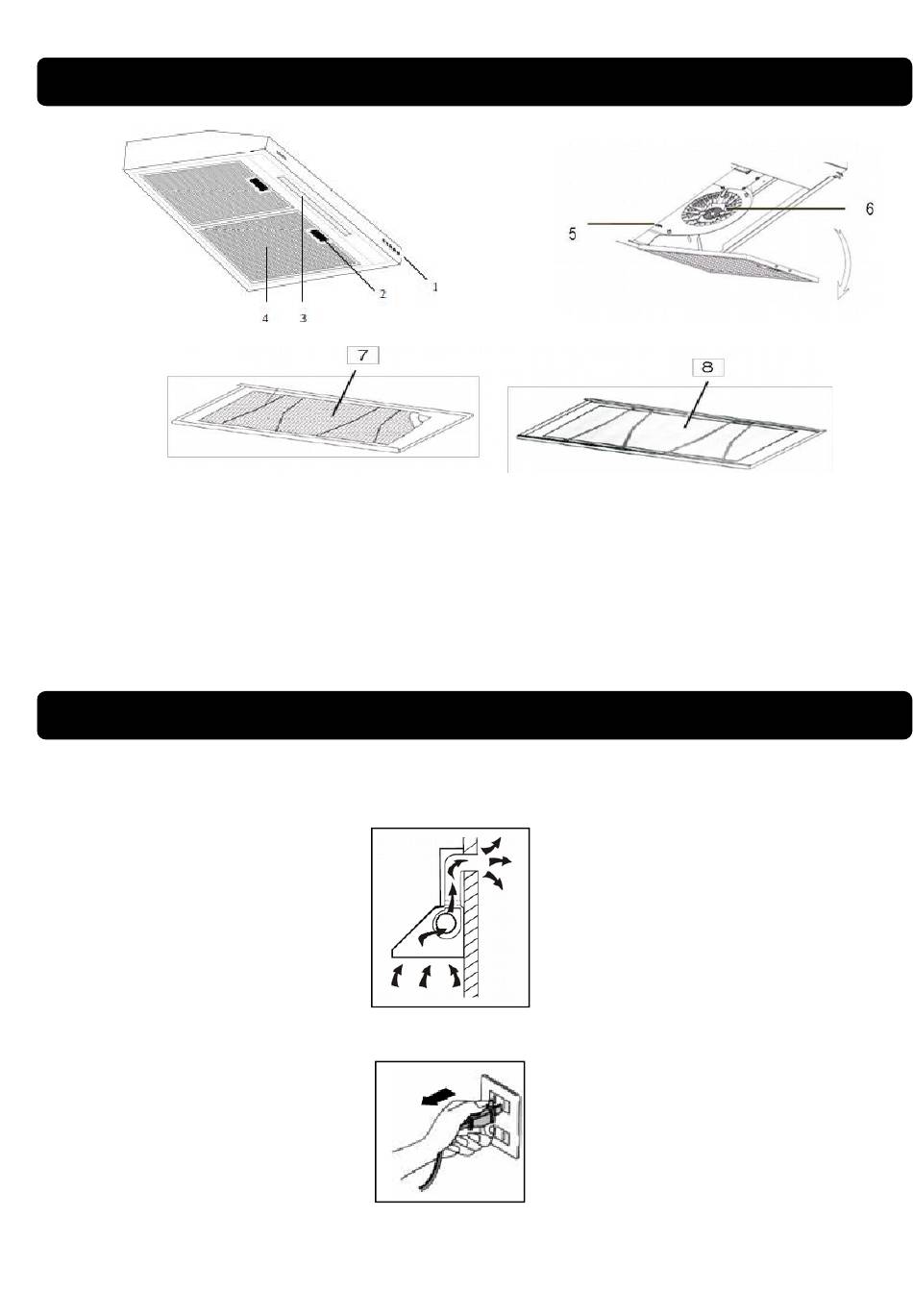

Part 2: Name Of Parts; Part 3: Installation - Modena PX Series User Manual Book

* The image is a general overview and is not necessarily the same as the product you receive.
* Features and completeness depends on the type of products.
1.
Control panel
2.
Lock latches
3.
LED
4.
Aluminum filter
5.
Air flow direction regulator knob
6.
Motor
7.
Carbon filter mat
8.
Cassette Aluminum filter
Preparations:
1. If you have a waste pipe outside, the cooker hood can be connected using extraction duct (enamel, aluminum,
flexible pipe or a fire-resistant material with an inner diameter of 150 mm), see the following picture:
2. Before installation, switch off the unit and unplug the power cord from the wall socket.
3. Installation of the cooker hood should be right on the top of the stove with a minimum distance of 65 cm and a

Part 2: Name of Parts

Part 3: Installation
