Introduction
Feature
Lifting capacity:
Lifting height:
Lifting speed:
Brake:
Control:
Unpacking
．Winch assembly
．Wire rope 5 mm x 100 m
．Weight hook CHW-0033
．Low voltage control ass'y LV-320
．Pendant switch PB-306 w/cord 1.25 mm
Read this manual carefully
You should carefully read and understand this manual before operating it.
Careless winch operation may result in personal injury hazards or property
damage.
Information requesting or parts ordering
Please specify the followings information:
．Winch PN
．Serial number
．Part description
．Replacement part number
．Quantity for each part
180 kg wire rope top layer
98 m
17-23 m/min at 50Hz
Electromagnetic spring-applied failsafe brake
Pendant switch powers the winch

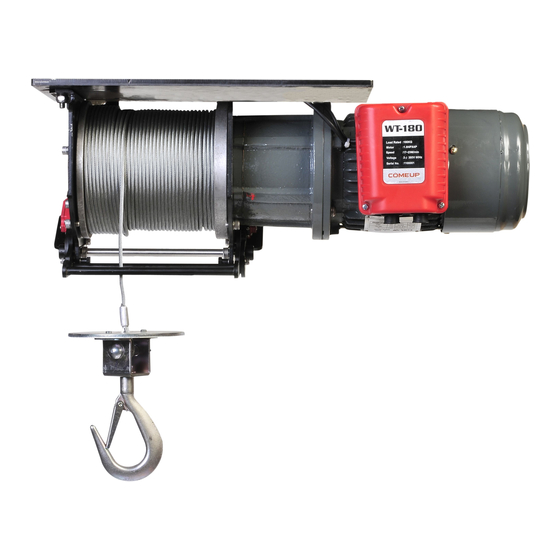

Electric Winch
Model:
PN : 151800 400V50Hz
2
x 3C x 3 m
WT-180
151830 380V50Hz
1pc
1pc
1pc
1pc
1pc
