Fuses

The mA socket is protected by a 1A (F) HBC fuse and the 10A socket by a 10A (F) HBC fuse,
both mounted internally. To replace a fuse, proceed as follows:
1. Disconnect the instrument from all voltage sources.
2. Remove the 4 screws from the underside and lift off the case upper.

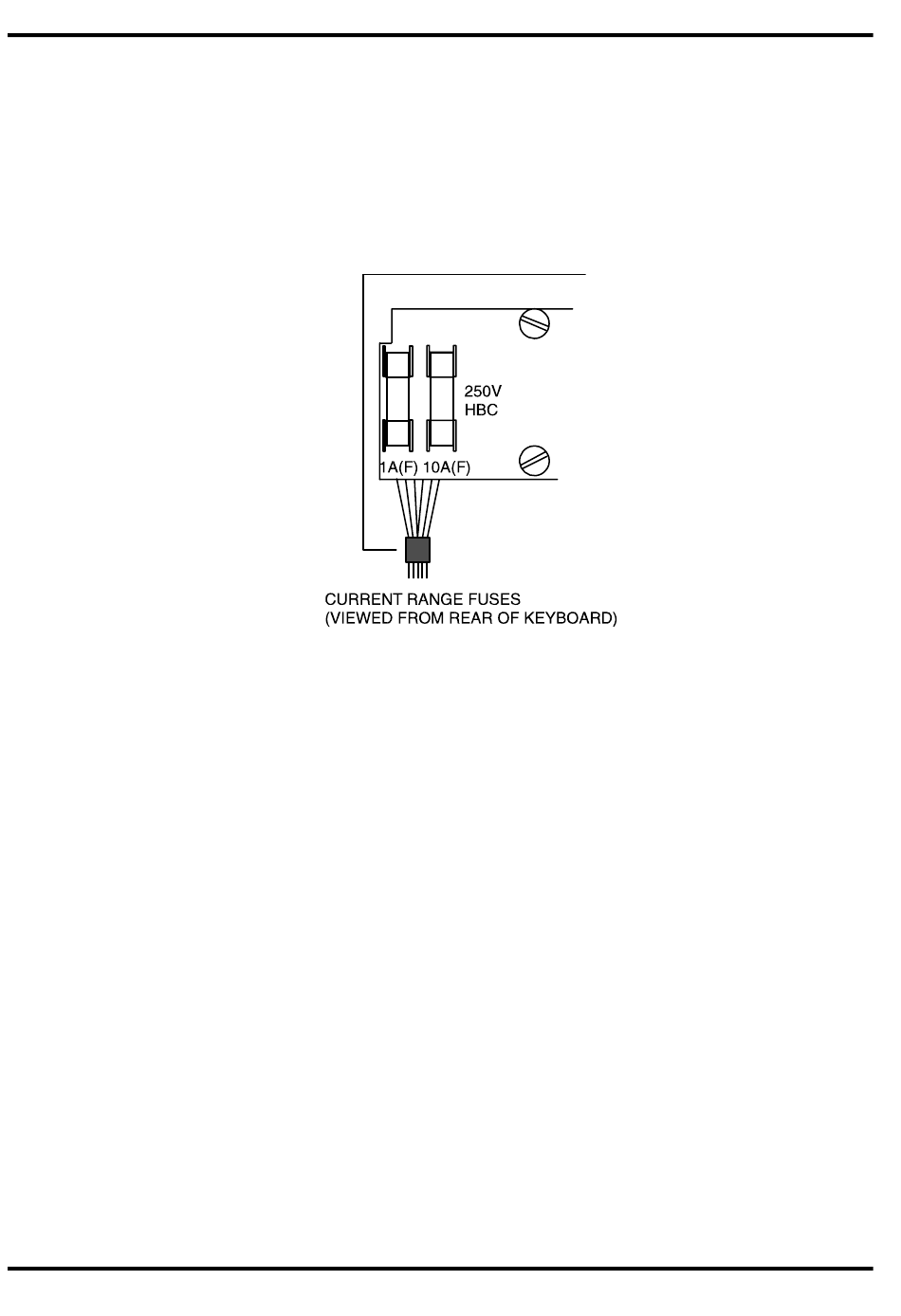

3. Replace the fuse with one of an identical rating using the diagram below as a guide.
4. Reassemble in the reverse order.
