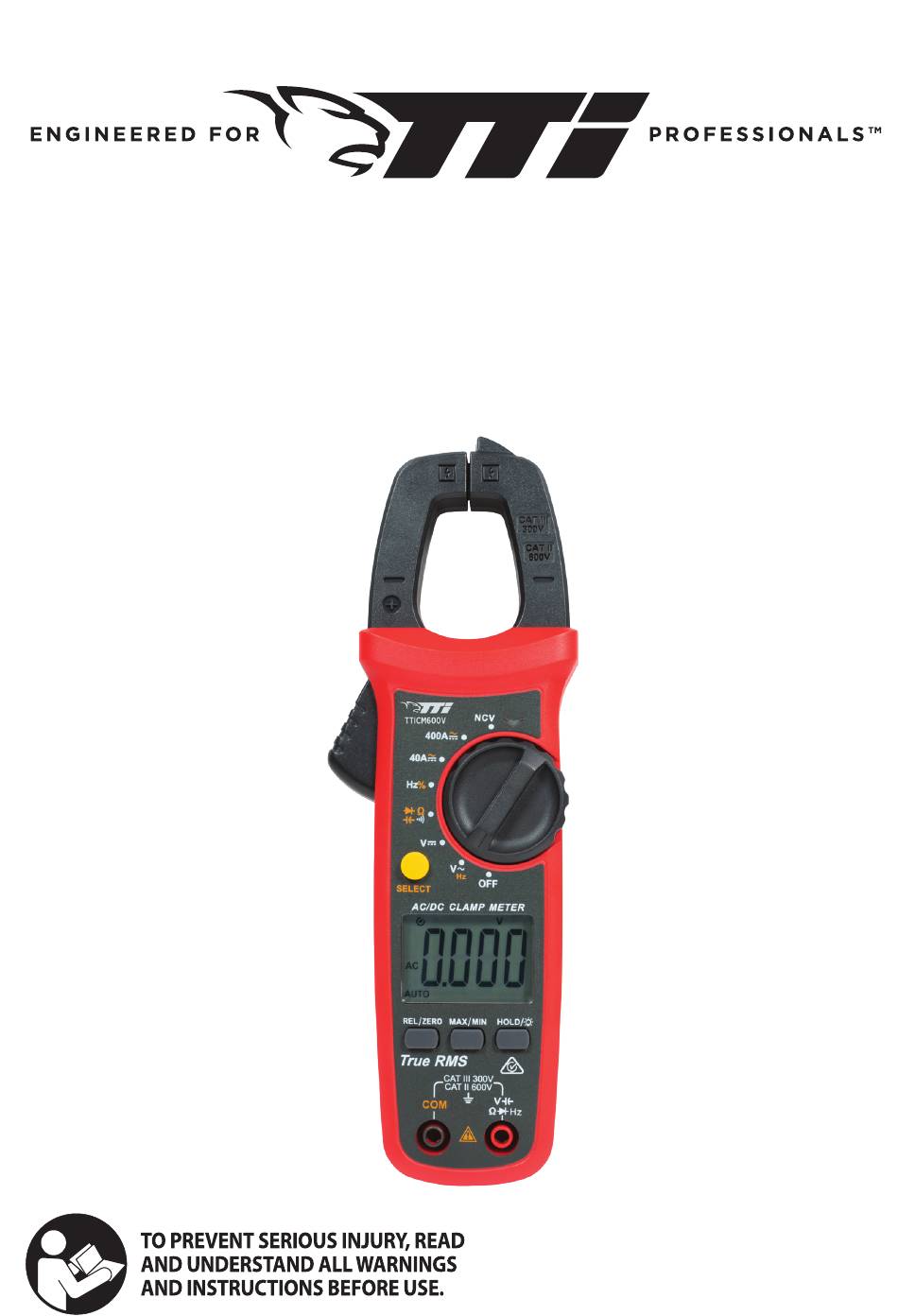

- Page 1 400A AC/DC CLAMP METER AUTO RANGING PART NO: TTICM600V (..151478) OPERATING INSTRUCTIONS...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ......................3 • Intended Use ........................3 • Product Contents ......................3 GENERAL SAFETY ......................4 SAFETY INSTRUCTIONS ....................4 • Electrical Symbols ......................5 GENERAL SPECIFICATIONS ..................6 EXTERNAL OVERVIEW ....................6 • Function Selector Overview ....................7 • LCD Screen Overview .......................8 • Buttons Overview ......................8 OPERATING INSTRUCTIONS ..................9 •... -
Page 3: Introduction

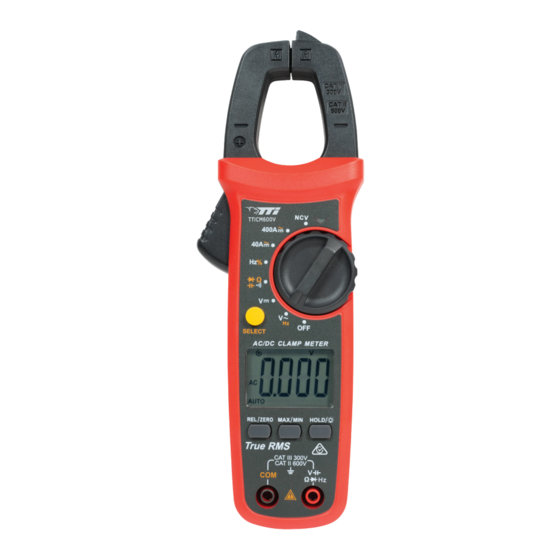

INTRODUCTION TTICM600V is a true RMS (4000 count) auto ranging digital clamp meter. This meter measures AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Diode Test, Continuity and Non Contact Voltage detection. The instruction manual includes relevant safety information and warning indication, please read them carefully and strictly observes all warnings and notes. -
Page 4: General Safety
GENERAL SAFETY Prior to using clamp meter, please read the product manual and ensure you have a solid understanding of the meter’s functions and features. Upon first use of the machine, ensure the test leads aren’t damaged and CAUTION in good working order. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that could WARNING... -
Page 5: Electrical Symbols
• Refrain from applying voltage over DC1000V/AC750V between the clamp meter terminals and ground to guard against electric shock and clamp meter damage. • Be careful in measuring RMS voltage higher than DC or AC 30V, such voltage poses a shock hazard. -
Page 6: General Specifications
GENERAL SPECIFICATIONS • Display count: 4000 • Polarity display: Auto • Maximum jaw opening: 28 mm • Power supply: 2 x AAA 1.5V batteries • Dimension: 215mm x 63mm x3mm EXTERNAL OVERVIEW NCV sensor Clamp jaws Hand guard LED indicator Jaw opening trigger Function selector LCD display... -
Page 7: Function Selector Overview
FUNCTION SELECTOR OVERVIEW POSITION DESCRIPTION DC voltage measurement AC voltage measurement AC current measurement DC current measurement Non-contact voltage measurement Frequency/ duty radio measurement Diode measurement Continuity measurement Ω Resistance measurement Capacitance measurement Shut-down OPERATING MANUAL... -
Page 8: Lcd Screen Overview
LCD SCREEN OVERVIEW SYMBOL DESCRIPTION Caution AC/DC voltage is higher than 30V Data hold Negative reading AC/DC AC/DC measurement Low battery indicator Diode measurement MkΩ Hz%nmFVA˚C˚F Continuity measurement Relative value measurement Ω, k Ω, M Ω Resistance unit mV, V AUTO MAXMIN ZERO Voltage unit μA, mA, A... -
Page 9: Operating Instructions
OPERATING INSTRUCTIONS AC/DC CURRENT MEASUREMENT Select the corresponding current range. Press the trigger to open the clamp jaws, and fully enclose one conductor. Only one conductor can be measured at a time, or the measurement reading will be wrong. NOTE: •... -
Page 10: Ac/Dc Voltage And Voltage Frequency (% Duty Cycle) Measurement
AC/DC VOLTAGE AND VOLTAGE FREQUENCY (% DUTY CYCLE) MEASUREMENT Select the corresponding function (AC) or (DC) Insert the red test lead into the positive (+) jack, and the black into the COM jack. Connect test leads to the measured circuit. NOTE: •... -
Page 11: Continuity Test / Resistance / Diode / Capacitance Measurement
CONTINUITY TEST / RESISTANCE / DIODE / CAPACITANCE MEASUREMENT Ω Select the corresponding function scale Insert the red test lead into the positive (+) jack, and the black into the COM jack. Connect test leads to the measured circuit. NOTE: •... -
Page 12: Non-Contact (Ncv) Ac Electric Field Sensing
NON-CONTACT (NCV) AC ELECTRIC FIELD SENSING The electric field sensing sensitivity is divided into two levels (“EFHI” and “EFLo”). The meter defaults to “EFHI”/ Users can select different sensitivity levels according to the intensity of the measured electric field. Select NCV on the function selector. Display will show “EFHI”. Hold sensing end close to a charged electric field (socket, insulated wire, etc.). -
Page 13: Other Functions
OTHER FUNCTIONS • Auto power off: The meter will automatically power off to save batteries if there is no operation within 15 minutes. You can wake it up by pressing any button or restart it after turning the switch off. Disabling Auto power off: Press and hold the SELECT button in the off state and turn on the meter again to disable the auto power off function. -
Page 14: Technical Index
TECHNICAL INDEX ACCURACY SPECIFICATIONS • Accuracy: ± (% reading + counts) – the calibration period is 1 year. • Ambient temperature and humidity: 23°C±5°C: <80%RH. • Temperature coefficient: the accuracy assured temperature condition is 18°C-28°C, the range of ambient temperature fluctuation is stable within ±1°C. When the temperature is less than 18°C or over 28°C, the additional temperature coefficient error is 0.1 x (specified accuracy)/°C. -
Page 15: Ac Voltage/Voltage Frequency
AC VOLTAGE/VOLTAGE FREQUENCY RANGE RESOLUTION ACCURACY 0.001V ± (1. 0% +5 ) 0.01V ± (0 8%+5) 400V 0.1V 600V VOLTAGE FREQUENCY 0.01Hz-0.01kHz ± (0.5 +2) CAUTION • Short press SELECT in AC voltage/Hz scale to enter the Hz function. • The input impedance is about 10MΩ. -
Page 16: Continuity/Diode Measurement
CONTINUITY/DIODE MEASUREMENT FUNCTION RANGE RESOLUTION ACCURACY • <10Ω : Consecutive beeps 400Ω/600Ω 0. 1Ω • >31Ω: No beep • The median: uncertain • The open circuit voltage is about 4V . 4V/6V 0.001V • For the silicon PN junction diode, the voltage value is generally about 0.5-0.8V. -
Page 17: Frequency Measurement
FREQUENCY MEASUREMENT RANGE RESOLUTION ACCURACY 10Hz-10MHz 0.01Hz-0.01MHz ±(0.1 +4) NON-CONTACT AC VOLTAGE DETECTING (NCV) ELECTRIC FIELD RANGE ACCURACY SENSITIVITY LEVEL The electric field sensing sensitivity is divided into two levels (“EFHI” & “EFLo”). The meter defaults to “EFHI”. 1. AC Voltage above 24V±6V can be EFLo sensed. -
Page 18: Maintenance
MAINTENANCE Before opening the rear cover of the meter, remove the test leads WARNING to avoid electric shock. GENERAL MAINTENANCE • Clean the meter casing with a soft cloth and mild detergent. Do not use abrasives or solvent! • Do not use tester or test leads if they appear to have any abnormality •... - Page 19 OPERATING MANUAL...
-
Page 20: Warranty Information
WARRANTY INFORMATION This warranty is provided by Total Tools (Importing) Pty Ltd of 20 Thackray Road, Port Melbourne VIC 3207. Phone: 03 9261 1900 (we, us, our). Express Warranty Subject to the exclusions set out below, we warrant that this product will be free from defects in materials or workmanship for 12 months from the date of purchase.
