Hardware
The OPAMP EN and LED EN jumpers are also available to remove any current draw from the onboard OpAmp
and LEDs being driven by the GPIOs, see
Table 2-2. External Supply Connections and Enable Jumpers
Reference Use
J19 5-V power input
J20 3.3-V power input
J21 OPAMP EN
J26 LED EN
2.2.8 Reset Pullup Jumper
Table 2-3 lists the reset pullup jumper.
Reference Use
J13 RESET pullup
2.2.9 Clocking
All of the required clocks are inside the module. There is no need to supply any external clock.
2
2.2.10 I C Connection
The board features an accelerometer and a temperature sensor for the out-of-box demo. These are connected
2
to the I C bus, and can be isolated using the jumpers provided (shown as yellow jumpers J23 and J24 in
2-12).
By removing J23 and J24, the accelerometer and the temperature sensors are isolated from the I
measure also removes the I
to the circuit requires the user to install external pullup resistors.
2
Table 2-4 lists the I C jumper definitions.
24 CC3235MODSF SimpleLink™ Wi-Fi
LaunchPad™ Hardware
Table 2-2.
Comments
Used to power the board from an external 5-V supply
Used to power the board from an external 3.3-V supply.
If uninstalled, the power supply to the operational amplifier is cut off. This can be
used to enable low-power measurements.
If uninstalled, the LEDs connected to the GPIO are disabled; this can be used to
enable low-power measurements.
Table 2-3. Reset Pullup Jumper
Comments
Install this jumper to enable the pullup resistor on the nRESET pin of the device,
when the board is powered from an external supply.

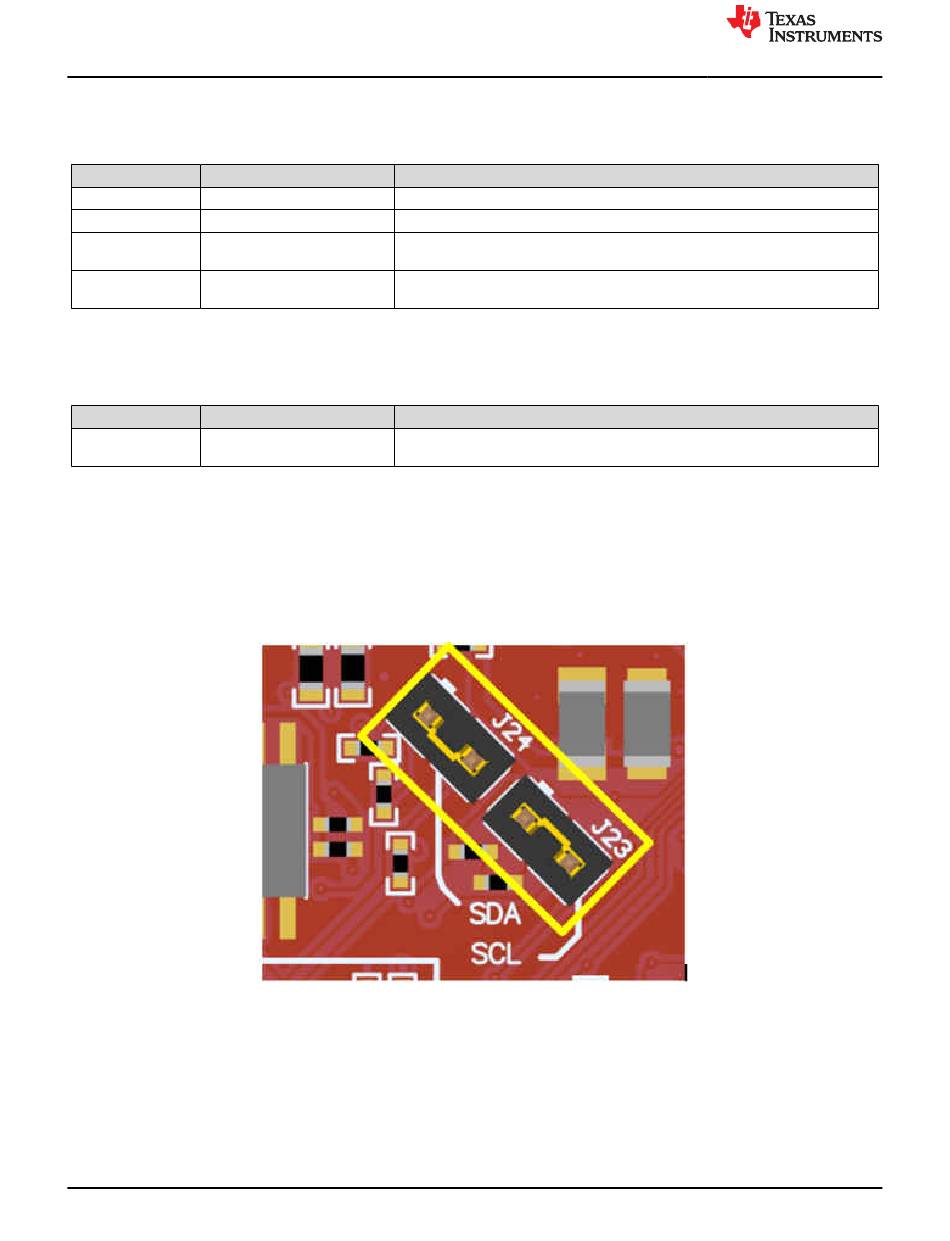

Figure 2-12. I
