2.2.5 JTAG Headers

The headers are provided on the board to isolate the CC3235MOD from the onboard XDS110-based JTAG

emulator. These jumpers are shorted by default when the board is shipped from TI.

are for default configurations, and

emulator, remove the isolation block JTAG jumpers and place the external emulator on the JTAG IN connector.

SWRU548C – FEBRUARY 2019 – REVISED SEPTEMBER 2021

Submit Document Feedback

Figure 2-7

shows the external emulator connection. To connect an external

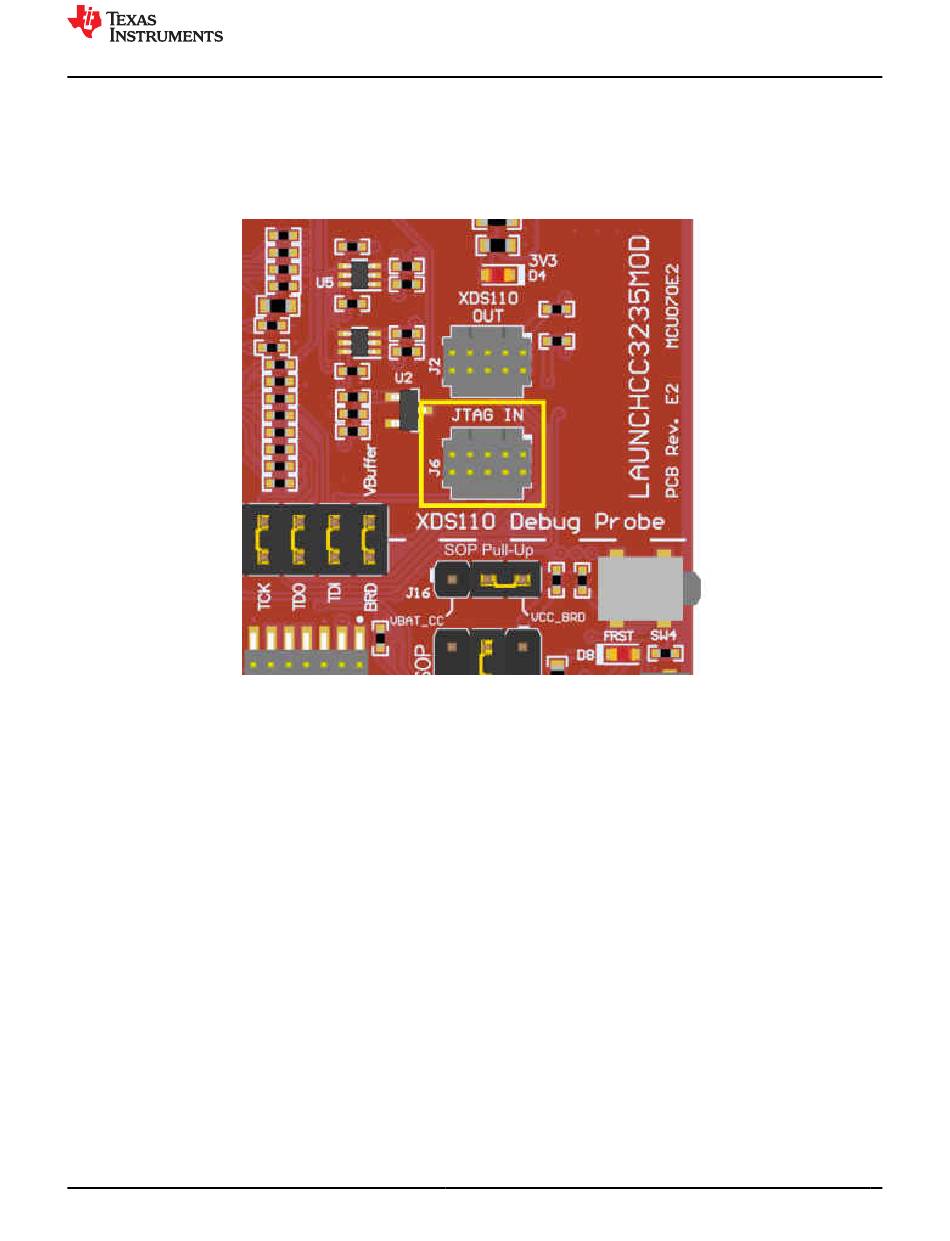

Figure 2-7. JTAG IN Connector (J6)
