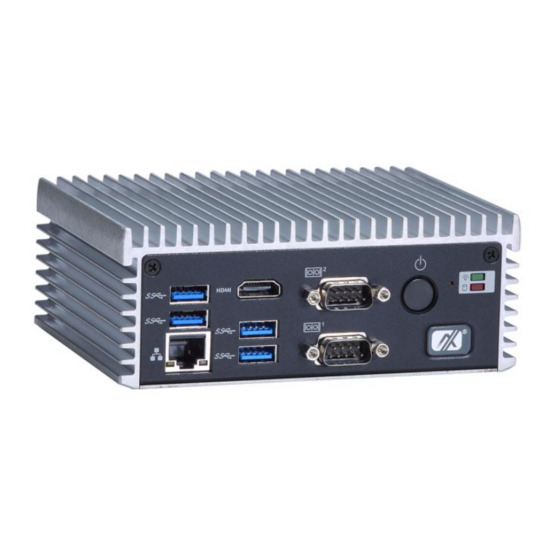

AXIOMTEK eBOX560-500-FL Series Quick Installation Manual

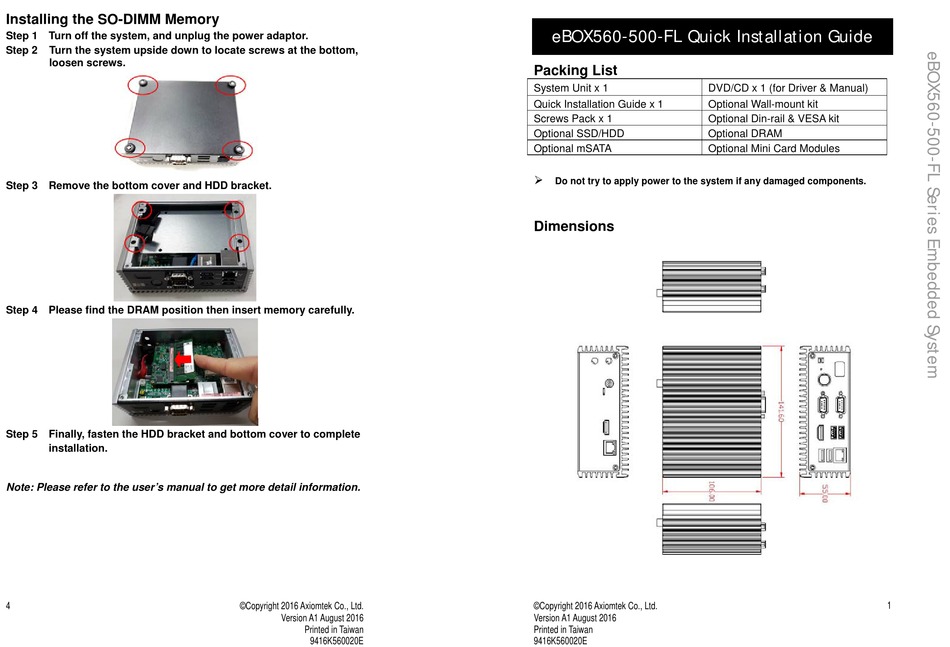

Installing the SO-DIMM Memory

Step 1 Turn off the system, and unplug the power adaptor.
Step 2 Turn the system upside down to locate screws at the bottom,
loosen screws.
Step 3 Remove the bottom cover and HDD bracket.
Step 4 Please find the DRAM position then insert memory carefully.
Step 5 Finally, fasten the HDD bracket and bottom cover to complete
installation.
Note: Please refer to the user's manual to get more detail information.
4 ©Copyright 2016 Axiomtek Co., Ltd.
Version A1 August 2016
Printed in Taiwan
9416K560020E
eBOX560-500-FL Quick Installation Guide

Packing List

System Unit x 1 DVD/CD x 1 (for Driver & Manual)
Quick Installation Guide x 1 Optional Wall-mount kit
Screws Pack x 1 Optional Din-rail & VESA kit
Optional SSD/HDD Optional DRAM
Optional mSATA Optional Mini Card Modules

Do not try to apply power to the system if any damaged components.
Dimensions
