AXIOMTEK eBOX560-512-FL Quick Installation Manual

Download this manual

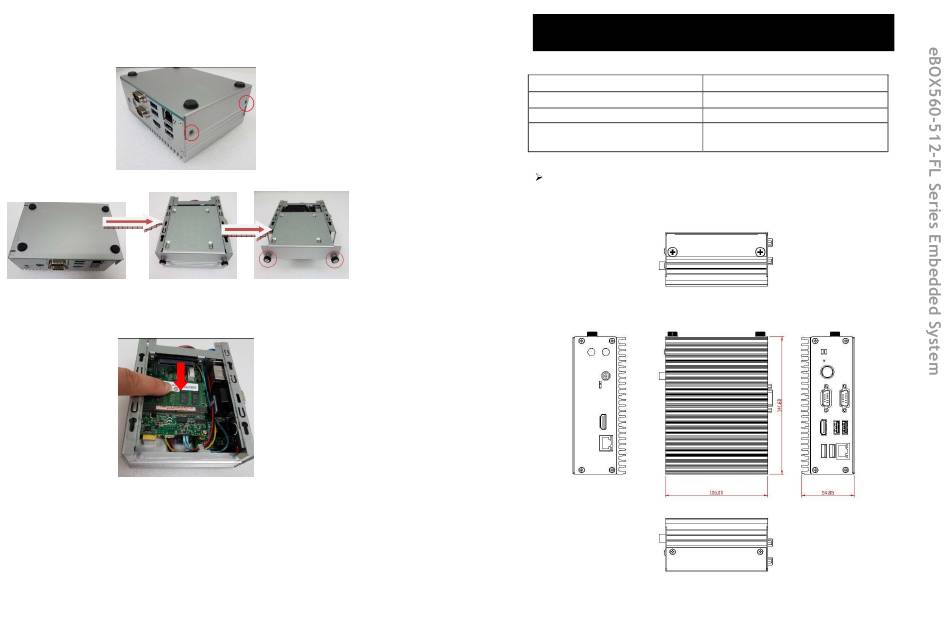

Installing the SO-DIMM Memory

Step 1 Turn off the system, and unplug the power adaptor.

Step 2

Turn the system upside down to locate screws at the right

side as red marked and loosen two screws.

Step 3 Remove the bottom cover and HDD bracket.

Step 4 Locate the memory module, insert a gold colored contact into

the socket and push the module two end latches till locked

and then put the HDD bracket and bottom cover back.

Note: Please refer to the user's manual to get more detail information.

Version A1 October 2017

Printed in Taiwan

9416K560030E

eBOX560-512-FL Quick Installation Guide

Packing List

System Unit x 1

DVD/CD x 1 (for Driver & Manual)

Quick Installation Guide x 1

12VDC / 60W AC to DC Adapter x 1

Screws Pack x 1

Foot Pad x 4

EU Power cord x 1 or US Power

cord x 1

Do not try to apply power to the system if any damaged components.

Dimensions

Version A1 October 2017

Printed in Taiwan

9416K560030E
