Jumper and Switch Settings
Before applying power to the CAPA84R, please make sure all of the
jumper and switch are in factory default positions.
Jumper/Switc Description
h
LVDS Voltage Selection
JP1
Default: +3.3V Level
Restore BIOS Optimal Defaults
SW1
Default: Normal Operation
Auto Power On
SW2
Default: Disable
Note: Please contact your local vendors if any damaged or missing items. DO
NOT apply power to the board if there is any damaged component.

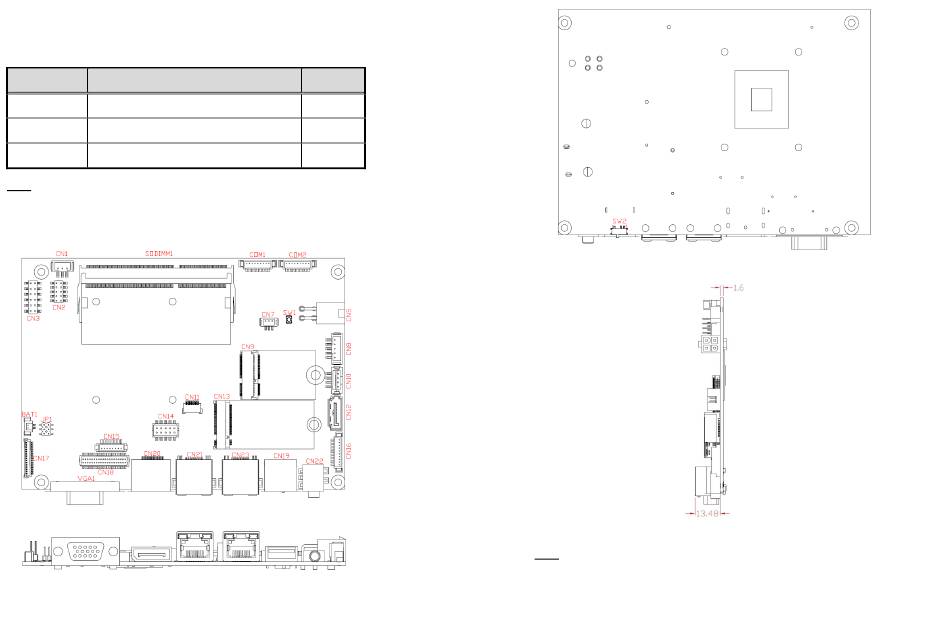

Board Layout
Top View
Rear I/O
2
Setting
1-2 Close
Release
1-2 Close
9418E84R000E
©
Copyright 2018 Axiomtek Co., Ltd.
Version A1 November 2018
Printed in Taiwan
Bottom View
Side View
Note: Please refer to the CAPA84R series product information CD for the
complete user's manual, drivers and utilities. User's manual and related
documents are in Acrobat PDF format.
