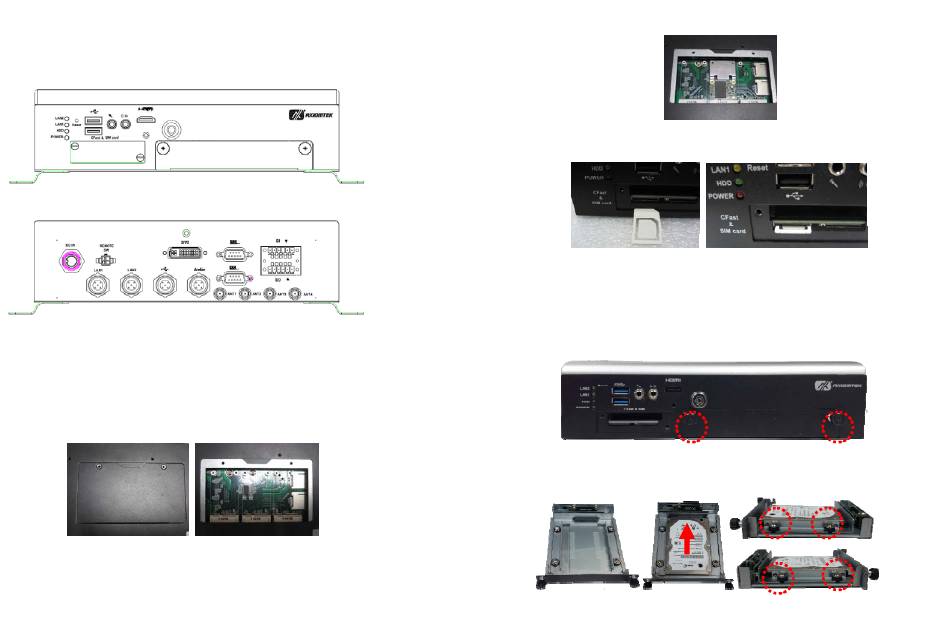

I/O Outlets
The following figures show you I/O outlets on front and rear panels of
the tBOX322-882-FL Series.
Front View
Rear View
Installing the PCI Express Mini Card and SIM Card
Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the
bottom, loosen screws to remove the bottom cover.
2 9416N322000E
©
Copyright 2014 Axiomtek Co., Ltd.
Version A1 Oct 2014
Printed in Taiwan
Step 3 Slide Mini card into slot cautiously
Step 4 Slide SIM card into slot cautiously.
Step 5 Close the cover to the chassis, and fasten all screws.
Installing the swappable HDD/SSD and CFast Card
Step 1 Turn off the system, and unplug the power cord. Unlock
screws counterclockwise on the front side as shown.
Step 2 Assemble the HDD/SSD bracket together with the SATA
HDD/SSD, then fasten the screws on the both side.
