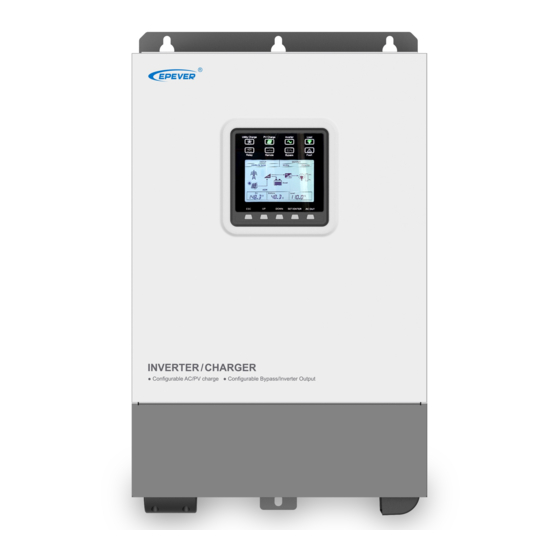

- Page 1 Inverter/Charger User Manual UP2000-HM6022 UP3000-HM5041 UP3000-HM5042 UP3000-HM10022 UP5000-HM8042...
-
Page 3: Table Of Contents
Contents Safety Instructions ................1 1 General Information ................. 5 1.1 Overview ..................... 5 1.2 Identification of parts ................... 7 1.3 Naming rules ..................... 10 1.4 Connection diagram ................... 11 2 Installation Instructions ..............13 2.1 General installation notes ................13 2.2 Before installation .................. - Page 4 6 Maintenance ................... 63 7 Specifications ................64 Appendix 1 Disclaimers ..............73...
-
Page 5: Safety Instructions
Safety Instructions Please reserve this manual for future review. This manual contains all the instructions for safety, installation, and operation of the UPower-Hi series inverter/charger (below referred to as the inverter/charger in this manual). 1. Explanation of symbols To enable users to use the product efficiently and ensure personal and property safety, please read related literature accompanying the following symbols. - Page 6 The entire system should be installed by professional and technical personnel. 2. Requirements for professional and technical personnel Professionally trained; Familiar with related safety specification for the electrical system; Read this manual carefully and master related safety cautions. 3.
- Page 7 A circuit breaker should be used between the battery and the inverter/charger; the circuit breaker's value should be twice the inverter/charger rated input current. DO NOT put the inverter/charger close to the flooded lead-acid battery because the terminals' sparkle may ignite the hydrogen released by the battery. ...
- Page 8 No maintenance parts in the inverter/charger. If any maintenance service is required, please contact our after-sales service personnel. Do NOT touch or open the case after the device is powered off within ten minutes. 10. Safety cautions for inverter/charger maintenance： ...
-
Page 9: General Information
1 General Information 1.1 Overview UPower-Hi series, an upgrade hybrid inverter charger that supports utility charging, oil generator charging, solar charging, utility output, inverter output, and energy management. The high-performance DSP chip in the product with the advanced control algorithm brings high response speed and high conversion efficiency. This system adopts industrial design to ensure high reliability and features multiple charging and output modes to meet different requirements. - Page 10 Features Full intelligent digital energy storage equipment Supports the battery mode or non-battery mode Non-battery mode: charging with solar (Main) and utility (Assist) simultaneously Surge and reverse connection protections to support the lithium battery system perfectly ...
-
Page 11: Identification Of Parts
1.2 Identification of parts... - Page 12 ❶ ❿ Utility input terminal RTS interface ② Dry contact interface ❷ ⓫ AC output terminal ❸ ⓬ Terminal covers RBVS interface ❹ ⓭ Mounting holes (4 Total) Cable hole ❺ Battery negative input terminal RS485 interface(DB9 female, ③ with isolation design) ⓮...
- Page 13 can be converted into our company's standard BMS protocol. It realizes the communication between the inverter/charger and the BMS. RJ45 pin definition： Definition Definition 5VDC RS-485-A 5VDC RS-485-A RS-485-B RS-485-B Please refer to the "BMS Lithium Battery Protocols & Fixed ID Table" or contact our technical supporters for the currently supported BMS manufacturers and the BMS parameters.
-
Page 14: Naming Rules
DB9 pin definition for base UP-Hi series: Definition Definition RS-485-A RS-485-B 5VDC DB9 pin definition for RTU-type UP-Hi series: Definition Definition 12VDC RS-485-A RS-485-B GND2(12VDC power ground) 5VDC GND1(5VDC power ground) 1.3 Naming rules... -
Page 15: Connection Diagram
1.4 Connection diagram No battery mode Battery mode... - Page 16 Supported battery types： AGM、GEL、FLD、LFP15/LFP16、LNCM14 For different battery types, please confirm the relevant parameters before power on. No-battery mode and battery mode can set by setting item 0. AC loads shall be determined according to the output power of the inverter/charger.
-
Page 17: Installation Instructions
2 Installation Instructions 2.1 General installation notes Read all the installation instructions carefully in the manual before installation. Be very careful when installing the batteries. Please wear eye protection when installing the open-type lead-acid battery, and rinse with clean water in time for battery acid contact. -
Page 18: Before Installation
Included accessories 1pcs(Details refer to the "Accessories list" file shipped with the inverter/charger.) 2.2.2 Prepare modules 1) Battery Recommended wire size of the battery and the circuit breaker is as below. Model Battery wire size Circuit breaker Ring terminal UP2000-HM6022 20mm /4AWG 2P—125A RNB38-8S UP3000-HM5041 16mm /5AWG 2P—100A RNB22-8... - Page 19 2) AC Load Recommended wire size of the AC load and the circuit breaker is as below. Model Load wire size Circuit breaker Torque UP2000-HM6022 3.4mm /12AWG 2P—16A 1.2N.M UP3000-HM5041 /9AWG 2P—40A 1.2N.M /11AWG UP3000-HM5042 2P—25A 1.2N.M UP3000-HM10022 /11AWG 2P—25A...
- Page 20 UP3000-HM10022 /9AWG 2P—40A /9AWG UP5000-HM8042 2P—40A Making the connection wire of the PV module: Step1: Each MC4 male terminal and female terminal 1pcs(included accessories) Step2: PV module positive and negative connection wires 2 pcs(red +, black -), the wire length is determined according to the actual requirement of the customer. Step3: Strip one end of the PV module positive wire for about 5mm, and press the exposed wire to the inner core of the MC4 male terminal, as shown below: Step4: Tight press the copper wire and the MC4 male terminal's inner core with a plier,...
-
Page 21: Determine The Installation Position
4) Utility input Recommended wire size of the utility input and the circuit breaker is as below. Model Utility wire size Circuit breaker Torque UP2000-HM6022 3.4mm /12AWG 2P—16A 1.2N.M UP3000-HM5041 /9AWG 2P—40A 1.2N.M /11AWG UP3000-HM5042 2P—25A 1.2N.M UP3000-HM10022 /11AWG 2P—25A... -
Page 22: Install The Inverter/Charger
Step2: Mark the installation position with the mounting plate 1. The distance between the two mounting holes is 300mm. Step3: Rotate the direction of mounting plate 1 and mounting plate 2, and install them again. 2.4 Install the inverter/charger The inverter/charger can be fixed to the concrete and solid brick walls and cannot be fixed to the hollow brick wall. - Page 23 of clearance above and below. Step2: According to the installation position marked with the mounting plate 1, drill two M10 holes with an electric drill. Step3: Insert the screws of the M8 bolts and the steel pipes into the two M10 holes. Step4: Install the inverter/charger and determine the installation position of the M10 hole (located at the bottom of the inverter/charge).
-
Page 24: Wiring
2.5 Wiring 1) Remove the terminal cover Remove covers of the AC output /AC input/utility input terminal with a screwdriver, as shown below:... - Page 25 2) Remove the inverter/charger cover Remove the screws beside the inverter/charger with a screwdriver, as shown below: 3) Connect the battery When wiring the battery, please do not close the circuit breaker and ensure that the leads of "+" and "-" poles are connected correctly. ...
- Page 26 4) Connect the AC load Risk of electric shock! When wiring the AC load, please do not close the circuit breaker and ensure that the leads of "+" and "-" poles are connected correctly. If utility input exists, the inverter/charger must be connected to the ground terminal.
- Page 27 5) Connect the PV modules If the inverter/charger is to be used in an area with frequent lightning strikes, installing an external surge arrester is recommended. Risk of electric shock! When wiring the PV modules, please do not close the circuit breaker and ensure that the leads of "+"...
- Page 28 7) Connect accessories A. RBVS interface Function： This interface can be connected to the battery voltage sampling wire to detect the battery voltage accurately. The sampling distance is no longer than 20 meters. Needs: 3.81-2P terminal 1 pcs Positive and negative(red+, black-) wire 1 pcs each (determine the length and wire size of the connecting wire according to the actual needs of the customer.) ...
- Page 29 B. Dry contact interface Function： The dry contact interface can turn on/off the generator and is connected parallel with the generator's switch. Working principle: When the battery voltage reaches the dry contact ON voltage(DON), the dry contact is connected, for its coil is energized.
- Page 30 Optional Remote Temperature RTS300R47K3.81A accessory Sensor Suppose the remote temperature sensor is not connected to the controller. The default setting for battery charging or discharging temperature is 25 ° C without temperature compensation. D. BMS-Link connection port（RJ45） Function： Through a BMS-Link converter, different lithium battery manufacturers' BMS protocol can be converted into our company's standard BMS protocol.
- Page 31 Needs: (Included)CC-RS485-RS485-350mm(Connect the inverter/charger to the BMS-Link converter) (Optional)RS485 communication cable(Connect the lithium battery to the BMS-Link converter. Adjust the cable according to the lithium battery's BMS line sequence) This connection port is only used to connect the BMS-Link converter. For details about the BMS-Link, please refer to BMS-LINK Manual.
-
Page 32: Operating The Inverter/Charger
8) Install the cover and secure the screws. 2.6 Operating the inverter/charger 1) Closing the circuit breaker of the battery side. 2) Turn the rocker switch on the side of the inverter/charger to the ON state. The inverter/charger will normally work when the indicator is ON solid. Ensure that the battery connection is correct and the battery circuit breaker is turned on first. - Page 33 inverter/charger will normally work as per the set mode. Do not turn on all the loads simultaneously to avoid protection action due to a large transient impulse current. When supplying power for different AC loads, it is recommended to turn on the load with a large impulse current.
-
Page 34: Interface
3 Interface 3.1 Indicator Color Status Definition Indicator No utility input On solid Utility connected, but not charging Green Slowly flashing (0.5Hz) Utility is charging Fast flashing (2.5Hz) Utility charging fault No PV input On solid PV connected, but not charging Green Slowly flashing (0.5Hz) PV is charging... -
Page 35: Button
3.2 Button Button Operation Instruction Click(＜50ms) Exit the current interface Long-press(＞2.5s) Clear the faults 1. Browse/Setting Interface: "UP" for page up; "Down" for page down Click(＜50ms) 2. Modify parameter values: "UP" to increase the value; "DOWN" to decrease the value 1. - Page 36 Symbol definition Symbol Definition Symbol Definition Utility connected and PV connected and charging charging 1. Utility disconnected 1. PV disconnected 2. Utility connected, but 2. PV connected, but the no charge voltage is low Load ON Load OFF ① Battery capacity lower ①...
- Page 37 When the connected lithium battery (with BMS) is equipped with a battery capacity display, the lithium battery capacity will be displayed as per the BMS. Interface Definition Item Settings Content Solar priority INPUT Utility & solar Solar Utility priority OUTPUT Inverter priority AC output voltage...
-
Page 38: Operating Mode
3.4 Operating mode 1. Abbreviation Abbreviation Illustration PV power Load power LOAD Battery voltage Low voltage reconnect voltage Low voltage disconnect voltage Auxiliary module OFF voltage Auxiliary module ON voltage Max charging current 2. Battery mode Only solar energy can charge the battery, no matter Solar utility is available or not. - Page 39 Utility supplies the load as a priority. When the utility is abnormal, the PV supplies the Utility Priority load as a supplement. When PV power is insufficient, the battery supplies the load as a supplement. 1) Input source: Solar (only solar energy charges the battery) Output source: Inverter Priority ①...
- Page 40 When PV power is lower than or equal to load power, PV stops charging the battery. It supplies the load together with the battery. When the battery voltage goes lower than or equal to the LVD point, only PV charges the battery. ③...
- Page 41 2) Input source: Solar (only solar energy charges the battery) Output source: Utility Priority ① Both PV and utility are available Utility supplies the load, and PV charges the battery. ② PV power is available, but the utility is not available When PV power is higher than load power, it charges the battery and supplies extra power to the load.
- Page 42 ④ Both PV power and the utility are not available. Before the battery voltage drops to the LVD point, the battery supplies the load. Input source: Solar Priority Output source: Inverter Priority ① Both PV and utility are available When PV power is higher than load power, it charges the battery and supplies extra power to the load.
- Page 43 ② PV power is available, but the utility is not available When PV power is higher than load power, it charges the battery and supplies extra power to the load. When PV power is lower than or equal to load power, PV stops charging the battery.
- Page 44 ④ Both PV power and the utility are not available. Before the battery voltage drops to the LVD point, the battery supplies the load. 4) Input source: Solar Priority Output source: Utility Priority ① Both PV and utility are available PV charges the battery, and the utility supplies the load.
- Page 45 ② PV power is available, but the utility is not available When PV power is higher than load power, it charges the battery and supplies extra power to the load. When PV power is lower than or equal to load power, PV stops charging the battery, and it supplies the load together with the battery.
- Page 46 ④ Both PV power and the utility are not available. Before the battery voltage drops to the LVD point, the battery supplies the load. 5) Input source: Solar and PV charge the battery Output source: Unprogrammable ① Both PV and utility are available When PV power is lower than or equal to MCC* V , the utility supplies the load alone and charges the battery together with the PV.
- Page 47 When the battery voltage goes lower than or equal to the LVD point, only PV charges the battery. ③ PV power is not available, and the utility is available. Utility supplies the load and charges the battery. ④ Both PV power and the utility are not available. Before the battery voltage drops to the LVD point, the battery supplies the load.
- Page 48 Max. PV input power curve as below: Min. PV Max. PV Max. PV open-circuit Model open-circuit input voltage voltage power 450V(At minimum operating environment temperature) UP2000-HM6022 2500W 395V(25℃) 250V(At minimum operating environment temperature) UP3000-HM5041 3000W 220V(25℃) UP3000-HM5042 4000W 450V(At minimum operating...
-
Page 49: Settings
environment temperature) 395V(25℃) 450V(At minimum operating UP3000-HM1002 environment temperature) 4000W 395V(25℃) 500V(At minimum operating environment temperature) UP5000-HM8042 120V 4000W 440V(25℃) Note: For UP3000-HM5042, UP3000-HM10022, and UP5000-HM8042, parameters vary with the "220/230VAC system" curve. However, the min. PV open-circuit voltage and the max. - Page 50 Step5：Press the SET/ENTER button to confirm. Step6：Press the ESC button to exit. Setting items： Instruction Setting Battery No battery mode(Default) mode or battery No battery mode mode AGM(Default) LFP15 Battery type LFP16 LNCM14 AGM/GEL/FLD/LFP/L NCM+USER Important: User types can be combined with different battery types corresponding parameters.
- Page 51 Solar priority(Default) Charging Utility & solar mode Solar Utility priority(Default) Output mode Inverter priority ℃(Default) Temperature unit ℉ 30S(Default) backlight time 100S(on solid) Buzzer ON(Default) alarm...
- Page 52 switch User define:43.2~64.0V Step size: long-press voltage AGM(Default)/GEL/FLD: 43.2V for 1V， short-press for disconnect LFP15:47.8V 0.1V voltage LFP16:51.0V LCNM14:43.4V User define:43.2~64.0V voltage Step size: long-press AGM(Default)/GEL/FLD: 50.0V reconnect for 1V，short-press for LFP15: 48.8V voltage 0.1V LFP16: 52.0V LCNM14: 49.0V When the output mode is inverter priority, and the battery voltage is lower than the low voltage disconnect voltage (configurable), the utility will supply the load.
- Page 53 Setting items： Instruction Setting Boost charging time (Default) 120M 180M Equalize charging time (Default) 120M 180M cannot set, AGM(Default):58.4V Equalize which changes GEL: -- charging depending FLD:59.2V voltage boost charging LFP15:53.0V voltage. LFP16:56.5V LCNM14:58.3V User Boost define:43.2~64.0V charging Step size: long-press...
- Page 54 for 1V， short-press for voltage AGM(Default):57.6V 0.1V GEL:56.8V FLD:58.4V LFP15:53.0V LFP16:56.5V LCNM14:58.3V User define:43.2~64.0V Boost voltage Step size: long-press AGM(Default)/GEL/FLD: 52.8V reconnect for 1V， short-press for LFP15:49.5V voltage 0.1V LFP16:52.8V LCNM14:56.5V User define:43.2~64.0V Float Step size: long-press AGM(Default)/GEL/FLD: 55.2V charging for 1V，...
- Page 55 User Auxiliary define:43.2~64.0V module OFF Step size: long-press voltage for 1V， short-press for 0.1V NOTE: difference Auxiliary between AOF and AON module ON should be larger than or voltage equal to 1V, or else the setting cannot be saved. User define:43.2~64.0V Dry contact Step size: long-press...
- Page 56 40A(Default) User define: 40A~2A Step size: long-press for 10A，short-press for 1A OFF(Default) Clear fault OFF(Default) Clear the PV accumulated energy 100AH(Default) User define:1~4000AH Step size: Below 200AH: long-press for 10A， short-press for 1A Battery Above 200AH: capacity long-press for 50A， short-press for 5A CAUTION: To accurately display...
- Page 57 3(Default) 0(lithium battery) Temperature compensate 0~9(Non-lithium coefficient battery) Step size is 1 0℃(Default) temperature User define:-40~0℃ prohibits charge Step size: 5℃ temperature 0℃(Default) temperature User define:-40~0℃ prohibits discharge Step size: 5℃ temperature 110VAC(Default for devices of 100V output voltage) 120VAC Output voltage level 220VAC(Default for...
- Page 58 automatically.) Lithium OFF(Default) battery protection enable(stop charging and discharging Note: After connecting to the lithium the BMS successfully, it battery when will status automatically. temperature is too low) User define:43.2~64.0V Charging limit Step size: long-press AGM(Default)/GEL/FLD: 60.0V voltage for 1V， short-press for LFP15: 53.5V 0.1V LFP16:57.0V...
- Page 59 264.0V(Default) Utility over User define: voltage 220VAC~290VAC disconnection Step size: long-press voltage for 10V，short-press for 1V 176.0V(Default) Utility low User define: voltage 90VAC~190VAC disconnection Step size: long-press voltage for 10V，short-press for 1V UP5000-HM8042: 250A(Default) User define: 10~250A Battery discharge UP3000-HM5042: 150A(Default) current limit Refer to 3.7...
-
Page 60: Battery Voltage Customized Logic
3.6 Battery voltage customized logic. For the above items7-16 and 33-36, please follow the below rules strictly. 1) The following rules must be followed when modifying the parameter values in the user for a Lead-acid battery. A. Over Voltage Disconnect Voltage ≥ Over Voltage Reconnect Voltage+1V B. -
Page 61: Battery Discharge Current Limit
3.7 Battery discharge current limit The function is suitable for the current limiting requirements of lithium batteries. Abbreviation： Battery voltage Inverter output voltage Actual battery current Utility low voltage disconnection voltage Battery discharge current limit value(Setting value) BDC--MAX Max. Battery discharge current limit value V—I curve：... -
Page 62: Protections
4 Protections Protection Instruction When the charging current of the PV array exceeds its rated current, it will be charged at the rated current. PV limit NOTE: When the charging current exceeds the PV array's rated current current, ensure the PV open-circuit voltage no exceed the "maximum PV open-circuit voltage."... - Page 63 When a short-circuit occurs at the load output terminal, the output will be turned off immediately. The output will then be automatically restored after a delay (the first time Load output delay for 5s, the second time delay for 10s, the third time short circuit delay for 15s).
-
Page 64: Troubleshooting
5 Troubleshooting 5.1 Error codes battery Fault Code Fault Indicator Buzzer frame blink Indicator Battery low Flashing voltage Battery over Flashing voltage Battery over Flashing discharge Cell over Flashing voltage Cell low voltage Flashing Cell low Flashing temperature Cell over Flashing temperature Other faults of... - Page 65 voltage Bus over voltage Bus under voltage Read EEPROM error Write EEPROM error Heat sink over temperature Battery low temperature Communication fault alarm Utility over Utility fast Alarm On Solid voltage flashing Utility low Utility fast voltage flashing Utility Utility fast frequency Alarm On Solid...
-
Page 66: Solutions
5.2 Solutions Fault Solution Battery over Check whether the battery voltage is too high and disconnect voltage the PV modules. Waiting for the battery voltage to resume to or above LVR Battery over point (low voltage reconnect voltage) or changing the power discharge supply method. - Page 67 6 Maintenance 1) The following inspections and maintenance tasks are recommended at least two times per year for the best performance. Make sure the inverter/charger is firmly installed in a clean and dry ambient. Make sure no block on air-flow around the inverter/charger. Clear up any dirt and fragments on the radiator.
- Page 68 7 Specifications Item UP2000-HM6022 Nominal battery voltage 24VDC 21.6～32VDC Battery input voltage range Max. battery charging current Inverter output 2000W@30℃ Continuous output power Max. surge power 4000W 220VAC(-6%～+3%)，230VAC(-10%～+3%) Output voltage range Output frequency range 50/60± 0.2% Output wave Pure Sine Wave 0.2-1(VA ≤...
- Page 69 for details.) Max. PV charging power 1725W Max. PV charging current Equalize charging voltage 29.2V(AGM default) Boost charging voltage 28.8V(AGM default) Float charging voltage 27.6V(AGM default) Low voltage disconnect 21.6V(AGM default) voltage ≥99.5% Tracking efficiency Temperature compensate -3mV/℃/2V(Default) coefficient General Surge current <1.8A(without PV and utility connection, turn on Zero load consumption...
- Page 70 Item UP3000-HM5041 UP3000-HM5042 Nominal battery voltage 48VDC Battery input voltage range 43.2~64VDC Max. battery charging current Inverter output 3000W@30℃ Continuous output power Max. surge power 6000W 110VAC(-3%~+3%)， 220VAC(-6%~+3%)， Output voltage range 120VAC(-10%~+3%) 230VAC(-10%~+3%) Output frequency range 50/60Hz±0.2% Output wave Pure Sine Wave 0.2-1(VA ≤...
- Page 71 3000W 4000W (Note：For the curve of (Note：For the curve of Max. PV input power Max. PV input power Vs. PV open-circuit Vs. PV open-circuit Max. PV input power voltage, see chapter 3.4 voltage, see chapter 3.4 Operating mode for Operating mode for details.) details.) Max.
- Page 72 Dimension 642.5x381.6x149mm 607.5x381.6x149mm (H x W x D) Mounting size 620*300mm 585*300mm Φ10mm Mounting hole size Net Weight 19kg 18kg Item UP3000-HM10022 Nominal battery voltage 24VDC 21.6～32VDC Battery input voltage range Max. battery charging current 100A Inverter output 3000W@30℃ Continuous output power Max.
- Page 73 80～350V MPPT voltage range 4000W (Note：For the curve of Max. PV input power Vs. PV Max. PV input power open-circuit voltage, see chapter 3.4 Operating mode for details.) Max. PV charging power 2875W Max. PV charging current 100A Equalize charging voltage 29.2V(AGM default) Boost charging voltage 28.8V(AGM default)
- Page 74 Φ10mm Mounting hole size Net Weight 19kg Item UP5000-HM8042 Nominal battery voltage 48VDC Battery input voltage range 43.2~64VDC Max. battery charging current Inverter output 5000W@30℃ Continuous output power Max. surge power 8000W 220VAC(-6%~+3%)，230VAC(-10%~+3%) Output voltage range Output frequency range 50/60Hz±0.2% Output wave Pure Sine Wave 0.2-1(VA ≤...
- Page 75 open-circuit voltage, see chapter 3.4 Operating mode for details.) Max. PV charging power 4000W Max. PV charging current Equalize charging voltage 58.4V(AGM default) Boost charging voltage 57.6V(AGM default) Float charging voltage 55.2V(AGM default) Low voltage disconnect voltage 43.2V(AGM default) ≥99.5% Tracking efficiency Temperature compensate -3mV/℃/2V (Default)
- Page 76 During -20℃～+30℃, the inverter/charger can full load work. When the working environment temperature exceeds 30° C, the load power will be reduced appropriately. The load power variation curve with temperature is shown in the figure below: : Constant output power 60% P ℃...
- Page 77 Appendix 1 Disclaimers The warranty does not apply to the following conditions: Damage is caused by improper use or an inappropriate environment. Load current/voltage/power exceeds the limit value of the inverter/charger. Damage caused by working temperature exceeds the rated range. ...
- Page 80 HUIZHOU EPEVER TECHNOLOGY CO., LTD. Beijing Tel: +86-10-82894896/82894112 Huizhou Tel: +86-752-3889706 E-mail:info@epsolarpv.com Website: www.epsolarpv.com www.epever.com...
Need help?
Do you have a question about the UP2000-HM6022 and is the answer not in the manual?
Questions and answers

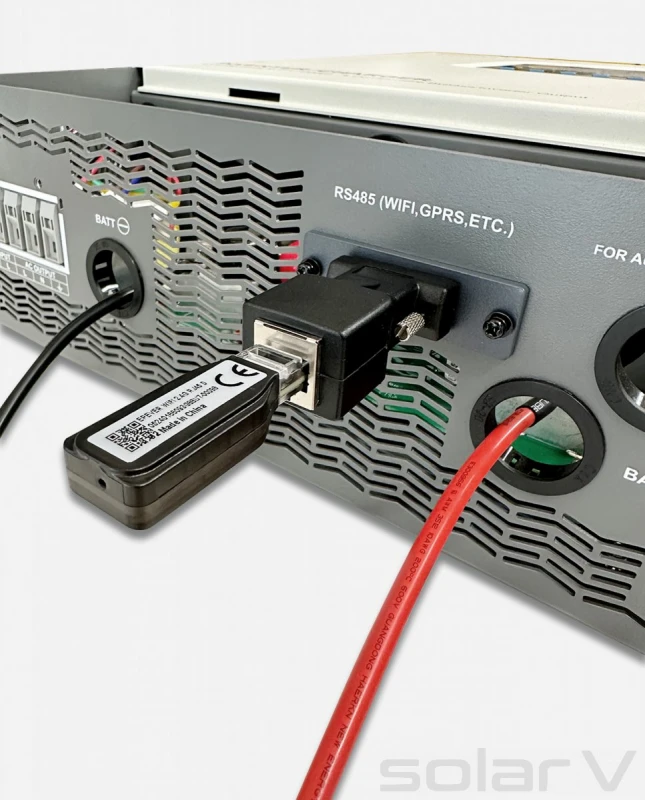

Good Morning...I newly bought my Epever WIFI 2.4 G RJ45 D module and connect to my UP3000-HM10022(RTU) ...but i cannot communicate..there is no sign of communication..even the small green light is not lighting..there some remedy for this problem...thank you...
1. Check Connections: Ensure the WiFi module is properly connected to the DB9 interface of the UP3000-HM10022 RTU. Verify that the cables are secure and undamaged.
2. Power Supply: Confirm that the WiFi module is receiving power. The DB9 interface provides 0.2A/12V power, so check if the RTU is powered on and functioning correctly.
3. Indicator Light: If the green light is not lighting, the module may not be receiving power or could be faulty. Try reconnecting it or using another module if available.
4. Circuit Breakers: Ensure the battery circuit breaker is closed and that the inverter/charger is turned on. The system must be running for proper communication.
5. Inspect for Damage: Look for signs of corrosion, loose terminals, or physical damage on the module and RTU.
6. Reset the Module: If applicable, restart the WiFi module and RTU to re-establish communication.
7. Check Configuration: If possible, verify that the WiFi module settings match the RTU’s communication parameters.
If the issue persists, consider replacing the module or consulting technical support.
This answer is automatically generated
@Mr. Anderson Good Sir..i will check this as per your advice..thank you so much..Best regards...
My UPower-HI model UP3000-HM10022(RTU)...from the screen or table of error code,,,there is item 41 to 44 ..which is BEN...SOC..MSV..PSV..may I know for what is is this?
