Summary of Contents for BluStream HMXL44CS-KIT

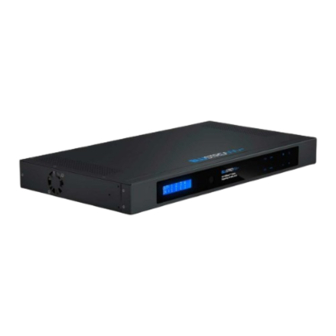

- Page 1 4x4 HDBaseT™ Matrix - 4K 60Hz 4:4:4 HMXL44CS-KIT User Manual RevA1_HMXL44CS-KIT_User_Manual_171218...
-
Page 2: Table Of Contents
16-17 cables. Do not substitute or use any other power supply other than the enclosed Infrared Commands 18-19 unit, or a Blustream approved replacement. Web Browser Interface Do not disassemble either the Transmitter or Receiver units for PC Configuration Software any reason. -
Page 3: Introduction
HDBaseT™/HDMI on output 1, video down-scaling on HDBaseT output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix. The HMXL44CS-KIT is supplied with 4 x HEX70CS-RX receivers. - Page 4 The only part of the signal that is converted during transmission is the colour gamut variations. *Blustream CSC products do not support HDR10+ or Dolby Vision due to the way these specific csriations of HDR are encoded.
- Page 5 RS-232 pass-through port (x4) - RS-232 port – For control of the DC adaptor to power the matrix Sends RS-232 out to corresponding Matrix from PC or third party control switcher and HDBaseT™ receivers. HDBaseT™ zones. processor. contact support@blustream.co.uk / support@blustream.com.au...
-
Page 6: Control Ports
HMXL44CS-KIT USER MANUAL HMXL44CS-KIT Control Ports The HMXL44CS-KIT main communication ports are located on the rear panel and includes the following connections:- Coaxial Coaxial Coaxial Coaxial TCP/IP RS-232 HMXL44CS HDBT HDBT HDBT IR Ctrl DC 24V Output 1 Output 2... -
Page 7: Panel Descriptions
HDBaseT input HDMI signal link indicator HDBaseT signal link indicator HDMI Output DC 12V screw type connector IR IN (to Blustream 5V 3.5mm IR receiver) Power status indicator IR OUT (to Blustream 5V 3.5mm IR emitter) contact support@blustream.co.uk / support@blustream.com.au... -

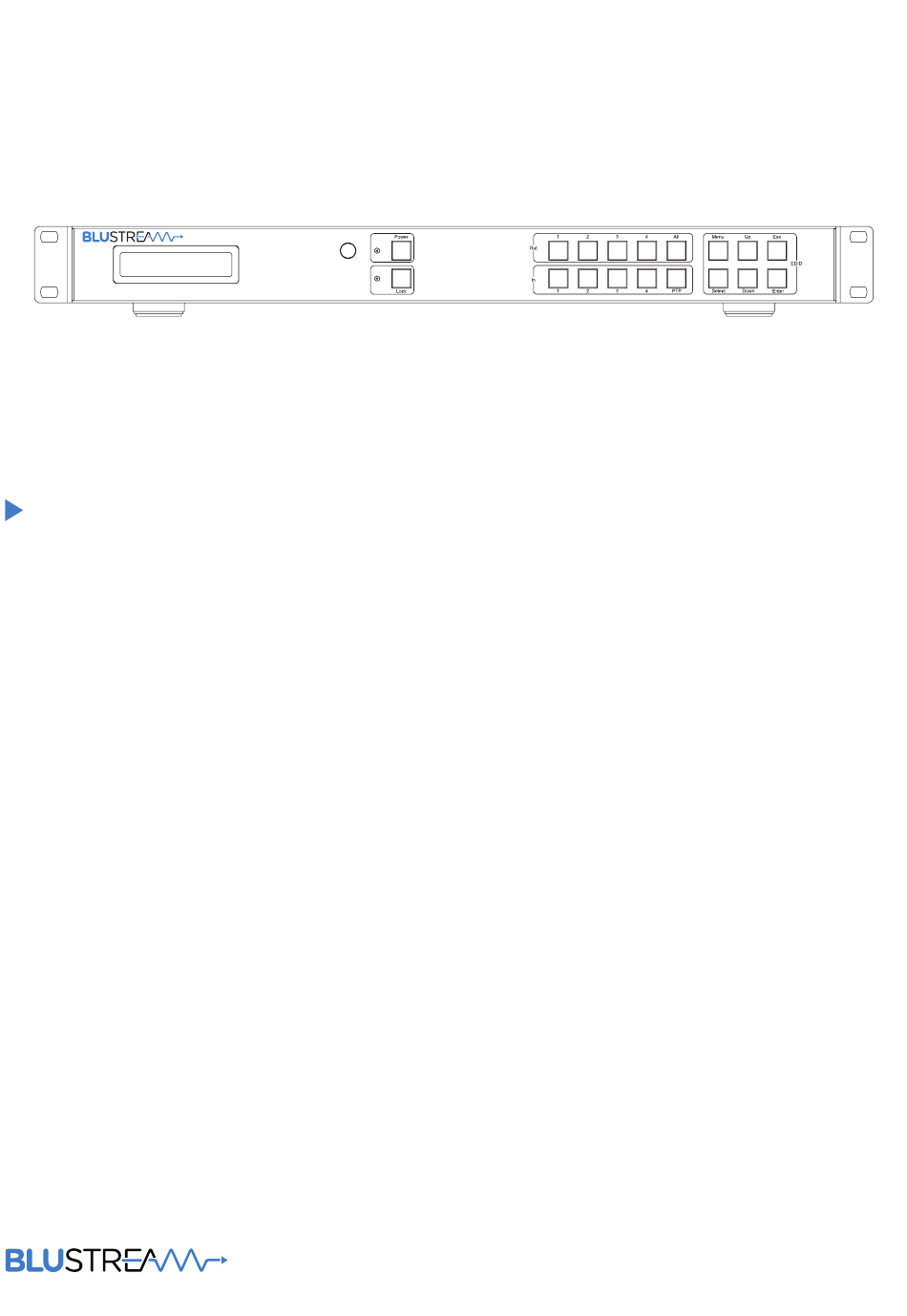

Page 8: Matrix Front Panel Controls
HMXL44CS-KIT USER MANUAL Matrix Front Panel Control Front Panel Display - Input/Output selection The following display shows current source input selection per zone output. To change input selection first press ‘OUTPUT’ button (1-4) Press desired ‘INPUT’ button (1-4) An ‘X’ indicates that the zone output has been turned off. -
Page 9: Audio Breakout
The HMXL44CS Matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs. Extracted audio will be concurrent with the corresponding HDMI video output. The HMXL44CS analogue outputs include pre-amp line level control allowing you to connect the Blustream matrix directly into a power amplifier for all your multi-room audio needs. - Page 10 The HDBaseT link light will be lit when a CAT cable is connected to the HDBaseT RJ45 output on the Matrix and an active connection is achieved with the Blustream HDBaseT Receiver. Blustream Support department are on hand to assist with signal distribution issues should they arise - please email us at one of the email addresses adjacent.
- Page 11 IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use supplied Blustream IRCAB cable for IR conversion. Each Blustream Matrix and HDBaseT receiver is supplied with all necessary IR hardware required and includes: IR Emitter - IR1 &...
- Page 12 HMXL44CS-KIT USER MANUAL Remote Control Description OUTPUT AND INPUT SELECTION EDID SET UP Selects the zone OUTPUT you wish to The HMXL44CS provides a change the source on (Numbers 1 - 4 POWER comprehensive range of EDID settings. correspond to the zone outputs 1 - 4)
-
Page 13: Edid Control
EDID hand shaking thus making switching quicker and more reliable. Configuration of Matrix EDID settings can be acheived in one of five ways:- Using Matrix PC Software (See ‘Blustream Matrix Software Guide’ for further details available at www. blustream.co.uk) Using Matrix web browser interface (See ‘Blustream Web Browser Interface Guide’... - Page 14 HMXL44CS-KIT USER MANUAL ZONE 01 ZONE 02 ZONE 03 ZONE 04 SOURCE 01 SOURCE 02 SOURCE 03 SOURCE 04 RS-232 70m max RS-232 RS-232 RS-232 70m max www.blustream.co.uk...
-
Page 15: Specifications
4 x Mounting kits for HEX70CS-RX • 1 x 24V/3.5A power supply • 1 x Remote control • 5 x IRR Blustream 5V IR receivers • 4 x IRE1 Blustream 5V IR emitters • 1 x Quick Reference Guide Maintenance Clean this unit with a soft, dry cloth. -
Page 16: Rs-232 And Telnet Commands
The Blustream HMXL44CS can be controlled via serial and TCP/IP. The following pages list all available serial commands for the The Blustream HMXL44 V2 can be controlled via serial and TCP/IP. The following pages list all available serial commands for the HMXL44CS Matrix. - Page 17 = 00…30: Set volume levels VOLxxTXyy xx = +: Volume level increases xx = -: Volume level decreases yy = 00: Select ALL output ports xx = 01 to 04: Select single output port RESETDEF Restore factory settings contact support@blustream.co.uk / support@blustream.com.au www.blustream.co.uk...
- Page 18 HMXL44CS-KIT USER MANUAL 4x4 Matrix IR Database 4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR 0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016...
- Page 19 0016 0016 0016 003F 0016 003F 0016 0016 0016 003F 0016 0016 0016 0016 0016 0016 0016 003F 0016 0016 0016 0016 0016 003F 0016 0016 0016 003F 0016 003F 0016 003F 0016 0016 0016 003F 0016 0689 contact support@blustream.co.uk / support@blustream.com.au...
-
Page 20: Web Browser Interface
The Blustream HMXL44CS-KIT matrix unit can be both controlled and configured using the in-built web-server. The HMXL44CS-KIT Matrix must be connected to an active network router/switch and it is advised that the Matrix is given a static IP address. You can configure the network settings of the Matrix using either the Web Browser Interface (Blustream Matrix products are shipped with the network set to DHCP) or using the Blustream PC Configuration Software (downloadable from the Blustream Drivers &... - Page 21 HMXL44CS-KIT USER MANUAL Notes: contact support@blustream.co.uk / support@blustream.com.au...
- Page 22 www.blustream.com.au...
