3M QT-III Quick Start Manual page 5

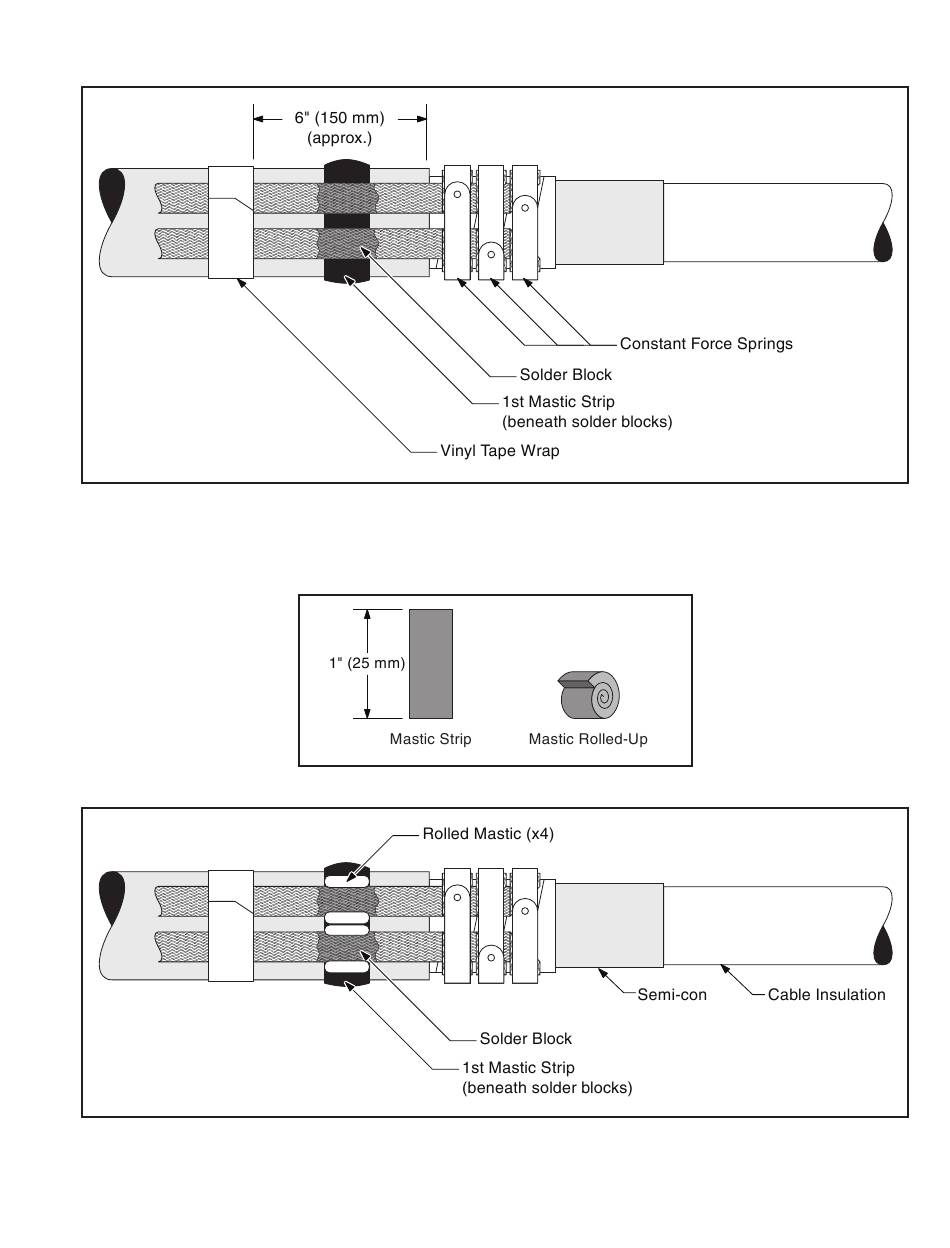

2.4 Secure the two tails of the ground braid assembly to the cable jacket approximately 6 inches (150 mm) from the
cable jacket edge with several wraps of vinyl tape. (Figure 4)
2.5 Cut four 1" (25 mm) lengths of 1" ( 25 mm) wide Scotch® Sealing Mastic 2229 . Remove the release liner and roll
each mastic strip into a small roll. (Figure 5) Press the mastic rolls into place on either side of the ground braid
solder blocks. (Figure 6)
78-8126-9537-3-B
Figure 4
Figure 5
Figure 6
5
