3M QT-III Quick Start Manual page 12

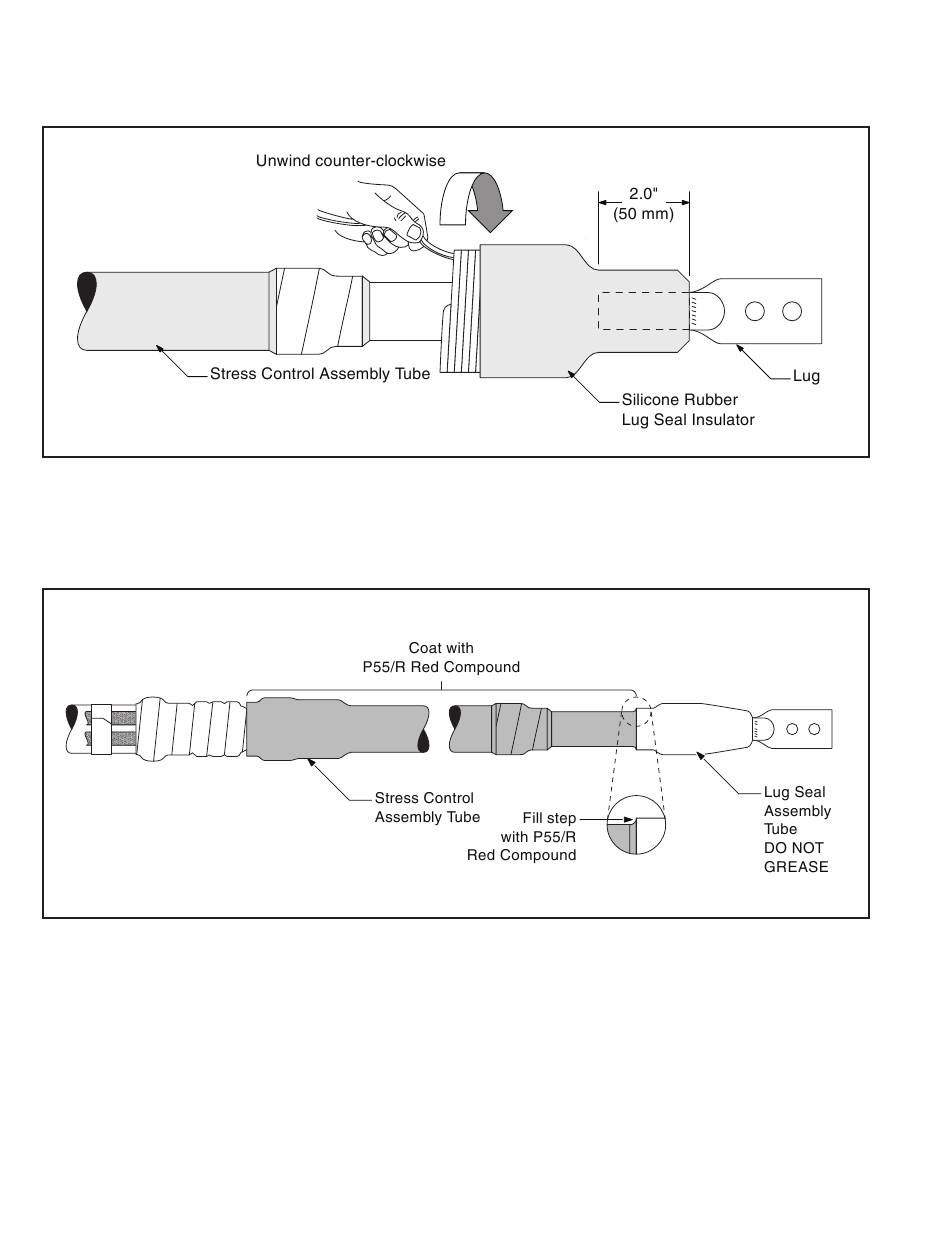

5.12 Select the Silicone Rubber Lug Seal Insulator from the kit. Slide the lug seal insulator onto the cable insulation
with the loose core end toward the cable insulation. Position the lug seal insulator tube (not the core) 2" (50
mm) onto the lug barrel. Remove the core by pulling the loose core end while unwinding counter-clockwise.
(Figure 20)
5.13 Apply 3 tubes of P55/R Red Compound to the exposed cable insulation and hi-K stress control assembly tube.
Fill the bottom edge of the silicone rubber lug seal the the P55/R Red Compound. Do not apply P55/R Red
Compound to the surface of the lug seal insulator tube. (Figure 21)
Figure 20
Figure 21
12 78-8126-9537-3-B
