3M QT-III Quick Start Manual page 10

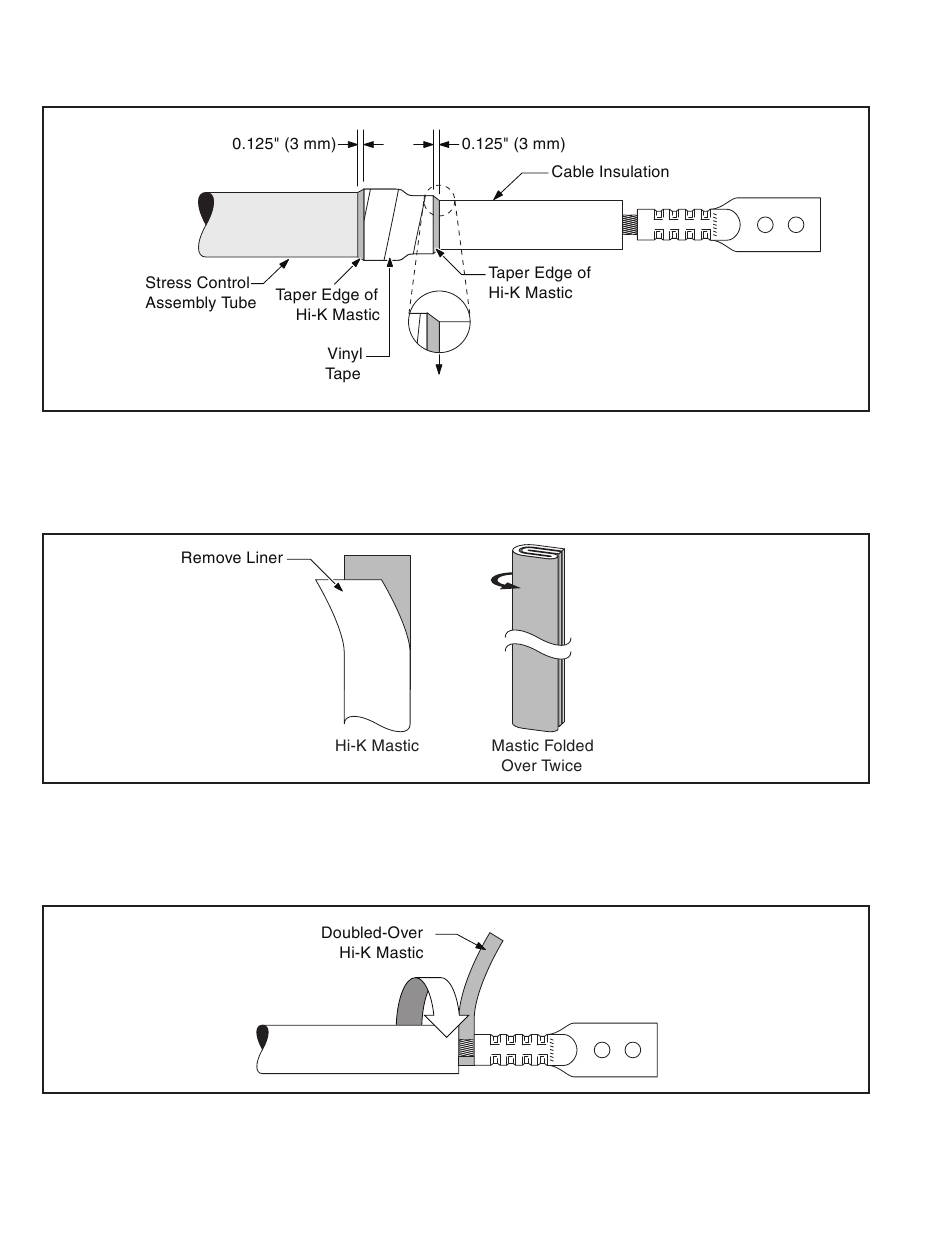

5.6 Wrap two half-lapped layers of highly-tensioned Scotch® Vinyl Electrical Tape Super 88 over the hi-K mastic,
leaving approximately 0.125" (3 mm) of mastic exposed at each end. Taper the exposed edges of the hi-K
mastic onto the cable by gently pressing along the edge with your finger. (Figure 14)
5.7 Select one or more of the 2" x 11" (50 mm x 280 mm) hi-K mastic strips from the kit. Remove the liner and
fold the mastic strip twice lengthwise to form a 0.5" (12 mm) wide strip. (Figure 15)
5.8 Wrap the mastic strip around the exposed conductor between the cable insulation and lug. Build the mastic up
to the insulation O.D. (Figure 16)
Figure 14
Figure 15
Figure 16
10 78-8126-9537-3-B
