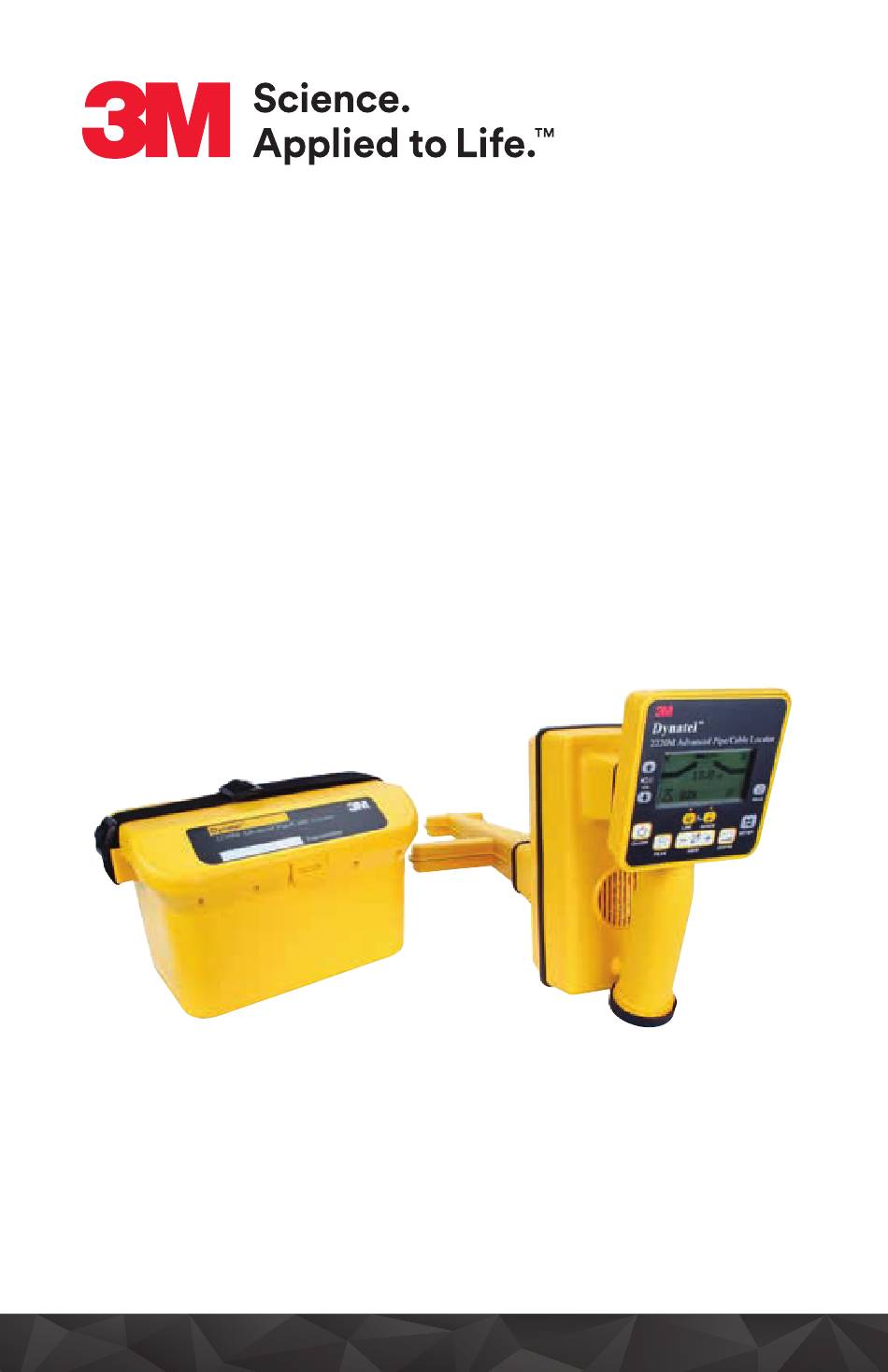

- Page 1 Dynatel Advanced ™ ™ Pipe/Cable Locator 2220M Operator Manual 2220M with 3-Watt Transmitter 2220M with 12-Watt Transmitter (U.S. and International versions) November 2016 78-9000-0021-3-D...
-
Page 3: Table Of Contents
Standard Equipment Packages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 Optional 3M Dynatel Accessories . -
Page 4: Safety Information
Advanced Pipe/Cable Locator 2220M Operator Manual . It has not been evaluated for other uses or locations . If this equipment is used in a manner not specified by 3M, the protections provided by the equipment may be impaired . -
Page 5: Introduction
78-9000-0021-3-D November 2016 Introduction Congratulations! You have just purchased one of the finest, most advanced locating devices available today! When you choose a quality 3M Dynatel Advanced Pipe/Cable Locator 2220M, you ™ ™ get outstanding performance and reliability. The 2220M locator with the 3-watt transmitter is an excellent instrument for tracing underground utilities . -
Page 6: Standard Equipment Packages
November 2016 78-9000-0021-3-D Standard Equipment Packages Model Number Included in Equipment Package 2220M-U3W 2220M Receiver 3 Watt Transmitter Direct Connect Cable (Utility size clip 5/8" [15 .8 mm]) Ground Rod RS232 Serial Port Cable RS232-to-USB Adapter Cable Operator Manual Carrying Bag 2220M-U3W-CPLR 2220M Receiver 3 Watt Transmitter... -
Page 7: Accessories
78-9000-0021-3-D November 2016 Optional 3M Dynatel Accessories ™ ™ • 3" (76 mm) Dyna-Coupler Clamp 3001 • 4 .5" (114 mm) Dyna-Coupler Clamp 4001 • 6" (150 mm) Dyna-Coupler Clamp 1196 • Coupler Cable 9011 • Direct Connect Leads (Small Telecom clips) 2892 •... -
Page 8: 12-Watt Transmitter Battery Installation
Output and High Output modes. Flag will flash over output icon on the LCD display when in High Output mode. No flag is present when in Normal Output mode . 4. Output Jack – Direct Connect and 3M Dynatel Dyna-Coupler ™... -
Page 9: 12-Watt Transmitter Overview
78-9000-0021-3-D November 2016 12-Watt Transmitter Overview Induction Direction ➐ Dynatel 2220M Frequency on on Output Level ➊ ➋ ➌ ➍ ➎ ➏ Power OFF / Battery Level Indicator – Press and hold . Display reads: “OK” with solid tone = good “LO”... -
Page 10: Receiver Battery Installation
November 2016 78-9000-0021-3-D 5. Output Jack – Direct Connect and 3M Dynatel Dyna-Coupler ™ ™ Clamp port . 6. External Jack - Port to connect cigarette lighter adapter cable or rechargeable battery (2200 RB) . Input voltage level: 9 - 18 VDC 7. - Page 11 • Ensure batteries are installed with the correct polarity . • Do not allow batteries to get wet . • Only use the supplied charger or purchase a new charger from 3M . • Only charge batteries in an indoor environment, with a temperature range of 0°C to 45°C (32°F to 113°F) .
-
Page 12: Receiver Overview
November 2016 78-9000-0021-3-D Receiver Overview ➊ ➒ ➍ ➎ ➋ ➑ ➌ ➏ ➐ Volume Control – Adjusts the volume of the receiver through three levels of audio and off. 2. Power Key – Powers the receiver on and off. 3. -
Page 13: Transmitter Operations
78-9000-0021-3-D November 2016 Transmitter Operations There are three different methods of applying the transmitter’s locating signal to the target conductor: Direct Connection, 3M Dynatel Dyna- ™ ™ Coupler Clamp, and Induction . Direct Connection This is the preferred mode of operation because the transmitter is connected directly to a metallic portion of the target conductor (hydrant, meter, riser, valve, sheath, or tracer wire) . -
Page 14: Direct Connection
November 2016 78-9000-0021-3-D Dynatel Dyna-Coupler Clamp ™ ™ If a direct connection to the target facility is not possible, use the Dyna-Coupler clamp to apply the locating frequency on the metallic target conductor . In order to trace a target using this method, both ends of the target must be well grounded . -
Page 15: Induction Method
78-9000-0021-3-D November 2016 Induction Method If you cannot make a direct connection, or use the 3M Dynatel ™ ™ Dyna-Coupler clamp to apply a locating signal on the target, use the induction method . This method uses the internal coil of the transmitter to generate a magnetic field. -
Page 16: Receiver Operations
Live or One-Shot One-Shot The setup function will allow you to enable or disable additional locating and sonde frequencies . Receiver Setup Any of the available frequencies of the 3M Dynatel Advanced ™ ™ Pipe/Cable Locator 2220M can be activated or deactivated . When a frequency is activated, a check mark will appear beside the frequency in the middle of the setup screen . - Page 17 78-9000-0021-3-D November 2016 Contrast Adjust Press the up or down arrows ( or ) to adjust the screen contrast . 512 Hz – Sonde frequency indicated by sonde icon . Press the down key to enable/ disable the frequency . A check mark will appear in the box when the frequency is enabled .
- Page 18 November 2016 78-9000-0021-3-D CATV – 31 .5 kHz indicated by line locate icon . Press the down key to enable/ disable the frequency . A check mark will appear in the box when the frequency is enabled . CPS – Cathodic Protection System–...
-
Page 19: Line Locating Screen
78-9000-0021-3-D November 2016 Depth Units Select the up (inch) or down (cm) key to select the preferred units of measure . The selection will appear in the box at the center of the screen . Information This screen provides important information including the product serial number, as well as the software and hardware versions... -
Page 20: Pipe And Cable Locating
November 2016 78-9000-0021-3-D Directional Peak icon Induction Peak icon Special (Single) Peak icon 4. Selected Line Locating Frequency – Displays the frequency the receiver will detect 5. Line Locating Icon – Indicates line locating mode vs . sonde mode 6. Battery Icon – Indicates battery level of receiver 7. -
Page 21: Depth And Current
78-9000-0021-3-D November 2016 Depth and Current To measure the depth of a target, place the tip of the receiver on the ground . Press the DEPTH key . The depth to the target conductor and the current will display for five seconds . -
Page 22: Sonde Locating Screen
November 2016 78-9000-0021-3-D Sonde Locating Screen ➊ ➏ ➋ ➌ ➐ ➍ ➎ Speaker Icon – Indicates audio level 2. Bar graph – Graphical representation of received signal 3. Antennae Icon – Indicates Special (Single) Peak mode 4. Selected Sonde Frequency – Toggles through activated sonde frequencies (512, 640, or 33 k) 5. - Page 23 78-9000-0021-3-D November 2016 Set the receiver to sonde mode by pressing the SONDE key until the frequency of the sonde appears on the locate screen . 2 . Holding the receiver perpendicular to the suspected path, walk the path until the receiver detects the first peak signal of the sonde. 3 .
-
Page 24: Specifications
November 2016 78-9000-0021-3-D Specifications Receiver Locating Modes Dual Peak w/Direction, Special (Single) Peak, Induction Peak, Depth & Current Gain Adjustment Automatic with Manual override Frequencies Active 8 kHz, 82 kHz Passive Power 50 Hz or 60 Hz Passive LF VLF 15 k – 30 kHz Passive CATV 31 .5 kHz * Cathodic Protection... - Page 25 78-9000-0021-3-D November 2016 Transmitter: 12-Watt Output Frequencies Trace Mode 8 kHz, 82 kHz Induction mode 8 kHz, 82 kHz Output voltage (max) Trace 60 Vrms Output Power, U-Model Normal setting: 0 .5 W (Direct Connection Method) High setting: 3 W @ 8 kHz, 1 W @ 82 kHz Output Power up to 12 Watts for the 12 Max setting: 12W @ 8 kHz, 1 W @ 82 kHz Watt Transmitter is achieved using the...
-
Page 26: Rechargeable Battery Information
November 2016 78-9000-0021-3-D Physical Specification Size (H x W x D) in (cm) Weight w/ alkaline batteries only : 5 .2 lb (2 .4 kg) 6 . 7 5 x 11 .25 x 7 . 7 5 w/ rechargeable battery and alkaline Transmitter (17 .2 x 28 .6 x 19 . -
Page 27: Locator Software Upgrades
2220M-Series Locator PC Tools x.x.x (EXE x.xMB). Once downloaded to your PC, double click the file and an auto-installer will install the PC Tool desktop software . Double click the Dynatel 2220M Series PC Tool kit icon on the desktop . Using the provided RS232 cable, or RS232-to- USB adapter cable, connect the RS232 port on the locator to the PC and turn the locator on . - Page 28 . pluggable and battery powered products. 3M is a trademark of 3M Company . All other trademarks are the property of their respective owners . Important Notice All statements, technical information, and recommendations related to 3M’s products are based on information believed to be reliable, but the accuracy or completeness is not guaranteed .
