Instructions and Parts List
3M
AccuGlide
™
NPH+ Taping Heads
2 Inch
Type 12400

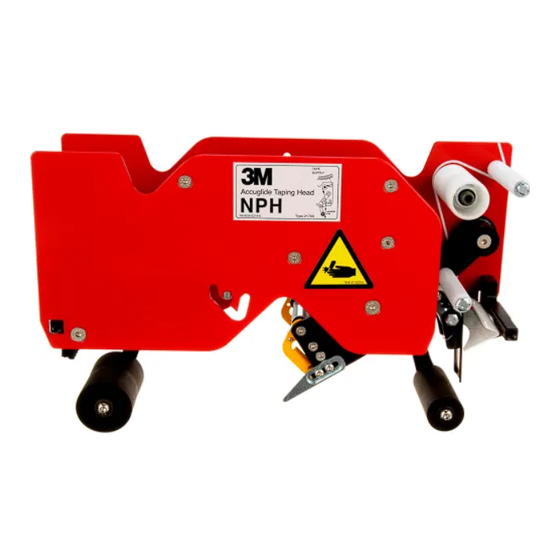

3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400
44-0009-2173-2
Serial #:
For reference, record machine serial number here.
Important Safety Information
BEFORE INSTALLING OR OPERATING THIS EQUIPMENT
Read, understand and follow all safety and operating instructions.
Spare Parts
It is recommended you immediately order the spare parts listed in the "Spare
Parts/Service Information" section. These parts are expected to wear through
normal use, and should be kept on hand to minimize production delays.
TM
1
NA - ENG
Jan 2024

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AccuGlide 12400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for 3M AccuGlide 12400

Summary of Contents for 3M AccuGlide 12400

  • Page 1 It is recommended you immediately order the spare parts listed in the “Spare Parts/Service Information” section. These parts are expected to wear through normal use, and should be kept on hand to minimize production delays. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2...

  • Page 2: Replacement Parts And Service Information

    There will be a 15% restocking fee per invoice on returned parts. Note: For replacement part information and ordering outside the U.S. contact the local 3M representative or subsidiary. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2...
  • Page 3 Order parts by part number, part description, and quantity required. Also, when ordering parts or additional manuals, include model/machine name, machine type, and serial number that are located on the identifi cation plate. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2...

  • Page 4: Table Of Contents

    Recommended Spare Parts Replacement Parts and Service Replacement Parts Illustrations and Parts List 19-End of Manual 3M-Matic™ Accuglide NPH+ 2 Inch Taping Head - Type 12400 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG NA - ENG...

  • Page 5: Equipment Warranty And Limited Remedy

    3M, at its option, will replace the equipment or refund the purchase price. 3M shall have no obligation to provide or pay for the labor required to remove any part or equipment or to install the repaired or replacement part or equipment. 3M shall have no...

  • Page 6: Intended Use

    The compact size and simplicity of the taping head also makes it suitable for mounting in box conveying systems other than 3M-Matic™ case sealers. This includes replacement of other types of taping, gluing or stapling heads in existing case sealing machines.

  • Page 7: Taping Head Contents / How To Use Manual

    Accuglide NPH+ (2 inch – Type 12400) 3M Industrial Specialties Division. 3M Center, Bldg. 220-5E-06 St. Paul, MN 55144-1000 (USA) Edition Jan 2024/ Copyright 3M 2024. All rights reserved. The manufacturer reserves the right to change the product at any time without notice.

  • Page 8: Important Safeguards

    The blades are extremely sharp. drive system is running (Important Safeguards continued on next page) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 9 See "Replacement Parts Illustrations and Parts Lists" for label part numbers. 78-0025-3817-7 Upper Taping Head 78-0025-3818-5 Lower Taping Head 78-8070-1336-8 78-8070-1335-0 Figure 1-1 Replacement Labels/3M Part Numbers NA - ENG 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 10: Specifications

    – 79.5mm [ 3 1/8 inches] (without mounting spacers) Weight – Packaged: 5.9kg [13.0 lbs.] Unpackaged: 4.8kg [10.5 lbs.] (Specifi cations continued on next page.) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 11: Dimensional Drawing

    Specifi cations (continued) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 12: Installation

    - Use proper body mechanics when removing or installing taping heads that are moderately heavy or may be considered awkward to lift. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 13: Operation

    Operation 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 14: Tape Loading - Upper Taping Head

    Figure 3-3 Assembly threaded in the same manner as the Tape Loading / upper head. Follow the upper taping head Threading tape loading/threading procedure. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 15 Figure 3-6 - Keep hands and fi ngers away from Tape Loading/ tape cutoff blades under orange blade Threading guards. The blades are extremely sharp. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 16: Maintenance

    The blades are extremely sharp. cloth. (maintenance continued on next page.) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 17: Cleaning

    - Never attempt to work on the taping tape cutoff blades under orange blade head or load tape while the box drive guards. The blades are extremely sharp. system is running. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 18: Adjustments

    - Never attempt to work on the taping head or load tape while the box drive system is running. (adjustments continued on next page.) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 19: Applying Mechanism Spring

    Adjusting Nut 0.5 - 0.9kg [1 - 2 lbs.] Figure 5-5 One-Way Tension Roller (adjustments continued on next page.) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 20: Troubleshooting Guide

    Taping Head not positioned Adjust Taping Head so there is properly less than 1/8" gap between case and upper assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 21 Tape not centered on box seam Centering guides not centered Adjust centering guides Box fl aps not of equal length Check box specifi cations (continued on next page) 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 22: Spare Parts/Service Information

    78-0025-0211-6 Spring - Lower (Black) Replacement Parts and Service Refer to the fi rst page of this instruction manual “Replacement Parts and Service Information". 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...

  • Page 23: Replacement Parts And Service

    Important – Not all the parts listed are normally stocked items. Some parts or assemblies shown are available only on a special order basis. Contact 3M/Tape Dispenser Parts to confi rm item availability. 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400...
  • Page 24 NPH+ 2" Taping Head Assembies - AccuGlide NPH+ 2 Inch ™ 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 25 NPH+ 2" Figure 23057 - Upper Taping Head / Applying Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 26 78-0025-391 6-7 Screw - M4X16 HHCS SS 1 5605-1 9 78-0025-391 7-5 Nut - M4 SS Figure 23057 - Upper Taping Head / Applying Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 27 NPH+ 2" Figure 23059 - Upper Taping Head / Buffing Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 28 78-0025-3869-8 Washer - M8X16X1. 5 SS 1 5606-1 1 78-0025-01 06-8 Spring - Upper (Black) Figure 23059 - Upper Taping Head / Buffing Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 29 NPH+ 2" Figure 23061 - Upper Taping Head / Blade Guard Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 30 Nut - M5 HH SS 1 5607-9 78-0025-391 8-3 Ring - E Clip 5mm Figure 123061 - Upper Taping Head / Blade Guard Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 31 NPH+ 2" Figure 23063- Upper Taping Head / Cutting Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 32 23053-1 5 78-0025-3884-7 Wing Nut and Shaft 23053-1 6 78-0025-391 5-9 Screw - M4X5 BHSHCS SS Figure 23063- Upper Taping Head / Cutting Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 33 NPH+ 2" Version 1 Full Assembly Figure 23065 - Upper Taping Head / Frame Assembly Version 2 Full Assembly "Little David" 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 34 Frame - Front (Upper)(LD) 15608-28 78-0025-3907-6 Frame - Tape Mount (Upper)(LD) 15608-29 Figure 23065 - Upper Taping Head / Frame Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 35 NPH+ 2" Figure 23067 - Upper and Lower Taping Head / Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 36 1 5609-3 78-0025-3834-2 Arm - Link 1 5609-4 78-0025-3852-4 Bolt - Shoulder M6 Threads Figure 23067 - Upper and Lower Taping Head / Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 37 NPH+ 2" Figure 23068 - Upper and Lower Taping Head / Taping Head Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 38 Nut - Self-Locking, M5 VC 15610-14 78-801 7-91 69-6 Nut - M18 x 1 Figure 23068 - Upper and Lower Taping Head / Taping Head Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 39 NPH+ 2" Figure 23058 - Lower Taping Head / Applying Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 40 78-0025-391 6-7 Screw - M4X16 HHCS SS 15709-19 78-0025-391 7-5 Nut - M4 SS Figure 23058 - Lower Taping Head / Applying Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 41 NPH+ 2" Figure 23060- Lower Taping Head / Buffi ng Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 42 78-0025-01 64-7 Washer - Friction Plastic 15706-11 78-0025-021 1 -6 Spring - Lower (Black) Figure 23060- Lower Taping Head / Buffi ng Arm Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 43 NPH+ 2" Figure 23062 - Lower Taping Head / Blade Guard Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 44 78-0025-3851 -6 Bolt - Shoulder M4 Threads 15707-9 78-0025-391 8-3 Ring - E Clip 5mm Figure 23062 - Lower Taping Head / Blade Guard Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 45 NPH+ 2" Version 1 Full Assembly Figure 23066 - Lower Taping Head / Frame Assembly Full Assembly Version 2 "Little David" 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
  • Page 46 15 708-28 78-0025-3912-6 Frame - Tape Mount (Lower)(LD) 15 708-29 78-0025-3913-4 Frame - Front (Lower)(LD) Figure 23066 - Lower Taping Head / Frame Assembly 3M™ AccuGlide™ NPH+ 2 Inch Taping Head - Type 12400 NA - ENG 44-0009-2173-2 Jan 2024...
