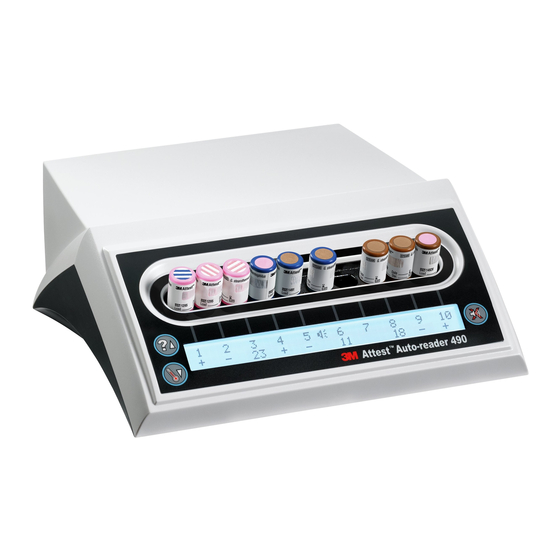

3M Attest 490 Operator's Manual
Auto-reader
Hide thumbs
Also See for Attest 490:
- Operator's manual (284 pages) ,
- Connectivity technical specifications (2 pages)
Table of Contents
Advertisement
3M
Attest
™
1 Operator's Manual
2 Manuel de l'utilisateur
3 Benutzerhandbuch
4 Manuale dell'operatore
5 Manual del usuario
5 Manual del operador
6 Bedieningshandleiding
7 Användarhandbok
8 Brugsvejledning
9 Brukerhåndbok
0 Käyttöopas
Auto-reader 490
™
- Manual do Utilizador
- Manual do Operador
= Εγχειρίδιο Χειριστή
H Instrukcja obsługi
F Příručka pro obsluhu
S Priročnik za uporabo
M Инструкция по эксплуатации
A Upute za korištenje
: Operatör Kılavuzu
I 操作指南
• ค ู ่ ม ื อ ปฏ ิ บ ั ต ิ ง าน
T 작업자 매뉴얼
Advertisement
Table of Contents
Related Manuals for 3M Attest 490
Summary of Contents for 3M Attest 490
- Page 1 Attest Auto-reader 490 ™ ™ 1 Operator’s Manual - Manual do Utilizador 2 Manuel de l’utilisateur - Manual do Operador 3 Benutzerhandbuch = Εγχειρίδιο Χειριστή 4 Manuale dell’operatore H Instrukcja obsługi 5 Manual del usuario F Příručka pro obsluhu 5 Manual del operador S Priročnik za uporabo 6 Bedieningshandleiding M Инструкция...
-
Page 2: Table Of Contents
Health and Safety Information ..........................3 Explanation of Product and Packaging Label Symbols ..................3 Specifications ................................4 Instructions for Use ..............................4 Features ..................................7 Care and Cleaning ..............................8 Troubleshooting Guide...............................8 Optional 3M™ Attest™ Auto‑reader 490 Web App ....................9 Troubleshooting the 3M™ Attest™ Auto‑reader 490 Web App ................12 Repair and Replacement ............................12... -
Page 3: Preface
WARRANTY The 3M™ Attest™ Auto‑reader 490 has a one year limited product warranty. The US warranty, remedy and limitations are described in the Price Quote form and in the Direct Price Pages. For countries outside of the US, any warranty is established by the subsidiary with responsibility for service of the 3M™... -
Page 4: Health And Safety Information
IEC 60825‑1 Ed. 1.2 (A2:2001) refers to mechanisms by which the 3M™ Attest™ Auto‑reader 490 may be controlled and not to the use of biological indicator controls. 3M™ Attest™ Super Rapid Readout Biological Indicator vial so it does not come in direct contact with chemical indicators or tape. -
Page 5: Specifications
AC grounded outlet. Wait 30 Minutes Before Using Once plugged in, allow a 30 minute warm‑up period before placing 3M™ Attest™ Super Rapid Readout Biological Indicators into the incubation wells. The C1 caution code will disappear when proper incubation temperature is reached. - Page 6 Note: If Buzzer Disabled is selected, and the changes accepted, the speaker icon ( ) will disappear from the LCD panel and the alarm will be disabled for all positive 3M™ Attest™ Super Rapid Readout Biological Indicators, error codes, and caution code alarm warnings.
- Page 7 Rapid Readout Biological Indicator i.e., the 3M™ Attest™ Super Rapid Readout not come in direct contact with chemical indicators or tape. Biological Indicator 1491 with a blue cap goes into a blue well and the 3M™ Attest™ Super Rapid Readout Biological Indicator 1492V with a brown cap goes into a brown well.
-
Page 8: Features
• The BI type configuration for wells 1‑5. • The BI type configuration for wells 6‑10. After either the + or – symbol is displayed, and the result is recorded, the 3M™ Attest™ Super Rapid Readout Biological Indicator can be removed from the well. The Press the information button twice and the 3M™ Attest™... -
Page 9: Care And Cleaning
TROUBLESHOOTING GUIDE In the event of an error code, unplug the 3M™ Attest™ Auto‑reader 490 and plug it back in to initiate the self‑diagnostic test. If error code re‑occurs, call for repair or replacement. The LCD Display panel will indicate detected malfunctions by displaying a caution or error code under affected BI wells. The audible alarm, if active, sounds and the LCD Display backlight flashes to alert the user to all caution (except C1) and error codes. -
Page 10: Optional 3M™ Attest™ Auto-Reader 490 Web App
– cable. Consult with your facility IT personnel for assistance with network connectivity. Users may connect to the 3M™ Attest™ Auto‑reader 490 Web App using a URL based 2012-02-22 13:33 upon either the 3M™ Attest™ Auto‑reader 490 serial number or the IP Address. To 100027 view the 3M™ Attest™... - Page 11 BI result is available. #2 1491 2012-01-2016:02:47 – The 3M™ Attest™ Auto‑reader 490 stores results for the last 100 incubated BIs on Using the BI History Page embedded software. The 3M™ Attest™ Auto‑reader 490 Web App History page provides a summary of these last 100 results.
- Page 12 Enable DHCP Default: setting is checked indicating the Web App will use the Dynamic IP address automatically assigned when the 3M™ Attest™ Auto‑reader 490 is connected to the network. Remove the check if you wish to use a Static IP address assigned by your facility IT.
-
Page 13: Troubleshooting The 3M™ Attest™ Auto-Reader 490 Web App
Issue Problem Solution Unable to access 3M™ Attest™ 3M™ Attest™ Auto‑reader 490 and/or Ensure 3M™ Attest™ Auto‑reader 490 Ethernet cable is connected to a live jack and that Auto‑reader 490 Web App on computer not connected to network. connection to 3M™ Attest™ Auto‑reader 490 is secure. networked computer Ensure computer is connected to network. - Page 14 Made in the U.S.A. by 3M Health Care © 2013, 3M. All rights reserved. 3M Deutschland GmbH EC REP 2510 Conway Ave. 3M and Attest are trademarks of 3M. Health Care Business St. Paul, MN 55144 Used under license in Canada. Carl-Schurz-Str. 1 1-800-228-3957...
