3M QT-III Quick Start Manual page 11

5.9 Apply additional wrap(s) of hi-K mastic (not folded) onto the cable insulation for 1" (25 mm) and taper the hi-
K mastic 2" (50 mm) onto the lug barrel. (Figure 17) When using a tapered barrel lug, extend the hi-K mastic
onto the barrel 2" (50 mm) past the tapered part of the barrel. (Figure 17)
5.10 Select the roll of Scotch® Silicone Rubber Tape 70 from the kit. Using moderate tension, wrap 2 half-lapped
layers of tape over the hi-K mastic, leaving approximately 0.125" (3 mm) of mastic exposed at each end.
Taper the exposed edges of the hi-K mastic onto the cable by gently pressing along the edge with your finger.
(Figure 18)
5.11 Apply 1 tube of P/55R Red Compound (non-silicone grease) 2" (50 mm) over the lug seal area and onto the
cable insulation for approximately 4 inches (100 mm). (Figure 19)
78-8126-9537-3-B

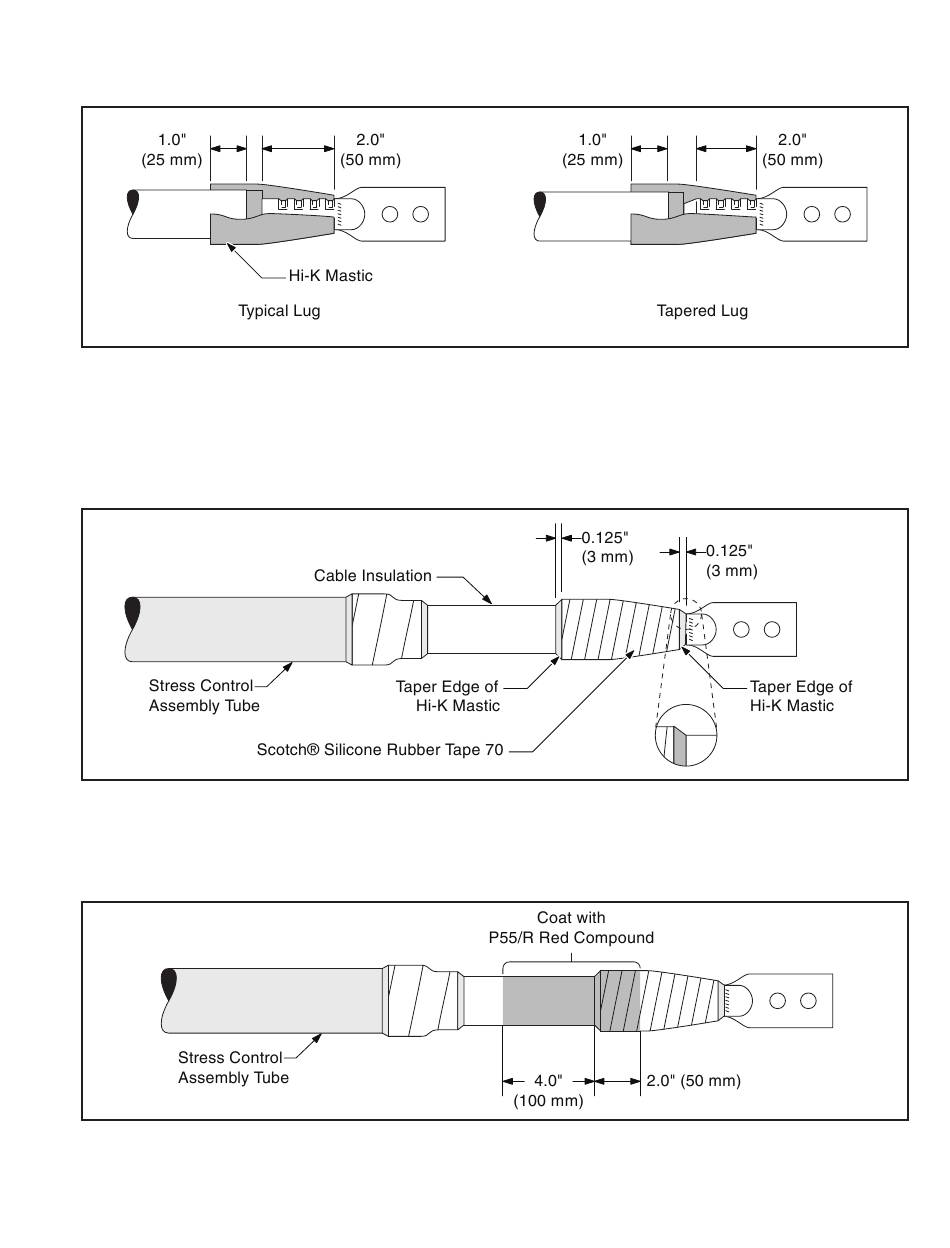

Figure 17
