4

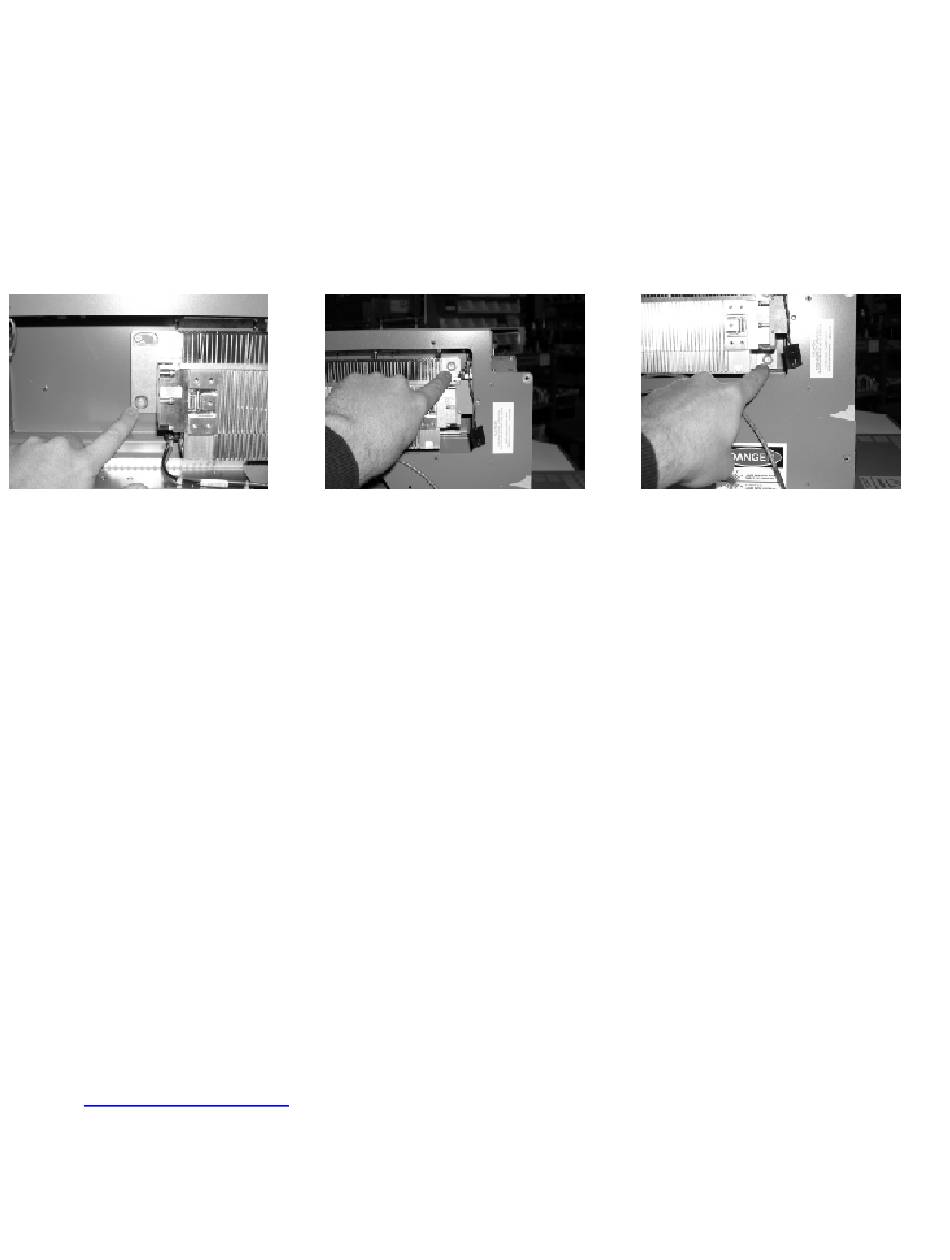

6. Now locate the Phillips head screw with the green ring around it located just up and to the left of
where you disconnected the 2 connections mentioned in steps 3 and 4. Using the Phillips head
screwdriver, loosen this screw until it stops. The screw will not drop out and is held to the bracket
with the green ring. (PIC 5)
7. Now locate the Phillips head screw with the green ring on the right side of the laser tube. There
is one on the top and one on the bottom. (PIC 6, 7) Loosen both of these until the screw stops.
5
6
7
8. The laser tube can now slide on the pin located above the green ringed Phillips head screw on
the left of the tube and the pin located to the left of the green ringed Phillips head screw on the
upper right side of the laser tube. This one will be hard to see as it located behind the cooling fins
of the laser tube. The laser tube now needs to slide to the left until it stops.
10. The laser can now be pulled free from the back of the machine.
11. You will need to remove the red and black wire power harness from the left side of the laser
tube and install it on the new laser tube. To do this, simply remove the 2 screws using the Phillips
head screwdriver that secure the power harness to the 2 terminals located on the left side of the
laser tube. Make sure the orientation of the black and red wires are the same when installing back
onto the new laser tube.
12. To install the new laser tube, simply reverse steps 10 back down to 1.
If you have any further questions regarding this procedure, please contact Epilog Technical
support at the following:
Phone 303-215-9171
Fax
303-531-7594
Email
