Main Components - TRAPP TRC-40 Instruction Manual

www.trapp.com.br
TRC-40
1
3
2
Image merely illustrative

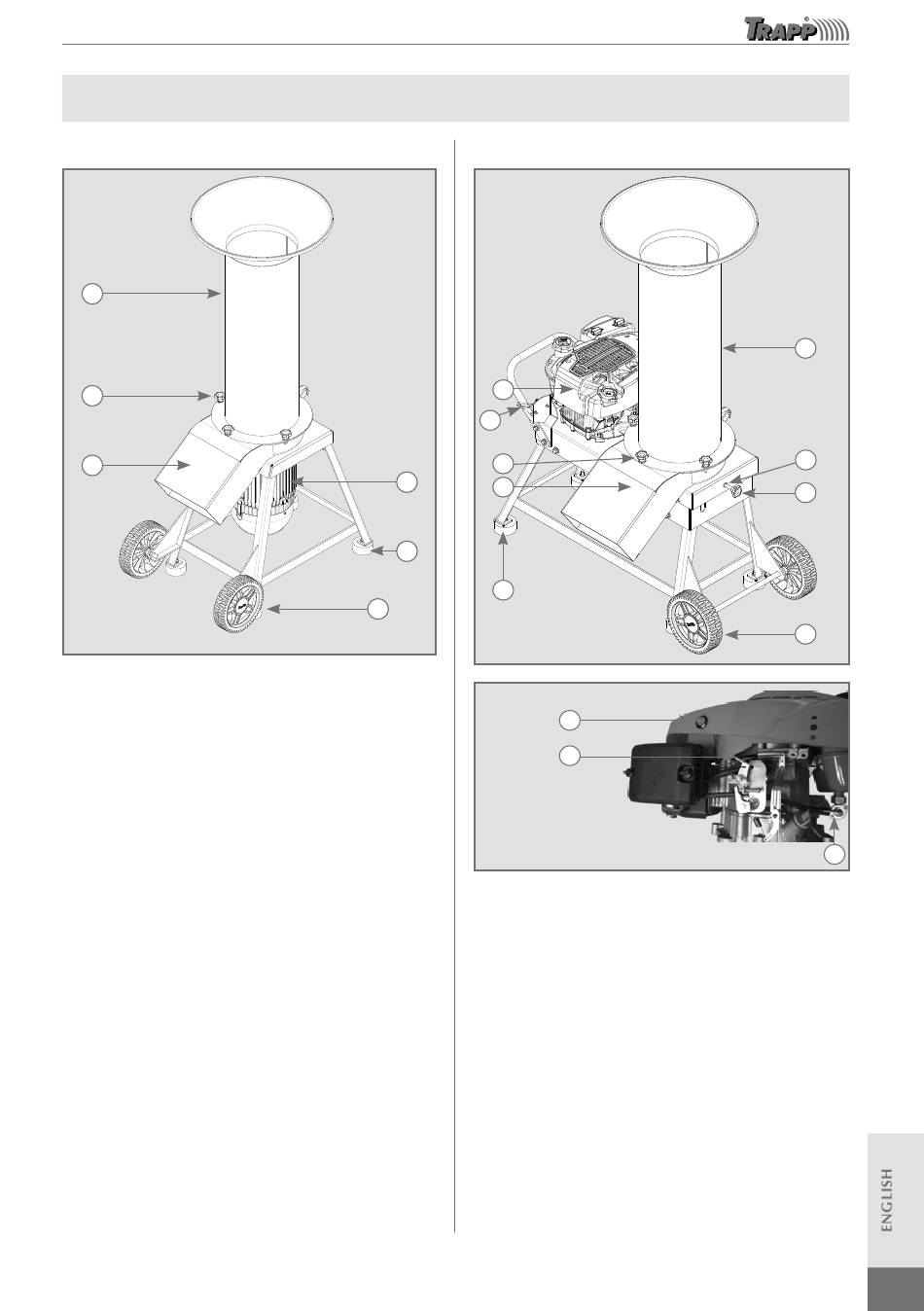

1. Feeding funnel
2. Material outlet spout
3. Handle to open the feeder
4. Electric motor
5. Wheel
6. Rubber cushion

Main Components

TRC-50
7
9
5
4
6
6
8
5
Image merely illustrative
Image merely illustrative
1. Feeding funnel
2. Belt stretcher hand wheel
3. Counter-nut the belt tensioner
4. Wheel
5. Handle to open the feeder
6. Material outlet spout
7. Gasoline engine
8. Rubber cushion
9. Throttle / power cut-off (Briggs & Stratton motor)
10. Power cut-off button (TRAPP / Lifan motor)
11. Throttle / Choke (TRAPP / Lifan motor)
12. Fuel valve (TRAPP / Lifan motor)
10
11
1
3
2
4
12
