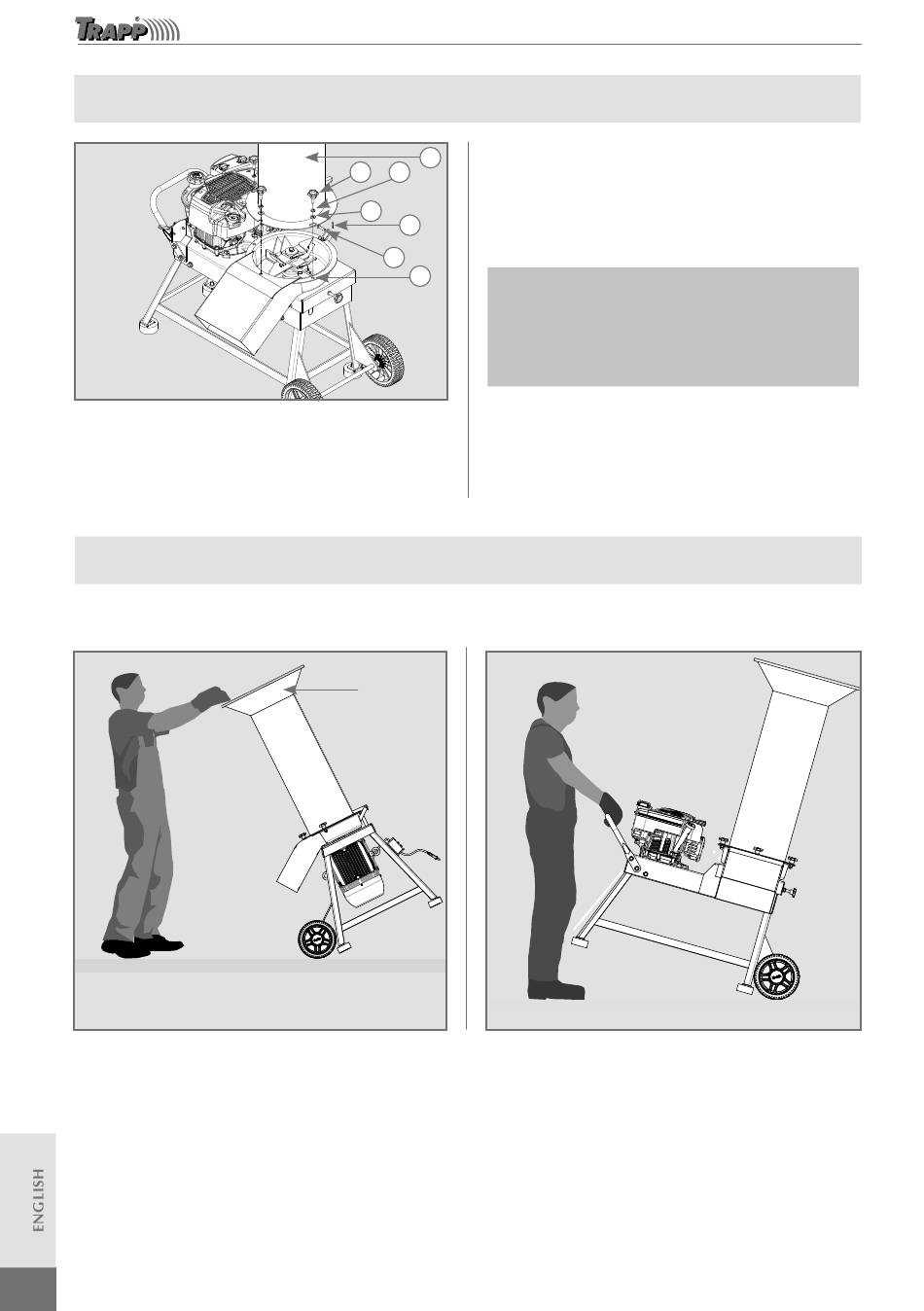

Attach the feeding funnel (1) in the body (2), pass

the locking pin (3) through the holes of the feeding
funnel (1) and the body (2).
TRC-40
Image merely illustrative
By means of the feeding funnel tilt the shredder to the right height for the operator (TRC-40).

Using the transport handle or the feed hopper handle, lift the crusher up to a maximum of 30 degrees (TRC-50).

Move the shredder to the point required and start the work.

38
Feeding Funnel Assembly
1
7 6
5
4
3
2
Moving the Coconut Crusher
Feeding
funnel
Fix the locking pin (3) with the cotter pin (4).

Then lock the feed hopper (1) using the plain washer

(5), the pressure washer (6) and the hand screw (7) in
each of the 3 holes to fasten the hopper to the body.
Note:
To avoid physical damage to the
equipment, never turn the equipment on if the
feed hopper is without the locking pin and the 3
hand screws.
TRC-50
Image merely illustrative
