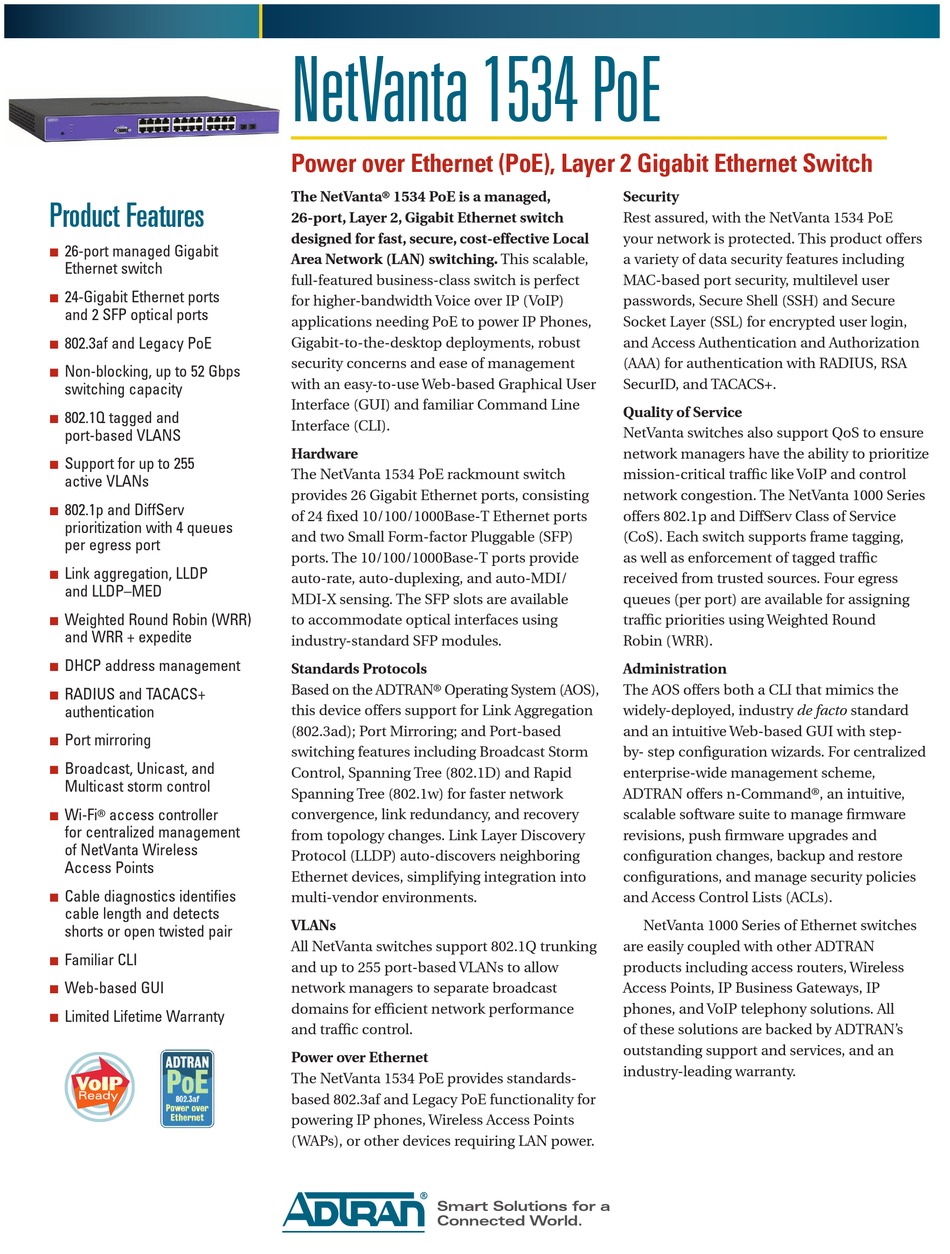

ADTRAN NetVanta 1534 PoE Specification Sheet

Product Features

26-port managed Gigabit
n
Ethernet switch
24-Gigabit Ethernet ports
n
and 2 SFP optical ports
802.3af and Legacy PoE
n
Non-blocking, up to 52 Gbps
n
switching capacity
802.1Q tagged and
n
port-based VLANS
Support for up to 255
n
active VLANs
802.1p and DiffServ
n
prioritization with 4 queues
per egress port
Link aggregation, LLDP
n
and LLDP–MED
Weighted Round Robin (WRR)
n
and WRR + expedite
DHCP address management
n
RADIUS and TACACS+
n
authentication
Port mirroring
n
Broadcast, Unicast, and
n
Multicast storm control
Wi-Fi access controller
®
n
for centralized management
of NetVanta Wireless
Access Points
Cable diagnostics identifies
n
cable length and detects
shorts or open twisted pair
Familiar CLI
n
Web-based GUI
n
Limited Lifetime Warranty
n
NetVanta 1534 PoE
Power over Ethernet (PoE), Layer 2 Gigabit Ethernet Switch
The NetVanta 1534 PoE is a managed,
®
26-port, Layer 2, Gigabit Ethernet switch
designed for fast, secure, cost-effective Local
Area Network (LAN) switching. This scalable,
full-featured business-class switch is perfect
for higher-bandwidth Voice over IP (VoIP)
applications needing PoE to power IP Phones,
Gigabit-to-the-desktop deployments, robust
security concerns and ease of management
with an easy-to-use Web-based Graphical User
Interface (GUI) and familiar Command Line
Interface (CLI).
Hardware
The NetVanta 1534 PoE rackmount switch
provides 26 Gigabit Ethernet ports, consisting
of 24 fixed 10/100/1000Base-T Ethernet ports
and two Small Form-factor Pluggable (SFP)
ports. The 10/100/1000Base-T ports provide
auto-rate, auto-duplexing, and auto-MDI/
MDI-X sensing. The SFP slots are available
to accommodate optical interfaces using
industry-standard SFP modules.
Standards Protocols
Based on the ADTRAN Operating System (AOS),
®
this device offers support for Link Aggregation
(802.3ad); Port Mirroring; and Port-based
switching features including Broadcast Storm
Control, Spanning Tree (802.1D) and Rapid
Spanning Tree (802.1w) for faster network
convergence, link redundancy, and recovery
from topology changes. Link Layer Discovery
Protocol (LLDP) auto-discovers neighboring
Ethernet devices, simplifying integration into
multi-vendor environments.
VLANs
All NetVanta switches support 802.1Q trunking
and up to 255 port-based VLANs to allow
network managers to separate broadcast
domains for efficient network performance
and traffic control.
Power over Ethernet
The NetVanta 1534 PoE provides standards-
based 802.3af and Legacy PoE functionality for
powering IP phones, Wireless Access Points
(WAPs), or other devices requiring LAN power.
Smart Solutions for a
Connected World.
Security
Rest assured, with the NetVanta 1534 PoE
your network is protected. This product offers
a variety of data security features including
MAC-based port security, multilevel user
passwords, Secure Shell (SSH) and Secure
Socket Layer (SSL) for encrypted user login,
and Access Authentication and Authorization
(AAA) for authentication with RADIUS, RSA
SecurID, and TACACS+.
Quality of Service
NetVanta switches also support QoS to ensure
network managers have the ability to prioritize
mission-critical traffic like VoIP and control
network congestion. The NetVanta 1000 Series
offers 802.1p and DiffServ Class of Service
(CoS). Each switch supports frame tagging,
as well as enforcement of tagged traffic
received from trusted sources. Four egress
queues (per port) are available for assigning
traffic priorities using Weighted Round
Robin (WRR).
Administration
The AOS offers both a CLI that mimics the
widely-deployed, industry de facto standard
and an intuitive Web-based GUI with step-
by- step configuration wizards. For centralized
enterprise-wide management scheme,
ADTRAN offers n-Command
scalable software suite to manage firmware
revisions, push firmware upgrades and
configuration changes, backup and restore
configurations, and manage security policies
and Access Control Lists (ACLs).
NetVanta 1000 Series of Ethernet switches
are easily coupled with other ADTRAN
products including access routers, Wireless
Access Points, IP Business Gateways, IP
phones, and VoIP telephony solutions. All
of these solutions are backed by ADTRAN's
outstanding support and services, and an
industry-leading warranty.
