KIT NO. 613087
36V TRANSAXLE REPLACEMENT KIT
INSTALLATION INSTRUCTIONS:
(Installation Time: 2 hours)
TOOLS REQUIRED: 7/16", 9/16", 11/16" Socket Wrench,
Small Flat Head Screwdriver and Snip Pliers.

1. Remove batteries from machine, 9/16"

wrench required.
FOR SAFETY: When servicing machine, wear
safety glasses and protective gloves when
handling batteries or battery cables. Avoid con-
tact with battery acid.

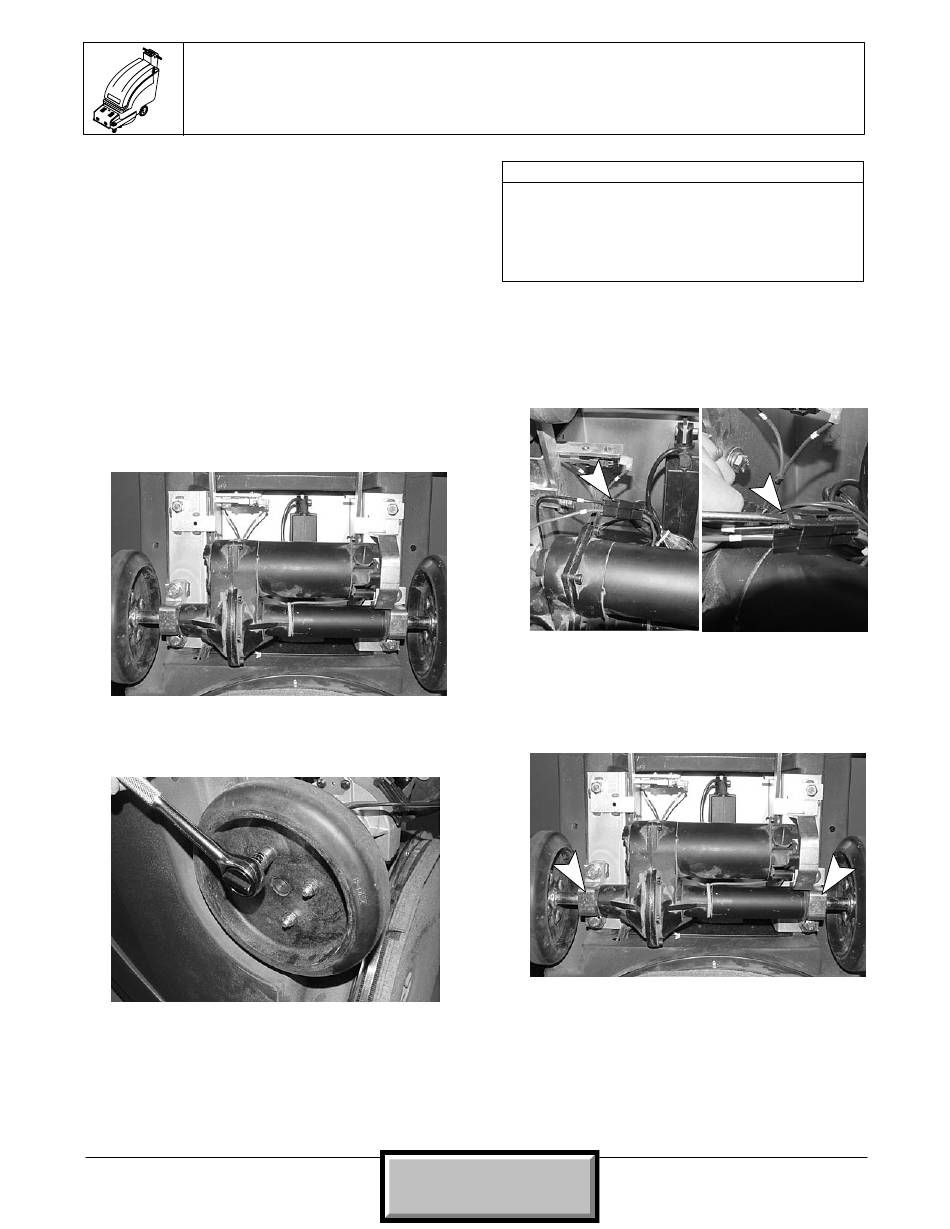

2. With adequate assistance, carefully turn
the machine upside down to access the
drive transaxle motor (Figure 1).
Fig. 1

3. Remove the wheels from the old transaxle,

7/16" socket wrench required (Figure 2).
Fig. 2
613088 Rev. 00 (02–02)

KIT CONTENTS

P/N.
Description
612845
TRANSAXLE, 36V MOTOR, 116 RPM 1
612908
ADAPTER, WIRE TRANSAXLE
140501
NUT, 1/4–20
602881
BRACKET, TRANSAXLE MOUNT
130040
WIRE TIE 6.0 x .12
4. Carefully cut the wire-tie that secures the
motor's wire harness, then unplug the wire
harness connector. Use a small flat head
screwdriver to disengage the connector
plug (Figure 3).
5. Remove the transaxle mounting brackets
and motor guard bracket,11/16" wrench re-
quired. Then remove the old transaxle from
the machine (Figure 4).
Tennant Company Commercial Products
Home
Page 1 of 2
Qty.
1
8
1
2
Fig. 3
Fig. 4
Printed in U.S.A
